Brass Pneumatic Hose Barbs for Tubing, Dubl-Barb
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's economical, one piece, Dubl-Barb® fittings are designed for quick assembly with polyethylene tubing without the use of a clamp. Because of the many available variations in qualities of polyethylene tubing, Dubl-Barb® fittings are recommended for use with Parker Parflex® polyethylene tubing (or an equal grade). Parker Parflex® tubing is highly resistant to environmental stress cracking which is necessary for long life when coupled with Dubl-Barb fittings. Assembly is simple, just cut tube squarely and push tube over the two barbs.
Use with Parker Parflex Division polyethylene tubing.
Markets:
• Pneumatic
• Environmental control
Features/Benefits
• All brass construction
• One piece
• Compact
• Excellent vibration resistance
• No clamp required
Applications:
• Climate control circuits
• Pneumatic systems
• Humidifiers
• Filters
• Test apparatus
Custom configurations and sizes are available upon request. Contact us for additional information.
| Action | SKU | Availability | Partner Available | Price | UOM | Connection 3 Style | Connection 3 Thread Size (inch) | Shape | Connection 2 Thread Size (inch) | Connection 1 Style | Style | Connection 1 Tube O.D. (inch) | Connection 2 Style | Connection 2 Tube O.D. (inch) | Body Material | Maximum Operating Pressure | Minimum Operating Temperature | Tube Material | Maximum Operating Temperature | Dimensional Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 225-4-5/32 | 4 in stock | 96 in stock | $11.71/each | EA | na | na | 90° Elbow | na | Barb | Tube to Tube | 1/4 | Barb | 5/32 | Brass | 150 psi | -53 °C | Polyethylene | 90 °F | ||
| 225-5/32 | Backordered | 129 in stock | $9.26/each | EA | na | na | 90° Elbow | na | Barb | Tube to Tube | 5/32 | Barb | 5/32 | Brass | 150 psi | -53 °C | Polyethylene | 90 °F | ||
| 225-6-6 | 360 in stock | 206 in stock | $7.38/each | EA | na | na | 90° Elbow | na | Barb | Tube to Tube | 3/8 | Barb | 3/8 | Brass | 10 bar | -65 °F | Polyethylene | 32 °C | 0.027338129496402876 lb | |
| 225-8-8 | 24 in stock | 64 in stock | $11.07/each | EA | na | na | 90° Elbow | na | Barb | Tube to Tube | 1/2 | Barb | 1/2 | Brass | 150 psi | -65 °F | Polyethylene | 32 °C | ||
| 22-6 | 147 in stock | 243 in stock | $3.34/each | EA | na | na | Union | na | Barb | Tube to Tube | 3/8 | Barb | 3/8 | Brass | 10 bar | -65 °F | Polyethylene | 90 °F | 0.06766187050359712 lb | |
| 22-6-8 | 1 Limited Stock | 1591 in stock | $5.11/each | EA | na | na | Union | na | Barb | Tube to Tube | 3/8 | Barb | 1/2 | Brass | 10 bar | -65 °F | Polyethylene | 90 °F | 0.11618705035971222 lb | |
| 22-8 | 8 in stock | 76 in stock | $5.40/each | EA | na | na | Union | na | Barb | Tube to Tube | 1/2 | Barb | 1/2 | Brass | 10 bar | -53 °C | Polyethylene | 90 °F | 0.10886726618705035 lb | |
| 228-4-2 | 36 in stock | Backordered | $19.48/each | EA | Male Pipe | 1/8 | Gauge Tee | 1/8 | Barb | Tube to Pipe | 1/4 | Male Pipe | na | Brass | 150 psi | -65 °F | Polyethylene | 32 °C | ||

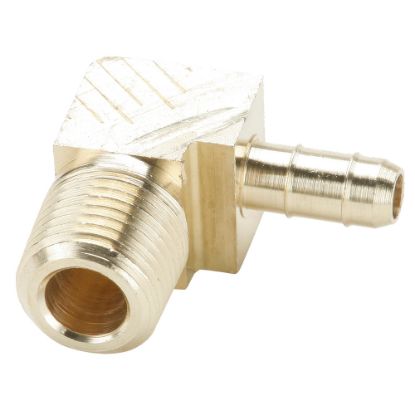

| 229-4-1 | Backordered | 220 in stock | $6.56/each | EA | na | na | 90° Elbow | 1/16 | Barb | Tube to Pipe | 1/4 | Male Pipe | na | Brass | 10 bar | -53 °C | Polyethylene | 90 °F | ||
| 229-4-2 | 333 in stock | 2325 in stock | $4.75/each | EA | na | na | 90° Elbow | 1/8 | Barb | Tube to Pipe | 1/4 | Male Pipe | na | Brass | 150 psi | -65 °F | Polyethylene | 90 °F | 0.027594424460431654 lb | |
| 229-4-4 | 29 in stock | 674 in stock | $5.81/each | EA | na | na | 90° Elbow | 1/4 | Barb | Tube to Pipe | 1/4 | Male Pipe | na | Brass | 10 bar | -65 °F | Polyethylene | 90 °F | 0.05518884892086331 lb | |

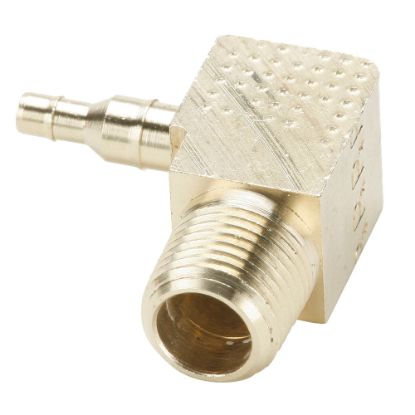

| 229-4-5/32-2 | Backordered | Backordered | $20.78/each | EA | Male Pipe | 1/8 | 90° Elbow | na | Barb | Tube to Pipe | 1/4 | Barb | 5/32 | Brass | 10 bar | -53 °C | Polyethylene | 90 °F | ||
| 229-5/32-2 | Backordered | 128 in stock | $11.78/each | EA | na | na | 90° Elbow | 1/8 | Barb | Tube to Pipe | 5/32 | Male Pipe | na | Brass | 150 psi | -53 °C | Polyethylene | 32 °C | ||
| 229-6-2 | 446 in stock | 259 in stock | $6.42/each | EA | na | na | 90° Elbow | 1/8 | Barb | Tube to Pipe | 3/8 | Male Pipe | na | Brass | 150 psi | -53 °C | Polyethylene | 32 °C | 0.027594424460431654 lb | |
| 229-6-4 | Backordered | 178 in stock | $9.53/each | EA | na | na | 90° Elbow | 1/4 | Barb | Tube to Pipe | 3/8 | Male Pipe | na | Brass | 150 psi | -65 °F | Polyethylene | 32 °C | 0.11037769784172662 lb | |
| 229-8-4 | Backordered | 29 in stock | $17.06/each | EA | na | na | 90° Elbow | 1/4 | Barb | Tube to Pipe | 1/2 | Male Pipe | na | Brass | 10 bar | -53 °C | Polyethylene | 32 °C | 0.27594424460431655 lb | |
| 229-8-6 | 1 Limited Stock | 49 in stock | $16.58/each | EA | na | na | 90° Elbow | 3/8 | Barb | Tube to Pipe | 1/2 | Male Pipe | na | Brass | 150 psi | -65 °F | Polyethylene | 32 °C | 0.11482014388489209 lb | |
| 22BH-4-4 | 86 in stock | 511 in stock | $10.85/each | EA | na | na | Bulkhead | na | Barb | Tube to Tube | 1/4 | Barb | 1/4 | Brass | 10 bar | -53 °C | Polyethylene | 32 °C | 0.05518884892086331 lb | |
| 22BH-6-6 | 300 in stock | 151 in stock | $12.98/each | EA | na | na | Bulkhead | na | Barb | Tube to Tube | 3/8 | Barb | 3/8 | Brass | 150 psi | -65 °F | Polyethylene | 32 °C | ||

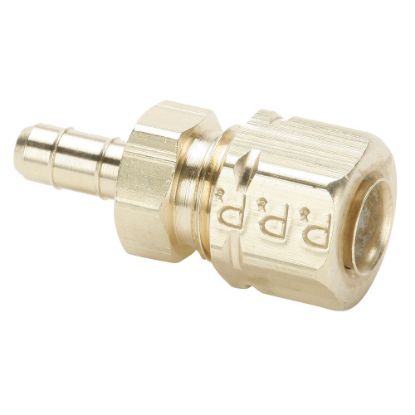

| 22CA-4-4 | 30 in stock | 63 in stock | $7.02/each | EA | na | na | Union | na | Barb | Tube to Compression | 1/4 | Compression | 1/4 | Brass | 10 bar | -53 °C | Polyethylene | 90 °F | 0.05518884892086331 lb |
