Brass Pneumatic Hose Barbs for Tubing, Dubl-Barb
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's economical, one piece, Dubl-Barb® fittings are designed for quick assembly with polyethylene tubing without the use of a clamp. Because of the many available variations in qualities of polyethylene tubing, Dubl-Barb® fittings are recommended for use with Parker Parflex® polyethylene tubing (or an equal grade). Parker Parflex® tubing is highly resistant to environmental stress cracking which is necessary for long life when coupled with Dubl-Barb fittings. Assembly is simple, just cut tube squarely and push tube over the two barbs.
Use with Parker Parflex Division polyethylene tubing.
Markets:
• Pneumatic
• Environmental control
Features/Benefits
• All brass construction
• One piece
• Compact
• Excellent vibration resistance
• No clamp required
Applications:
• Climate control circuits
• Pneumatic systems
• Humidifiers
• Filters
• Test apparatus
Custom configurations and sizes are available upon request. Contact us for additional information.
| Action | SKU | Availability | Partner Available | Price | UOM | Connection 3 Style | Connection 3 Thread Size (inch) | Shape | Connection 2 Thread Size (inch) | Connection 1 Style | Connection 2 Style | Connection 1 Tube O.D. (inch) | Connection 2 Tube O.D. (inch) | Style | Body Material | Maximum Operating Pressure | Minimum Operating Temperature | Dimensional Weight | Tube Material | Maximum Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 22CABH-4-4 | 4 in stock | 163 in stock | $11.64/each | EA | na | na | Bulkhead | na | Barb | Compression | 1/4 | 1/4 | Tube to Compression | Brass | 10 bar | -53 °C | 0.11037769784172662 lb | Polyethylene | 90 °F | |
| 22CABH-6-6 | 29 in stock | 43 in stock | $19.91/each | EA | na | na | Bulkhead | na | Barb | Compression | 3/8 | 3/8 | Tube to Compression | Brass | 150 psi | -53 °C | 0.11037769784172662 lb | Polyethylene | 32 °C | |

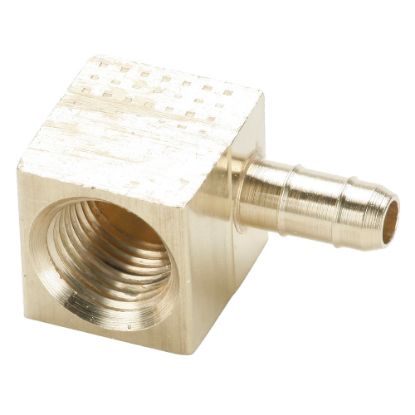

| 230-4-2 | 7 in stock | 70 in stock | $5.40/each | EA | na | na | 90° Elbow | 1/8 | Barb | Female Pipe | 1/4 | na | Tube to Female Pipe | Brass | 10 bar | -65 °F | 0.027594424460431654 lb | Polyethylene | 32 °C | |
| 230-6-4 | Backordered | 68 in stock | $11.37/each | EA | na | na | 90° Elbow | 1/4 | Barb | Female Pipe | 3/8 | na | Tube to Female Pipe | Brass | 10 bar | -53 °C | Polyethylene | 32 °C | ||

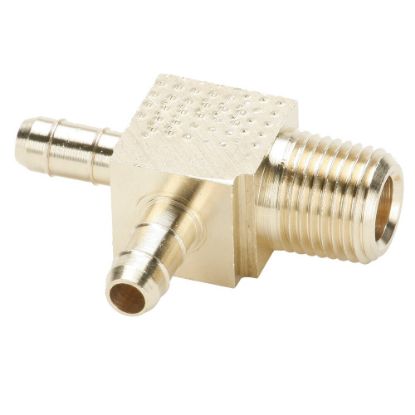

| 231-4-2 | Backordered | 46 in stock | $9.56/each | EA | na | na | Run Tee | 1/8 | Barb | Male Pipe | 1/4 | na | Tube to Pipe | Brass | 150 psi | -53 °C | 0.027594424460431654 lb | Polyethylene | 90 °F | |
| 231-6-2 | Backordered | 114 in stock | $12.77/each | EA | na | na | Run Tee | 1/8 | Barb | Male Pipe | 3/8 | na | Tube to Pipe | Brass | 10 bar | -65 °F | 0.05518884892086331 lb | Polyethylene | 90 °F | |
| 231-6-4 | Backordered | 27 in stock | $22.33/each | EA | na | na | Run Tee | 1/4 | Barb | Male Pipe | 3/8 | na | Tube to Pipe | Brass | 10 bar | -53 °C | Polyethylene | 90 °F | ||
| 232-4-1 | 13 in stock | 13 in stock | $22.17/each | EA | na | na | Branch Tee | 1/16 | Barb | Male Pipe | 1/4 | na | Tube to Pipe | Brass | 150 psi | -53 °C | Polyethylene | 90 °F | ||
| 232-4-2 | 11 in stock | 174 in stock | $10.58/each | EA | na | na | Branch Tee | 1/8 | Barb | Male Pipe | 1/4 | na | Tube to Pipe | Brass | 10 bar | -53 °C | 0.10886726618705035 lb | Polyethylene | 90 °F | |
| 232-6-2 | 28 in stock | 30 in stock | $11.54/each | EA | na | na | Branch Tee | 1/8 | Barb | Male Pipe | 3/8 | na | Tube to Pipe | Brass | 150 psi | -53 °C | 0.06014388489208634 lb | Polyethylene | 90 °F | |
| 232-6-4 | Backordered | 7 in stock | $10.66/each | EA | na | na | Branch Tee | 1/4 | Barb | Male Pipe | 3/8 | na | Tube to Pipe | Brass | 150 psi | -53 °C | Polyethylene | 90 °F | ||

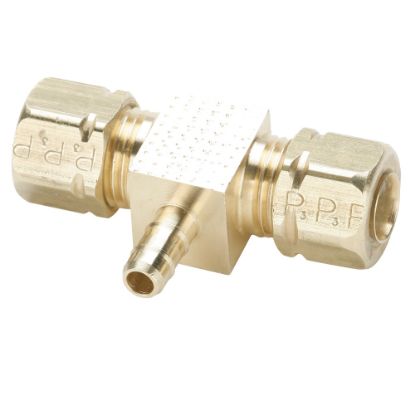

| 233-4-4-4 | 6 in stock | Backordered | $61.65/each | EA | na | na | Tee | na | Compression | Barb | 1/4 | 1/4 | Compression to Tube | Brass | 10 bar | -53 °C | Polyethylene | 90 °F | ||
| 233-6-6-4 | 8 in stock | Backordered | $59.29/each | EA | na | na | Tee | na | Compression | Barb | 3/8 | 1/4 | Compression to Tube | Brass | 150 psi | -65 °F | Polyethylene | 90 °F | ||

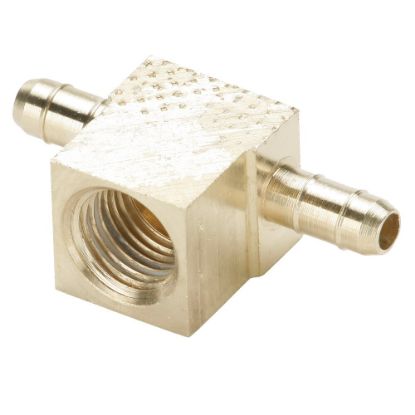

| 237-4-2 | 26 in stock | 12 in stock | $9.90/each | EA | na | na | Female Branch Tee | 1/8 | Barb | Female Pipe | 1/4 | na | Tube to Female Pipe | Brass | 10 bar | -53 °C | 0.11037769784172662 lb | Polyethylene | 90 °F | |
| 237-5/32-2 | 1 Limited Stock | 13 in stock | $20.92/each | EA | na | na | Female Branch Tee | 1/8 | Barb | Female Pipe | 5/32 | na | Tube to Female Pipe | Brass | 150 psi | -53 °C | Polyethylene | 32 °C | ||
| 238-4-4 | Backordered | 14 in stock | $4.49/each | EA | na | na | Connector | na | Barb | Solder | 1/4 | 1/4 | Tube to Solder | Brass | 10 bar | -65 °F | Polyethylene | 90 °F | ||

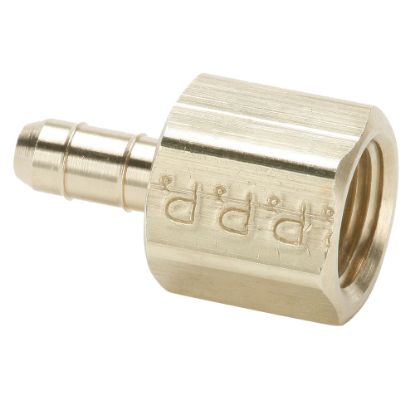

| 26-4-2 | 83 in stock | 2250 in stock | $5.69/each | EA | na | na | Connector | 1/8 | Barb | Female Pipe | 1/4 | na | Tube to Female Pipe | Brass | 150 psi | -65 °F | 0.027216816546762588 lb | Polyethylene | 90 °F | |
| 26-5/32-2 | Backordered | 12 in stock | $10.28/each | EA | na | na | Connector | 1/8 | Barb | Female Pipe | 5/32 | na | Tube to Female Pipe | Brass | 10 bar | -53 °C | Polyethylene | 32 °C | ||
| 26-6-2 | 4359 in stock | 1225 in stock | $6.85/each | EA | na | na | Connector | 1/8 | Barb | Female Pipe | 3/8 | na | Tube to Female Pipe | Brass | 10 bar | -53 °C | 0.10886726618705035 lb | Polyethylene | 90 °F | |
| 26-6-4 | 5 in stock | 45 in stock | $10.76/each | EA | na | na | Connector | 1/4 | Barb | Female Pipe | 3/8 | na | Tube to Female Pipe | Brass | 150 psi | -65 °F | 0.11037769784172662 lb | Polyethylene | 90 °F |
