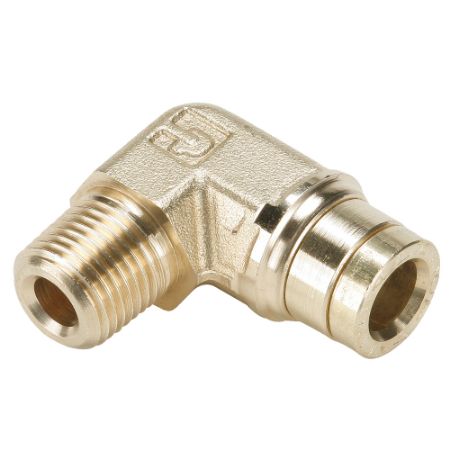

Brass Prestomatic Push to Connect DOT Fittings

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Being the world's leader in leak free technologies Parker's Prestomatic fitting is a robust, all brass push-to-connect air brake fitting that meets SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications, Parker Prestomatic fittings reduce assembly time versus compression style fittings by 90%. The innovative collet design ensures positive grip on the tubing and the rigid stainless steel tube support stays in place for superior side load leakage resistance.

Use SAE J844 Type A & B nylon tubing with Prestomatic fittings.

Markets:

• Heavy duty truck

• Trailer

• Mobile

• Rail

Features/Benefits:

• D.O.T. quick connect push-in fittings for repairing truck and trailer air brake lines

• For use in air brake systems on semi-trucks, trailers, buses, mobile equipment and farm implements

• Use in secondary air applications such as pneumatic doors for rail, air seats, shock absorbers and in cab instruments

• Meets performance requirements of D.O.T. FMVSS 571.106 and SAE J2494

• Stainless steel tube support assures maximum flow and performance requirements of SAE J2494-3

• All brass air brake fitting

• Quick connect push-in fitting for leak proof tube connections

• D.O.T. approved air brake fitting for servicing nylon brake and secondary air lines

• Quick connecting push-in fittings for servicing work by fleets, repair shops and farm implement dealers

Applications:

• Air brakes

• Air tanks

• Air ride

• Sliders

• Tire inflation

• Primary & secondary air lines

Custom configurations and sizes are available upon request. Contact us for additional information.

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Connection 1 Size	Connection 1 Type	Product Style	Connection 2 Size	Connection 3 Size	Connection 3 Type	Shape	Connection 2 Type	Minimum Operating Temperature	Body Material	Connection 2 Size	Maximum Operating Pressure	Shape	Maximum Operating Temperature	Connection 1 Type	Connection 1 Size	Connection 2 Type	Connection 3 Size	Configuration	Seal Material	Tube Material	Specifications Met	Materials of Construction
C8UPMTB6-M12	Backordered	Backordered	$35.35/each	EA	12 mm	Push-to-Connect	Tube to Pipe	M12x1.5	N/A	N/A	Rigid 90° Elbow	Male M12 Thread	-40 °C	Brass	n/a	250 psi	Elbow 90°	93 °C	Push-to-Connect	6 mm Tube O.D.	Metric	N/A	Tube to Pipe	Buna N (O-Ring)	Nylon Tubing SAE J844 Type A & B	DIN 74324	Brass (Collet)
C8UPMTB6-M16	Backordered	4 in stock	$76.14/each	EA	16 mm	Push-to-Connect	Tube to Pipe	M16x1.5	N/A	N/A	Rigid 90° Elbow	Male M16 Thread	-40 °C	Brass	M16x1.5 mm	250 psi	Straight	93 °C	Push-to-Connect	n/a	Metric	N/A	Tube to Pipe	Buna N (O-Ring)	Nylon Tubing SAE J844 Type A & B	DIN 74324	Brass (Collet)
F2PMTB10-1/4	Backordered	Backordered	$97.48/each	EA	10 mm	Push-to-Connect	Tube to Pipe	1/4 inch	N/A	N/A	Connector	Male Pipe Thread	-40 °F	Brass	n/a	250 psi	Connector	200 °F	Push-to-Connect	n/a	Male	N/A	Tube to Pipe	Buna N (O-Ring)	Stainless Steel	DIN 74324	Brass (Collet)
F2PMTB8-1/8	Backordered	1 Limited Stock	$46.20/each	EA	8 mm	Push-to-Connect	Tube to Pipe	1/8 inch	N/A	N/A	Connector	Male Pipe Thread	-40 °F	Brass	1/8 inch	250 psi	Connector	200 °F	Push-to-Connect	8 mm Tube O.D.	Pipe	N/A	Tube to Pipe	Buna N (O-Ring)	Stainless Steel	DIN 74324	Brass (Collet)
F8UPMTB10-M16	Backordered	Backordered	$97.29/each	EA	10 mm	Push-to-Connect	Tube to Pipe	M16x1.5	N/A	N/A	Connector	Male M16 Thread	-40 °F	Brass	M16x1.5 mm	250 psi	Connector	200 °F	Push-to-Connect	10 mm Tube O.D.	Metric	N/A	Tube to Pipe	Buna N (O-Ring)	Nylon Tubing SAE J844 Type A & B	DIN 74324	Brass (Collet)
F8UPMTB10-M22	Backordered	Backordered	$99.11/each	EA	10 mm	Push-to-Connect	Tube to Pipe	M22x1.5	N/A	N/A	Connector	Male M22 Thread	-40 °F	Brass	n/a	17 bar	Connector	93 °C	Push-to-Connect	n/a	Metric	N/A	Tube to Pipe	Buna N (O-Ring)	Nylon Tubing SAE J844 Type A & B	DIN 74324	Brass (Collet)
F8UPMTB12-M12	Backordered	Backordered	$36.96/each	EA	12 mm	Push-to-Connect	Tube to Pipe	M12x1.5	N/A	N/A	Connector	Male M12 Thread	-40 °C	Brass	n/a	17 bar	Straight	200 °F	Push-to-Connect	12 mm Tube O.D.	Metric	N/A	Tube to Pipe	Buna N (O-Ring)	Nylon Tubing SAE J844 Type A & B	DIN 74324	Brass (Collet)
F8UPMTB12-M22	Backordered	Backordered	$33.32/each	EA	12 mm	Push-to-Connect	Tube to Pipe	M22x1.5	N/A	N/A	Connector	Male M22 Thread	-40 °F	Brass	M22x1.5 mm	17 bar	Connector	200 °F	Push-to-Connect	n/a	Metric	N/A	Tube to Pipe	Buna N (O-Ring)	Nylon DIN 73378	DIN 74324	Brass (Collet)
F8UPMTB16-M22	Backordered	Backordered	$49.10/each	EA	16 mm	Push-to-Connect	Tube to Pipe	M22x1.5	N/A	N/A	Connector	Male M22 Thread	-40 °C	Brass	M22x1.5 mm	250 psi	Connector	200 °F	Push-to-Connect	16 mm Tube O.D.	Metric	N/A	Tube to Pipe	Buna N (O-Ring)	Stainless Steel	DIN 74324	Brass (Collet)
F8UPMTB6-M10	Backordered	Backordered	$29.40/each	EA	10 mm	Push-to-Connect	Tube to Pipe	M10x1	N/A	N/A	Connector	Male M10 Thread	-40 °C	Brass	M10x1.0 mm	250 psi	Connector	200 °F	Push-to-Connect	6 mm Tube O.D.	Metric	N/A	Tube to Pipe	Buna N (O-Ring)	Nylon Tubing SAE J844 Type A & B	DIN 74324	Brass (Collet)
F8UPMTB6-M12	Backordered	1 Limited Stock	$27.19/each	EA	12 mm	Push-to-Connect	Tube to Pipe	M12x1.5	N/A	N/A	Connector	Male M12 Thread	-40 °C	Brass	n/a	17 bar	Straight	200 °F	Push-to-Connect	n/a	Metric	N/A	Tube to Pipe	Buna N (O-Ring)	Nylon Tubing SAE J844 Type A & B	DIN 74324	Brass (Collet)
F8UPMTB6-M22	Backordered	Backordered	$29.00/each	EA	22 mm	Push-to-Connect	Tube to Pipe	M22x1.5	N/A	N/A	Connector	Male M22 Thread	-40 °C	Brass	n/a	250 psi	Straight	93 °C	Push-to-Connect	6 mm Tube O.D.	Metric	N/A	Tube to Pipe	Buna N (O-Ring)	Stainless Steel	DIN 74324	Brass (Collet)
F8UPMTB8-M16	Backordered	Backordered	$38.94/each	EA	16 mm	Push-to-Connect	Tube to Pipe	M16x1.5	N/A	N/A	Connector	Male M16 Thread	-40 °F	Brass	n/a	250 psi	Connector	200 °F	Push-to-Connect	n/a	Metric	N/A	Tube to Pipe	Buna N (O-Ring)	Nylon Tubing SAE J844 Type A & B	DIN 74324	Brass (Collet)
HPMTB10	Backordered	5 in stock	$83.65/each	EA	10 mm	Push-to-Connect	Tube to Tube	10 mm	N/A	N/A	Union	Push-to-Connect	-40 °C	Brass	10 mm Tube O.D.	17 bar	Union	200 °F	Push-to-Connect	10 mm Tube O.D.	Push-to-Connect	N/A	Tube to Tube	Buna N (O-Ring)	Stainless Steel	DIN 74324	Brass (Collet)
HPMTB12	Backordered	Backordered	$40.91/each	EA	12 mm	Push-to-Connect	Tube to Tube	12 mm	N/A	N/A	Union	Push-to-Connect	-40 °C	Brass	n/a	250 psi	Union	200 °F	Push-to-Connect	n/a	Push-to-Connect	N/A	Tube to Tube	Buna N (O-Ring)	Stainless Steel	D.O.T. FMVSS 571.106	Brass (Collet)
HPMTB6	Backordered	20 in stock	$44.21/each	EA	6 mm	Push-to-Connect	Tube to Tube	6 mm	N/A	N/A	Union	Push-to-Connect	-40 °F	Brass	n/a	250 psi	Union	200 °F	Push-to-Connect	6 mm Tube O.D.	Push-to-Connect	N/A	Tube to Tube	Buna N (O-Ring)	Stainless Steel	DIN 74324	Brass (Collet)
HPMTB8	Backordered	Backordered	$57.28/each	EA	8 mm	Push-to-Connect	Tube to Tube	8 mm	N/A	N/A	Union	Push-to-Connect	-40 °C	Brass	8 mm Tube O.D.	250 psi	Union	93 °C	Push-to-Connect	n/a	Push-to-Connect	N/A	Tube to Tube	Buna N (O-Ring)	Stainless Steel	DIN 74324	Brass (Collet)
JPMTB12	Backordered	Backordered	$56.16/each	EA	12 mm	Push-to-Connect	Tube to Tube	12 mm	12 mm	Push-to-Connect	Tee	Push-to-Connect	-40 °F	Brass	n/a	17 bar	Tee	200 °F	Push-to-Connect	12 mm Tube O.D.	Push-to-Connect	N/A	Tube to Tube	Buna N (O-Ring)	Nylon DIN 73378	DIN 74324	Brass (Collet)
JPMTB12-12-6	Backordered	Backordered	$100.86/each	EA	12 mm	Push-to-Connect	Tube to Tube	12 mm	6 mm	Push-to-Connect	Tee	Push-to-Connect	-40 °F	Brass	6 mm Tube O.D.	17 bar	Tee	200 °F	Push-to-Connect	n/a	Push-to-Connect	N/A	Tube to Tube	Buna N (O-Ring)	Nylon Tubing SAE J844 Type A & B	DIN 74324	Brass (Collet)
JPMTB6	Backordered	Backordered	$68.37/each	EA	6 mm	Push-to-Connect	Tube to Tube	6 mm	6 mm	Push-to-Connect	Tee	Push-to-Connect	-40 °C	Brass	n/a	250 psi	Tee	200 °F	Push-to-Connect	n/a	Push-to-Connect	N/A	Tube to Tube	Buna N (O-Ring)	Nylon Tubing SAE J844 Type A & B	DIN 74324	Brass (Collet)
