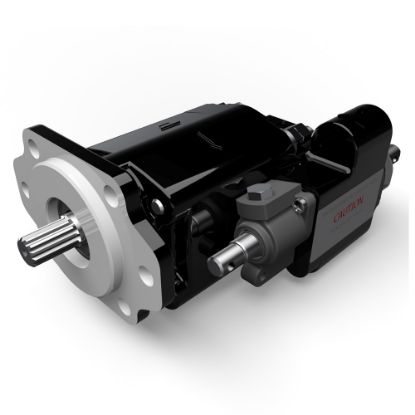

Cast Iron Pumps – G101/G102 Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker’s G101/G102 fixed displacement gear pumps offer high performance and high endurance due to its cast iron construction, making it an ideal selection for the Vocational & Municipal Equipment market. It is available as a standard pump with integrated valve for raising and lower dump beds, with integral relief valve.

Markets:
• Vocational & Municipal Equipment

Features/Benefits:
• Three-piece cast iron construction for distribution flexibility
• Durable high-strength cast iron body for excellent power to weight ratio
• Cast Iron construction for durability
• Balanced Thrust Plates minimize friction and leakage
• Roller bearings for durability

Applications:
• Dump Truck
• Dump Trailer

Technical Specifications:
• Flow is 16.9 gpm (64 lpm)
• Displacement is 3.94 cir (64.6 cc/rev)
• Operating pressures up to 172 bar (2,500 psi)
• Speeds up to 2,400 rpm
• Volumetric efficiencies up to 94%
• CW, CCW, and Bi-rotational pumps available
• SAE shafts, flanges and porting
• Integrated relief valve and load hold valve
• Integrated raise/neutral/lower valve
• Air shift valve available

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Rotation	Configuration	Additional Options	Filter Included	Port Connection	Flow Rate	Maximum Fluid Temperature	Media	Weight	Port Type	Pump Type	Shaft Type	Sensor Type	Circuit Path	Displacement	Drain Option	Body Material	Configuration	Port Location	Seal Material	Control Method	For Fluid Type	Shaft Diameter	Maximum Flow Rate	Operating Pressure	Maximum Noise Level	Charge Pump Included	Maximum Displacement	Radial Load Capacity	Direction of Rotation	Inlet Connection Size	Thru-Drive Capability	Outlet Connection Size	Maximum Operating Speed	Minimum Fluid Temperature	Energy Recovery Capability	Maximum Operating Pressure	Maximum Kinematic Viscosity	Minimum Kinematic Viscosity
3089310047	Backordered	21 in stock	$1,017.62/each	EA	BI	4 BOLT SQUARE, SAE B / ANSI 101-4	No Air Shift	No	NPT	n/a	180 °F	n/a	20.4 kg (Max)	Tapered Thread	Fixed	SAE	n/a	Open	up to 3.9 inch3/rev	No	Cast Iron (Grey)	Single	Rear Ports	TEFLON	n/a	Phosphate-ester	1 inch	n/a	up to 172 bar	n/a	No	64 cm3/rev	n/a	Clockwise	NPT	No	NPT 3/4 inch (Tank-plugged)	2400 RPM	-20 °C	No	2500 psi	7500 SUS	50 SUS
3089310416	Backordered	Backordered	$1,017.62/each	EA	CW	4 BOLT SQUARE, SAE B / ANSI 101-4	No Air Shift	No	NPT	n/a	80 °C	n/a	20.4 kg (Max)	Tapered Thread	Fixed	SAE	n/a	Open	up to 3.9 inch3/rev	No	Cast Iron (Grey)	Single	Rear Ports	Buna-N	n/a	Phosphate-ester	7/8 inch	n/a	up to 2500 psi	n/a	No	3.9 inch3/rev	n/a	Bi-Rotational	1-1/4 inch	No	NPT 3/4 inch (Tank-plugged)	2400 RPM	0 °F	No	172 bar	7500 SUS	50 SUS
3089310418	Backordered	16 in stock	$1,017.62/each	EA	CCW	4 BOLT SQUARE, SAE B / ANSI 101-4	No Air Shift	No	NPT	n/a	180 °F	n/a	45 lb (Max)	Tapered Thread	Gear	SAE	n/a	Open	up to 3.9 inch3/rev	No	Cast Iron	Single	Rear Ports	Buna-N	n/a	Standard Hydraulic Fluids	7/8 inch	n/a	up to 2500 psi	n/a	No	64 cm3/rev	n/a	Counterclockwise	NPT	No	NPT 3/4 inch (Cylinder)	2400 RPM	0 °F	No	172 bar	7500 SUS	50 SUS
3089310905	Backordered	22 in stock	$1,161.12/each	EA	CCW	4 BOLT SQUARE, SAE B / ANSI 101-4	Air Shift Installed	No	NPT	n/a	80 °C	n/a	20.4 kg (Max)	Tapered Thread	Fixed	SAE	n/a	Open	up to 64 cm3/rev	No	Cast Iron	Single	Rear Ports	Buna-N	n/a	Phosphate-ester	7/8 inch	n/a	up to 172 bar	n/a	No	3.9 inch3/rev	n/a	Bi-Rotational	1-1/4 inch	No	NPT 3/4 inch (Tank-plugged)	2400 RPM	0 °F	No	172 bar	7500 SUS	50 SUS
