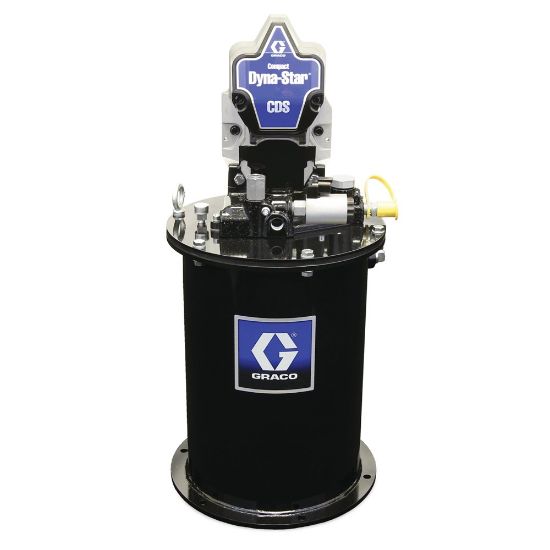

CD1312

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU CD1312

$5,880.50/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Pressure Reporting Maximum Signal	5 VDC
Maximum Working Pressure	3500 psi	Maximum Input Amperage	10 A
Pressure Reporting Minimum Signal	1 VDC	Weight	66 lb
Pressure Reporting Transducer Full Range	5000 psi	Level Reporting Sensor Maximum Signal	10 VDC
Maximum Continuous Cycle Rate	64 CPM	Maximum Operating Temperature	149 deg F
Maximum Fluid Output Pressure	3500 PSI	Vent Valve Maximum Operating Current	2 A
Component Technology	Brushless Electric Motor;Shovel-loading pump tube	Lower Type	Shovel
Power Connection Type	Deutsch DT04-12PB Housing	Overall Depth	13.9 Inch
Voltage	24 VDC	Sound Power Level	<80 dB(A)
Maximum Voltage	30 VDC	Approvals	CE;RCM
Control Options	Integrated electrical motor controller	Motor Type	Brushless DC
Maximum cST Grade	NLGI #2 Grease cST	Power Rating	0.25 HP
Minimum Operating Temperature	-40 deg F	Maximum Cycle Rate	64 CPM
Minimum Voltage	18 VDC	Reservoir Material	Steel
Low Level Carry Current	0.02 A	Overall Height	39.0 Inch
Throat Seal Type	Hythane 181	Fluid Outlet Thread Gender	Female
Fluid Outlet Size	3/8 NPT and/or 1/4 NPT Inch	Number of Pump Elements	1
Low Level Switch Rating	24 VDC	Maximum NLGI Grade	2
Reservoir Size	12 L	Overall Width	11.5 Inch
IP Rating	IP69K	Fluid Outlet Thread Type	Tapered Pipe Thread (NPT)
