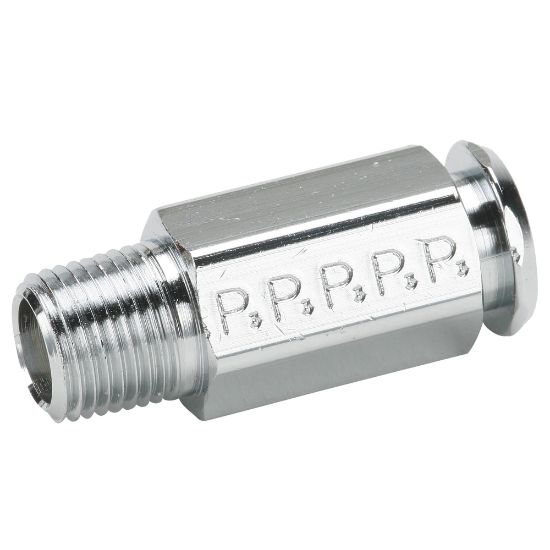

391P-4-2 - Chrome plated brass couplers for thermoplastic and soft metal tubing, Poly-tite

Name: 391P-4-2 - Chrome plated brass couplers for thermoplastic and soft metal tubing, Poly-tite
SKU: 391P-4-2
Price: 30.26 USD
Availability: InStock

Parker's Poly-Tite couplers offer an acetal copolymer sleeve that has superior resilience to resist creeping and stress caused from compression.

Availability:

12 in stock

Olivette, MO

Partner Available:

143 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 391P-4-2

$30.26/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size (inch)	1/8
Connection 2 Tube O.D. (inch)	na	Connection 1 Tube O.D. (inch)	1/4
Connection 2 Style	Male Pipe	Body Material	Chrome Plated Brass
Shape	Coupler Body	Style	Plug-in stem to Pipe
Connection 1 Style	Plug-in Stem	Connection 2 Insert Diameter (inch)	na
Maximum Operating Temperature	150 °F	Minimum Operating Temperature	0 °F
Maximum Operating Pressure	10 bar	Dimensional Weight	0.5518884892086331 lb
Tube Material	Polyethylene, Nylon, Polypropylene, Vinyl	O-Ring Material	Buna N
Nut Material	Chrome Plated Brass	Body Material	Chrome Plated Brass
Sleeve Material	Acetal Copolymer
