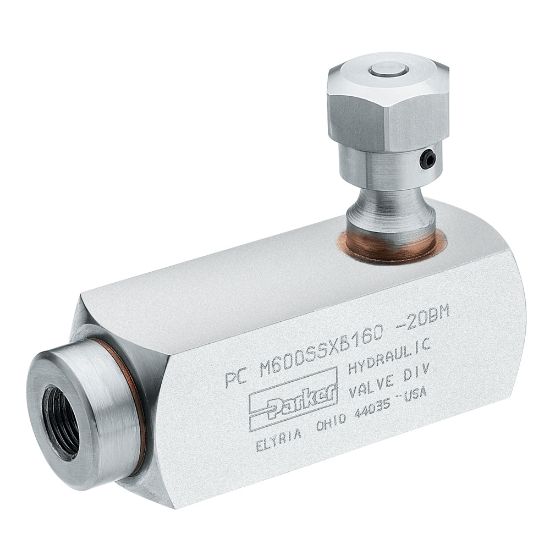

PCCM1620S - Colorflow In-Line Pressure Compensated Valve - PC*M Series

Parker’s Colorflow PC*M series in-line pressure compensated valves regulate flow at a selected rate within 5% regardless of fluctuations in inlet and outlet flow. This hydraulic flow control valve can be used within a variety of applications.

Availability:	Backordered Estimated Lead Time: 106 days
Partner Available:	3 in stock

SKU PCCM1620S

$1,190.40/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	SAE
Mounting Type	In-line	Maximum Flow Rate	50
Maximum Operating Pressure	3000 PSI	Connection Size	16 SAE
Minimum Operating Temperature	-40 °F	Body Material	Steel
Maximum Operating Pressure	3000 psi	Seal Material	Nitrile
Maximum Flow Rate	50 Gal/min	Media	Oil
Maximum Pressure Setting	n/a	Function	Pressure Compensated Flow Control
Reverse Check	Check	Knob Style	Standard Knob
Actuation Type	Hydraulic	Maximum Operating Temperature	+250 °F
Mounting Type	In-Line	Connection Type	Female - Female
Connection Size	16	Configuration	Female - Female
