7219-2500025 - E-Z Form MP Oil Resistant Flexible Suction Hose, Multipurpose, Series 7219

E-Z Form MP Greek Corrugated Multipurpose Oil Resistant Suction Hose is an extremely flexible hose designed for refined fuels and oil transfer in applications to 250°F and 75 psi, Series 7219

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	319 in stock

SKU 7219-2500025

$51.62/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	2-1/2
Standard Package Quantity	25 ft	Specifications Met	N/A
Design Factor	4:1	Maximum Operating Temperature	100 °C
Cover Color	Black	Minimum Operating Temperature	-30 °F
Maximum Operating Pressure	5.2 bar	Compatible Fitting	n/a
Hose Inner Tube Material	Black	Media	Mild Chemicals - Check your fluid compatibility with our catalogue chart.
Inside Diameter	63.5 mm	Cover Material	Chloroprene Rubber (CR)
Hose Reinforcement Material	2 Plies of Textile with Wire Helix	Weight	1.17 lb/ft
Outside Diameter	76.5 mm	Minimum Bend Radius	182.5 mm
Vacuum Pressure Rating	29 Inch-Hg

Customers who bought this item also bought

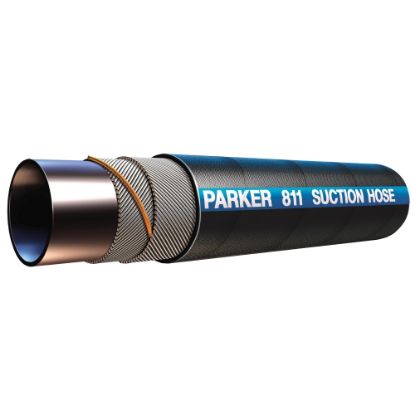

811-32 - Suction and Return Line Hose 62-300 PSI – 811 Hose
