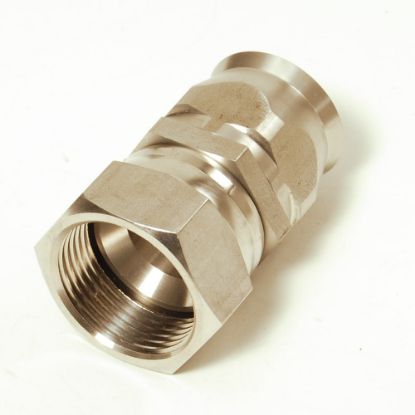

Field Attachable Fittings for PTFE Hose - 90 Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's 90 Series fittings are used with 919 and 919B PTFE hoses from the Parflex division. Unlike crimp fittings, Parker's Field Attachable Fittings allow customers the convenience of making assemblies in the field with the use of a vice rather than a crimper. This series also includes fitting components to reduce inventory or replace part of the fitting when required.
Markets:
• Industrial
• Air & Gas compressors
• Packaging machinery
• Printing and marking equipment
Features:
• No crimper needed for installation
Applications:
• Chemical transfer lines
• General hydraulics
• Compressed air/gases
• Adhesive dispensing
• Coolant lines
Read More...Markets:
• Industrial
• Air & Gas compressors
• Packaging machinery
• Printing and marking equipment
Features:
• No crimper needed for installation
Applications:
• Chemical transfer lines
• General hydraulics
• Compressed air/gases
• Adhesive dispensing
• Coolant lines
| Action | SKU | Availability | Partner Available | Price | UOM | Hose I.D. (inch) | Product Style | Length (inch) | Connection 2 Size | Shape | Industry | Specifications Met | Coating | Configuration | Connection 1 Type | Tube Outside Diameter | Connection 1 Size | For Fluid Type | Maximum Operating Pressure | Connection 2 Type | Hex Size 1 | Connection 2 Size | Fitting Length | Hex Size | Body Material | Connection Length | Dimensional Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20690-20-20C | Backordered | Backordered | $1,279.62/each | EA | 1" | Female JIC 37° - Swivel - Straight | 2.99" | 1-5/8"-12 | Straight | Transportation | N/A | Chromium 6 Free-plated | Hose to Port | Hose | n/a | 1 inch Hose I.D. | Gases | 20.7 MPa | Female | 2 inch (see drawing legend J) | 1-5/8"-12 inch Thread | 76 mm | 2.0 inch (see drawing legend H) | Steel (Socket) | 76 mm | ||
| 20690-4-4 | 3 in stock | 345 in stock | $15.95/each | EA | 0.188" | Female JIC 37° - Swivel - Straight | 1.58" | 7/16"-20 | Straight | Industrial | N/A | Chromium 6 Free-plated | Hose to Port | Hose | n/a | -4 (Size) | Gases | 3000 psi (Dependent on hose) | JIC 37° | 9/16 inch (see drawing legend J) | 7/16"-20 inch Thread | 40 mm | 9/16 inch (see drawing legend H) | Brass (Nipple and Ferrule) | 1-1/8 inch Cut-off allowance (see drawing legend B) | 0.0104 lb | |
| 20690-4-4C | Backordered | 26 in stock | $94.17/each | EA | 0.188" | Female JIC 37° - Swivel - Straight | 1.58" | 7/16"-20 | Straight | Semiconductor | N/A | Chromium 6 Free-plated | Hose to Port | Hose | n/a | 3/16 inch Hose I.D. | Oil | 207 bar | JIC 37° | 9/16 inch (see drawing legend J) | 7/16"-20 inch Thread | 40 mm | 9/16 inch (see drawing legend H) | Steel (Socket) | 40 mm | 0.0178 lb | |
| 20690-5-5 | Backordered | 25 in stock | $41.34/each | EA | 0.25" | Female JIC 37° - Swivel - Straight | 1.66" | 1/2"-20 | Straight | Semiconductor | N/A | Chromium 6 Free-plated | Hose to Port | Hose | n/a | -5 (Size) | Oil | 20.7 MPa | Swivel | 5/8 inch (see drawing legend J) | 1/2"-20 inch Thread | 42 mm | 5/8 inch (see drawing legend H) | Brass (Nipple and Ferrule) | 1-1/8 inch Cut-off allowance (see drawing legend B) | 0.0106 lb | |
| 20690-5-5C | Backordered | Backordered | $138.84/each | EA | 0.25" | Female JIC 37° - Swivel - Straight | 1.66" | 1/2"-20 | N/A | n/a | -5 (Size) | 1/2"-20 inch Thread | 0.0106 lb | ||||||||||||||
| 20690-6-6 | Backordered | 50 in stock | $19.79/each | EA | 0.313" | Female JIC 37° - Swivel - Straight | 1.74" | 9/16"-18 | Straight | Semiconductor | N/A | Chromium 6 Free-plated | Hose to Port | Hose | n/a | 7.9 mm | Air (Pneumatic Media) | 20.7 MPa | Swivel | 11/16 inch (see drawing legend J) | 9/16"-18 inch Thread | 44 mm | 11/16 inch (see drawing legend H) | Brass (Nipple and Ferrule) | 1-3/16 inch Cut-off allowance (see drawing legend B) | 0.0235 lb | |
| 20690-6-6C | Backordered | 17 in stock | $112.40/each | EA | 0.313" | Female JIC 37° - Swivel - Straight | 1.74" | 9/16"-18 | Straight | Food & Beverage | N/A | Chromium 6 Free-plated | Hose to Port | Hose | n/a | -6 (Size) | Steam | 20.7 MPa | Swivel | 11/16 inch (see drawing legend J) | 9/16"-18 inch Thread | 1.74 inch (see drawing legend A) | 11/16 inch (see drawing legend H) | Brass (Nipple and Ferrule) | 44 mm | 0.0529 lb | |
| 20690-8-10 | Backordered | Backordered | $76.60/each | EA | 0.5" | Female JIC 37° - Swivel - Straight | 2.07" | 3/4"-16 | Straight | Industrial | N/A | Chromium 6 Free-plated | Hose to Port | Hose | n/a | -10 (Size) | Gases | 3000 psi (Dependent on hose) | Swivel | 7/8 inch (see drawing legend J) | 3/4"-16 inch Thread | 2.07 inch (see drawing legend A) | 1 inch (see drawing legend H) | Brass (Nipple and Ferrule) | 53 mm | 0.038 lb | |
| 20690-8-6 | Backordered | Backordered | $59.95/each | EA | 0.313" | Female JIC 37° - Swivel - Straight | 1.85" | 3/4"-16 | Straight | Food & Beverage | N/A | Chromium 6 Free-plated | Hose to Port | Hose | n/a | 7.9 mm | Pharmaceutical Fluids | 20.7 MPa | Female | 7/8 inch (see drawing legend J) | 3/4"-16 inch Thread | 1.85 inch (see drawing legend A) | 7/8 inch (see drawing legend H) | Steel (Socket) | 47 mm | 0.0235 lb | |
| 20690-8-8 | 2 Limited Stock | 80 in stock | $26.44/each | EA | 0.406" | Female JIC 37° - Swivel - Straight | 1.98" | 3/4"-16 | Straight | Food & Beverage | N/A | Chromium 6 Free-plated | Hose to Port | Hose | n/a | -8 (Size) | Water | 20.7 MPa | Female | 7/8 inch (see drawing legend J) | 3/4"-16 inch Thread | 50 mm | 7/8 inch (see drawing legend H) | Brass (Nipple and Ferrule) | 50 mm | 0.0234 lb | |
| 20690-8-8C | Backordered | 13 in stock | $166.98/each | EA | 0.406" | Female JIC 37° - Swivel - Straight | 1.98" | 3/4"-16 | Straight | Transportation | N/A | Chromium 6 Free-plated | Hose to Port | Hose | n/a | 13/32 inch Hose I.D. | Oil | 3000 psi (Dependent on hose) | JIC 37° | 7/8 inch (see drawing legend J) | 3/4"-16 inch Thread | 1.98 inch (see drawing legend A) | 7/8 inch (see drawing legend H) | Brass (Nipple and Ferrule) | 1-3/8 inch Cut-off allowance (see drawing legend B) | 0.0522 lb | |
| 20890-12-12 | Backordered | 1 Limited Stock | $43.87/each | EA | 0.625" | Female SAE 45° - Swivel - Straight | 2.34" | 1-1/16"-14 | Straight | Food & Beverage | N/A | Chromium 6 Free-plated | Hose to Port | Hose | n/a | 15.9 mm | Oil | 3000 psi (Dependent on hose) | Female | 1-1/4 inch (see drawing legend J) | 1-1/16"-14 inch Thread | 2.34 inch (see drawing legend A) | 1-1/8 inch (see drawing legend H) | Brass (Nipple and Ferrule) | 1-11/16 inch Cut-off allowance (see drawing legend B) | 0.1223 lb | |
| 20890-6-6 | 24 in stock | 60 in stock | $20.66/each | EA | 0.313" | Female SAE 45° - Swivel - Straight | 1.77" | 5/8"-18 | Straight | Industrial | N/A | Chromium 6 Free-plated | Hose to Port | Hose | n/a | 5/16 inch Hose I.D. | Chemicals | 3000 psi (Dependent on hose) | 45° Flare SAE | 3/4 inch (see drawing legend J) | 5/8"-18 inch Thread | 1.77 inch (see drawing legend A) | 11/16 inch (see drawing legend H) | Steel (Socket) | 1-1/4 inch Cut-off allowance (see drawing legend B) | 0.0235 lb | |
| 23490-10-10 | 8 in stock | 7 in stock | $56.44/each | EA | 0.5" | Male Standpipe - Rigid - Straight (Inch Size Tube O.D.) | 3.28" | Straight | Healthcare & Life Sciences | N/A | Chromium 6 Free-plated | Hose to Port | Hose | n/a | 1/2 inch Hose I.D. | Pneumatic Media | 3000 psi (Dependent on hose) | Male | 1 inch (see drawing legend J) | n/a | 3.28 inch (see drawing legend A) | 1 inch (see drawing legend H) | Steel (Socket) | 45 mm | 0.0529 lb | ||
| 23490-12-12 | Backordered | 2 Limited Stock | $108.08/each | EA | 0.625" | Male Standpipe - Rigid - Straight (Inch Size Tube O.D.) | 3.28" | Straight | Industrial | N/A | Chromium 6 Free-plated | Hose to Port | Hose | n/a | 15.9 mm | Chemicals | 3000 psi (Dependent on hose) | Straight Tube | 1-1/8 inch (see drawing legend J) | n/a | 83 mm | 1-1/8 inch (see drawing legend H) | Brass (Nipple and Ferrule) | 47 mm | 0.0522 lb | ||
| 23790-10-10 | Backordered | Backordered | $84.44/each | EA | 0.5" | Female JIC 37° - Swivel - 45° Elbow - Short Drop | 2.45" | 7/8"-14 | Elbow 45° Short Drop | Healthcare & Life Sciences | N/A | Chromium 6 Free-plated | Hose to Port | Hose | n/a | 12.7 mm | Pneumatic Media | 20.7 MPa | JIC 37° | 1 inch (see drawing legend J) | 7/8"-14 inch Thread | 2.45 inch (see drawing legend A) | 1 inch (see drawing legend H) | Steel | 1-7/8 inch Cut-off allowance (see drawing legend B) | 0.5886 lb | |
| 23790-12-12 | Backordered | 3 in stock | $87.68/each | EA | 0.625" | Female JIC 37° - Swivel - 45° Elbow - Short Drop | 3.04" | 1-1/16"-12 | Elbow 45° Short Drop | Healthcare & Life Sciences | N/A | Chromium 6 Free-plated | Hose to Port | Hose | n/a | 5/8 inch Hose I.D. | Hydraulic Fluids | 3000 psi (Dependent on hose) | Swivel | 1-1/4 inch (see drawing legend J) | 1-1/16"-12 inch Thread | 77 mm | 1-1/4 inch (see drawing legend H) | Steel | 60 mm | 0.1177 lb | |
| 23790-16-16 | Backordered | 51 in stock | $120.16/each | EA | 0.875" | Female JIC 37° - Swivel - 45° Elbow - Short Drop | 3.28" | 1-5/16"-12 | Elbow 45° Short Drop | Industrial | N/A | Chromium 6 Free-plated | Hose to Port | Hose | n/a | 22 mm | Oil | 207 bar | Swivel | 1-1/2 inch (see drawing legend J) | 1-5/16"-12 inch Thread | 3.28 inch (see drawing legend A) | 1-1/2 inch (see drawing legend H) | Steel | 2-11/16 inch Cut-off allowance (see drawing legend B) | 0.3095 lb | |
| 23790-20-20 | Backordered | Backordered | $368.43/each | EA | 1" | Female JIC 37° - Swivel - 45° Elbow - Short Drop | 3.7" | 1-5/8"-12 | Elbow 45° Short Drop | Transportation | N/A | Chromium 6 Free-plated | Hose to Port | Hose | n/a | -20 (Size) | Pneumatic Media | 3000 psi (Dependent on hose) | Female | 2 inch (see drawing legend J) | 1-5/8"-12 inch Thread | 3.7 inch (see drawing legend A) | 2.0 inch (see drawing legend H) | Steel | 3-1/16 inch Cut-off allowance (see drawing legend B) | ||
| 23790-4-4 | Backordered | Backordered | $30.55/each | EA | 0.188" | Female JIC 37° - Swivel - 45° Elbow - Short Drop | 1.79" | 7/16"-20 | Elbow 45° Short Drop | Food & Beverage | N/A | Chromium 6 Free-plated | Hose to Port | Hose | n/a | -4 (Size) | Pharmaceutical Fluids | 20.7 MPa | JIC 37° | 9/16 inch (see drawing legend J) | 7/16"-20 inch Thread | 45 mm | 9/16 inch (see drawing legend H) | Steel | 90 mm | 0.0567 lb |
