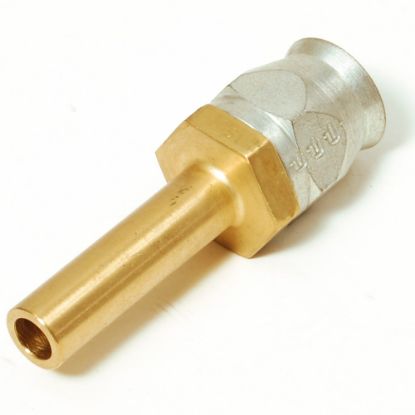

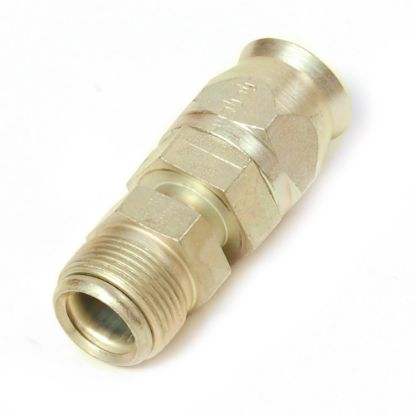

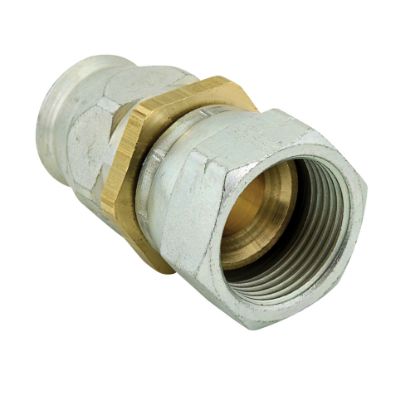

Field Attachable Fittings for PTFE Hose - 90 Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's 90 Series fittings are used with 919 and 919B PTFE hoses from the Parflex division. Unlike crimp fittings, Parker's Field Attachable Fittings allow customers the convenience of making assemblies in the field with the use of a vice rather than a crimper. This series also includes fitting components to reduce inventory or replace part of the fitting when required.
Markets:
• Industrial
• Air & Gas compressors
• Packaging machinery
• Printing and marking equipment
Features:
• No crimper needed for installation
Applications:
• Chemical transfer lines
• General hydraulics
• Compressed air/gases
• Adhesive dispensing
• Coolant lines
Read More...Markets:
• Industrial
• Air & Gas compressors
• Packaging machinery
• Printing and marking equipment
Features:
• No crimper needed for installation
Applications:
• Chemical transfer lines
• General hydraulics
• Compressed air/gases
• Adhesive dispensing
• Coolant lines
| Action | SKU | Availability | Partner Available | Price | UOM | Hose I.D. (inch) | Connection 2 Size | Length (inch) | Product Style | Body Material | Specifications Met | Coating | Configuration | For Fluid Type | Connection 1 Type | Tube Outside Diameter | Maximum Operating Pressure | Hex Size | Industry | Connection 1 Size | Connection Length | Connection 2 Size | Connection 2 Type | Dimensional Weight | Hex Size 1 | Shape | Fitting Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 23790-5-5 | Backordered | 2 Limited Stock | $46.16/each | EA | 0.25" | 1/2"-20 | 1.86" | Female JIC 37° - Swivel - 45° Elbow - Short Drop | Steel | N/A | Chromium 6 Free-plated | Hose to Port | Hydraulic Fluids | Hose | n/a | 3000 psi (Dependent on hose) | 5/8 inch (see drawing legend H) | Food & Beverage | 6.35 mm | 1-3/8 inch Cut-off allowance (see drawing legend B) | 1/2"-20 inch Thread | Swivel | 0.0589 lb | 5/8 inch (see drawing legend J) | Elbow 45° Short Drop | 47 mm | |
| 23790-6-6 | Backordered | 1 Limited Stock | $35.25/each | EA | 0.313" | 9/16"-18 | 1.96" | Female JIC 37° - Swivel - 45° Elbow - Short Drop | Steel | N/A | Chromium 6 Free-plated | Hose to Port | Oil | Hose | n/a | 207 bar | 11/16 inch (see drawing legend H) | Food & Beverage | 5/16 inch Hose I.D. | 44 mm | 9/16"-18 inch Thread | Female | 0.0264 lb | 11/16 inch (see drawing legend J) | Elbow 45° Short Drop | 50 mm | |
| 23790-8-6 | Backordered | Backordered | $102.33/each | EA | 0.313" | 3/4"-16 | 2.11" | Female JIC 37° - Swivel - 45° Elbow - Short Drop | Steel | N/A | Chromium 6 Free-plated | Hose to Port | Hydraulic Fluids | Hose | n/a | 3000 psi (Dependent on hose) | 11/16 inch (see drawing legend H) | Transportation | -6 (Size) | 1-11/16 inch Cut-off allowance (see drawing legend B) | 3/4"-16 inch Thread | Female | 11/16 inch (see drawing legend J) | Elbow 45° Short Drop | 2.11 inch (see drawing legend A) | ||
| 23790-8-8 | Backordered | Backordered | $38.90/each | EA | 0.406" | 3/4"-16 | 2.4" | Female JIC 37° - Swivel - 45° Elbow - Short Drop | Steel | N/A | Chromium 6 Free-plated | Hose to Port | Gases | Hose | n/a | 3000 psi (Dependent on hose) | 7/8 inch (see drawing legend H) | Healthcare & Life Sciences | -8 (Size) | 1-3/4 inch Cut-off allowance (see drawing legend B) | 3/4"-16 inch Thread | Swivel | 0.0522 lb | 7/8 inch (see drawing legend J) | Elbow 45° Short Drop | 2.40 inch (see drawing legend A) | |
| 23990-10-10 | Backordered | 1 Limited Stock | $74.72/each | EA | 0.5" | 7/8"-14 | 2.38" | Female JIC 37° - Swivel - 90° Elbow - Short Drop | Steel | N/A | Chromium 6 Free-plated | Hose to Port | Oil | Hose | n/a | 207 bar | 15/16 inch (see drawing legend H) | Healthcare & Life Sciences | -10 (Size) | 1-3/4 inch Cut-off allowance (see drawing legend B) | 7/8"-14 inch Thread | Female | 1 inch (see drawing legend J) | Elbow 90° Short Drop | 2.38 inch (see drawing legend A) | ||
| 23990-12-12 | Backordered | 11 in stock | $75.71/each | EA | 0.625" | 1-1/16"-12 | 2.95" | Female JIC 37° - Swivel - 90° Elbow - Short Drop | Steel | N/A | Chromium 6 Free-plated | Hose to Port | Chemicals | Hose | n/a | 3000 psi (Dependent on hose) | 1-1/8 inch (see drawing legend H) | Food & Beverage | 15.9 mm | 49 mm | 1-1/16"-12 inch Thread | JIC 37° | 0.1177 lb | 1-1/4 inch (see drawing legend J) | Elbow 90° Short Drop | 75 mm | |
| 23990-16-16 | Backordered | Backordered | $119.24/each | EA | 0.875" | 1-5/16"-12 | 3.13" | Female JIC 37° - Swivel - 90° Elbow - Short Drop | Steel | N/A | Chromium 6 Free-plated | Hose to Port | Hydraulic Fluids | Hose | n/a | 20.7 MPa | 1-3/8 inch (see drawing legend H) | Healthcare & Life Sciences | -16 (Size) | 53 mm | 1-5/16"-12 inch Thread | Swivel | 0.2104 lb | 1-1/2 inch (see drawing legend J) | Elbow 90° Short Drop | 3.13 inch (see drawing legend A) | |
| 23990-20-20 | Backordered | Backordered | $190.46/each | EA | 1" | 1-5/8"-12 | 3.54" | Female JIC 37° - Swivel - 90° Elbow - Short Drop | Steel | N/A | Chromium 6 Free-plated | Hose to Port | Hydraulic Fluids | Hose | n/a | 3000 psi (Dependent on hose) | 1-3/4 inch (see drawing legend H) | Healthcare & Life Sciences | 1 inch Hose I.D. | 47 mm | 1-5/8"-12 inch Thread | Swivel | 1.5476 lb | 2 inch (see drawing legend J) | Elbow 90° Short Drop | 3.54 inch (see drawing legend A) | |
| 23990-4-4 | Backordered | 8 in stock | $26.67/each | EA | 0.188" | 7/16"-20 | 1.67" | Female JIC 37° - Swivel - 90° Elbow - Short Drop | Steel | N/A | Chromium 6 Free-plated | Hose to Port | Oil | Hose | n/a | 3000 psi (Dependent on hose) | 9/16 inch (see drawing legend H) | Industrial | 3/16 inch Hose I.D. | 43 mm | 7/16"-20 inch Thread | Swivel | 0.1151 lb | 9/16 inch (see drawing legend J) | Elbow 90° Short Drop | 1.67 inch (see drawing legend A) | |
| 23990-5-5 | 2 Limited Stock | 1 Limited Stock | $43.75/each | EA | 0.25" | 1/2"-20 | 1.75" | Female JIC 37° - Swivel - 90° Elbow - Short Drop | Steel | N/A | Chromium 6 Free-plated | Hose to Port | Oil | Hose | n/a | 3000 psi (Dependent on hose) | 5/8 inch (see drawing legend H) | Semiconductor | 1/4 inch Hose I.D. | 44 mm | 1/2"-20 inch Thread | JIC 37° | 0.0254 lb | 5/8 inch (see drawing legend J) | Elbow 90° Short Drop | 44 mm | |
| 23990-6-6 | Backordered | 21 in stock | $28.15/each | EA | 0.313" | 9/16"-18 | 1.86" | Female JIC 37° - Swivel - 90° Elbow - Short Drop | Steel | N/A | Chromium 6 Free-plated | Hose to Port | Water | Hose | n/a | 3000 psi (Dependent on hose) | 11/16 inch (see drawing legend H) | Transportation | -6 (Size) | 77 mm | 9/16"-18 inch Thread | JIC 37° | 0.1177 lb | 11/16 inch (see drawing legend J) | Elbow 90° Short Drop | 47 mm | |
| 23990-8-6 | Backordered | Backordered | $86.53/each | EA | 0.313" | 3/4"-16 | 1.95" | Female JIC 37° - Swivel - 90° Elbow - Short Drop | Steel | N/A | Chromium 6 Free-plated | Hose to Port | Pneumatic Media | Hose | n/a | 3000 psi (Dependent on hose) | 11/16 inch (see drawing legend H) | Food & Beverage | 5/16 inch Hose I.D. | 1-7/16 inch Cut-off allowance (see drawing legend B) | 3/4"-16 inch Thread | Swivel | 0.2612 lb | 7/8 inch (see drawing legend J) | Elbow 90° Short Drop | 50 mm | |
| 23990-8-8 | Backordered | 14 in stock | $38.37/each | EA | 0.406" | 3/4"-16 | 2.15" | Female JIC 37° - Swivel - 90° Elbow - Short Drop | Steel | N/A | Chromium 6 Free-plated | Hose to Port | Pneumatic Media | Hose | n/a | 3000 psi (Dependent on hose) | 13/16 inch (see drawing legend H) | Food & Beverage | 10.3 mm | 1-1/2 inch Cut-off allowance (see drawing legend B) | 3/4"-16 inch Thread | JIC 37° | 0.0529 lb | 7/8 inch (see drawing legend J) | Elbow 90° Short Drop | 55 mm | |
| 26190-12-12 | Backordered | 2 Limited Stock | $133.04/each | EA | 0.625" | 1"-18 | 2.09" | Compression Air Brake | Steel (Socket) | N/A | Chromium 6 Free-plated | Hose to Port | Oil | Hose | n/a | 3000 psi (Dependent on hose) | 1-1/8 inch (see drawing legend H) | Food & Beverage | -12 (Size) | 1-7/16 inch Cut-off allowance (see drawing legend B) | 1"-18 inch Thread | Compression Air Brake | 0.0522 lb | 1-1/8 inch (see drawing legend J) | Straight | 53 mm | |
| 26190-8-10 | Backordered | Backordered | $38.27/each | EA | 0.5" | 11/16"-20 | 1.86" | Compression Air Brake | Steel (Socket) | N/A | Chromium 6 Free-plated | Hose to Port | Chemicals | Hose | n/a | 3000 psi (Dependent on hose) | 1 inch (see drawing legend H) | Healthcare & Life Sciences | -10 (Size) | 1-3/16 inch Cut-off allowance (see drawing legend B) | 11/16"-20 inch Thread | Compression Air Brake | 0.0529 | 1 inch (see drawing legend J) | Straight | 1.86 inch (see drawing legend A) | |
| 26190-8-8 | Backordered | 75 in stock | $60.95/each | EA | 0.406" | 11/16"-20 | 1.69" | Compression Air Brake | Steel (Socket) | N/A | Chromium 6 Free-plated | Hose to Port | Hydraulic Fluids | Hose | n/a | 3000 psi (Dependent on hose) | 13/16 inch (see drawing legend H) | Transportation | -8 (Size) | 1-1/16 inch Cut-off allowance (see drawing legend B) | 11/16"-20 inch Thread | Compression Air Brake | 0.0673 | 13/16 inch (see drawing legend J) | Straight | 1.69 inch (see drawing legend A) | |
| 27990-12-12 | Backordered | 3 in stock | $65.85/each | EA | 0.625" | 1-1/16"-14 | 2.51" | Female SAE 45 / Swivel - 45° Elbow | Steel | N/A | Chromium 6 Free-plated | Hose to Port | Gases | Hose | n/a | 3000 psi (Dependent on hose) | 1-1/8 inch (see drawing legend H) | Healthcare & Life Sciences | 5/8 inch Hose I.D. | 2 inch Cut-off allowance (see drawing legend B) | 1-1/16"-14 inch Thread | 45° Flare SAE | 0.5886 lb | 1-1/4 inch (see drawing legend J) | Elbow 90° | 3.03 inch (see drawing legend A) | |
| 27990-6-6 | Backordered | 3 in stock | $31.65/each | EA | 0.313" | 5/8"-18 | 2.11" | Female SAE 45 / Swivel - 45° Elbow | Steel | N/A | Chromium 6 Free-plated | Hose to Port | Hydraulic Fluids | Hose | n/a | 3000 psi (Dependent on hose) | 11/16 inch (see drawing legend H) | Transportation | 5/16 inch Hose I.D. | 45 mm | 5/8"-18 inch Thread | 45° Flare SAE | 0.0529 lb | 3/4 inch (see drawing legend J) | Elbow 90° | 44 mm |
