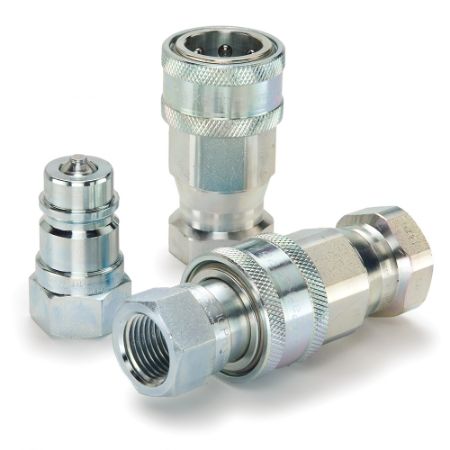

General Purpose, ISO 7241-A, Hydraulic Quick Couplings - 6600 Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
6600 Series Couplers (hydraulic) up to 5000 psi, connect with ISO 7241 series A, 6600 Series Nipples.
Parker's 6600 Series have double shut-off poppet valves and are interchangeable with other quick disconnects complying with ISO 7241 series A. These steel couplers and nipples are available in a range of sizes for applications with pressure ranges up to 5000 psi.
Technical Characteristics:
• Sizes: 1/4” – 1”
• Materials: Steel
• Port Ends: Female NPTF, Female ORB, Female BSPP
• Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
• Other Coupler options include: Sleeve Lock
Markets:
• Construction
• Mobile equipment
• Agriculture
Features/Benefits:
• Globally interchangeable with other manufacturer's quick couplings complying to ISO 7241 series A
• Steel coupler sleeve is hardened for durability
• Optional sleeve lock helps to prevent accidental disconnection
Applications:
• Hydraulic fluid transfer
• Truck trailer connections
• Mobile applications
• Attachments
Read More...Parker's 6600 Series have double shut-off poppet valves and are interchangeable with other quick disconnects complying with ISO 7241 series A. These steel couplers and nipples are available in a range of sizes for applications with pressure ranges up to 5000 psi.
Technical Characteristics:
• Sizes: 1/4” – 1”
• Materials: Steel
• Port Ends: Female NPTF, Female ORB, Female BSPP
• Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
• Other Coupler options include: Sleeve Lock
Markets:
• Construction
• Mobile equipment
• Agriculture
Features/Benefits:
• Globally interchangeable with other manufacturer's quick couplings complying to ISO 7241 series A
• Steel coupler sleeve is hardened for durability
• Optional sleeve lock helps to prevent accidental disconnection
Applications:
• Hydraulic fluid transfer
• Truck trailer connections
• Mobile applications
• Attachments
| Action | SKU | Availability | Partner Available | Price | UOM | Coupling Half | Connection Type | Connection Thread Size (inch) | Body Size (inch) | Minimum Operating Temperature | Body Material | Dimensional Weight | Seal Material | Maximum Operating Temperature | Plating Type | Valve Type | Maximum Operating Pressure | Flow Rate | Hex Size | Interchange Type | Specifications Met |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

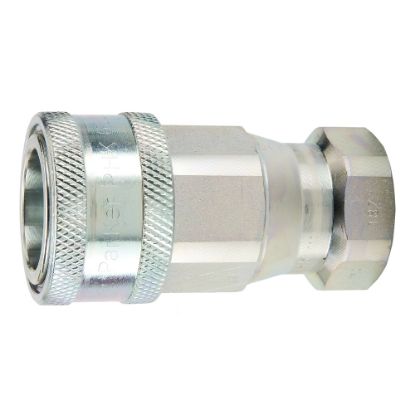

| 6601-12-10 | 5 in stock | 26 in stock | $58.61/each | EA | Female Coupler | Female NPTF | 3/4 - 14 | 1/2" | -40 °F | Steel | 0.12464028776978417 lb | Nitrile | 250 °F | Zinc with clear trivalent chromate | Poppet | 4000 psi | 12 Gal/min | 1.38 inch | ISO 7241-1 Series A | ISO 7241-1 Series A | |
| 6601-12-12 | 62 in stock | 458 in stock | $71.82/each | EA | Female Coupler | Female NPTF | 3/4 - 14 | 3/4" | -40 °F | Steel | 0.15995203836930455 lb | Nitrile | 250 °F | Zinc with clear trivalent chromate | Poppet | 4000 psi | 28 Gal/min | 1.62 inch | ISO 7241-1 Series A | ISO 7241-1 Series A | |
| 6601-16-16 | 45 in stock | 440 in stock | $94.80/each | EA | Female Coupler | Female NPTF | 1 - 11 1/2 | 1" | -40 °F | Steel | 0.2255827338129497 lb | Nitrile | 250 °F | Zinc with clear trivalent chromate | Poppet | 4000 psi | 50 Gal/min | 1.88 inch | ISO 7241-1 Series A | ISO 7241-1 Series A | |
| 6601-2-4 | Backordered | 23 in stock | $43.30/each | EA | Female Coupler | Female NPTF | 1/8 - 27 | 1/4" | -40 °F | Steel | 0.02670863309352518 lb | Nitrile | 250 °F | Zinc with clear trivalent chromate | Poppet | 5000 psi | 3 Gal/min | 0.88 inch | ISO 7241-1 Series A | ISO 7241-1 Series A | |
| 6601-4-4 | 23 in stock | 439 in stock | $33.48/each | EA | Female Coupler | Female NPTF | 1/4 - 18 | 1/4" | -40 °F | Steel | 0.03998800959232614 lb | Nitrile | 250 °F | Zinc with clear trivalent chromate | Poppet | 5000 psi | 3 Gal/min | 0.88 inch | ISO 7241-1 Series A | ISO 7241-1 Series A | |
| 6601-4-4Y | Backordered | 6 in stock | $44.93/each | EA | Female Coupler | Female NPTF | 1/4 - 18 | 1/4" | -15 °F | Steel | Fluorocarbon | 400 °F | Zinc with clear trivalent chromate | Poppet | 5000 psi | 3 Gal/min | 0.88 inch | ISO 7241-1 Series A | ISO 7241-1 Series A | ||
| 6601-6-6 | 58 in stock | 583 in stock | $43.37/each | EA | Female Coupler | Female NPTF | 3/8 - 18 | 3/8" | -40 °F | Steel | 0.07997601918465227 lb | Nitrile | 250 °F | Zinc with clear trivalent chromate | Poppet | 4000 psi | 6 Gal/min | 1.06 inch | ISO 7241-1 Series A | ISO 7241-1 Series A | |
| 6601-6-6Y | Backordered | 1 Limited Stock | $47.31/each | EA | Female Coupler | Female NPTF | 3/8 - 18 | 3/8" | -15 °F | Steel | Fluorocarbon | 400 °F | Zinc with clear trivalent chromate | Poppet | 4000 psi | 6 Gal/min | 1.06 inch | ISO 7241-1 Series A | ISO 7241-1 Series A | ||
| 6601-8-10 | 56 in stock | 842 in stock | $45.22/each | EA | Female Coupler | Female NPTF | 1/2 - 14 | 1/2" | -40 °F | Steel | 0.15995203836930455 lb | Nitrile | 250 °F | Zinc with clear trivalent chromate | Poppet | 4000 psi | 12 Gal/min | 1.25 inch | ISO 7241-1 Series A | ISO 7241-1 Series A | |
| 6601-8-10Y | Backordered | 4 in stock | $58.23/each | EA | Female Coupler | Female NPTF | 1/2 - 14 | 1/2" | -15 °F | Steel | Fluorocarbon | 400 °F | Zinc with clear trivalent chromate | Poppet | 4000 psi | 12 Gal/min | 1.25 inch | ISO 7241-1 Series A | ISO 7241-1 Series A | ||

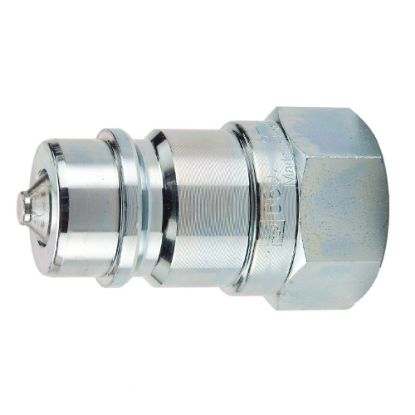

| 6602-12-10 | 6 in stock | 21 in stock | $28.59/each | EA | Male Nipple | Female NPTF | 3/4 - 14 | 1/2 | -40 °F | Steel | 0.05341726618705036 lb | Nitrile | 250 °F | Zinc with clear trivalent chromate | Poppet | 4000 psi | 12 Gal/min | 1.38 inch | ISO 7241-1 Series A | ISO 7241-1 Series A | |
| 6602-12-12 | 71 in stock | 669 in stock | $32.55/each | EA | Male Nipple | Female NPTF | 3/4 - 14 | 3/4 | -40 °F | Steel | 0.07997601918465227 lb | Nitrile | 250 °F | Zinc with clear trivalent chromate | Poppet | 4000 psi | 28 Gal/min | 1.38 inch | ISO 7241-1 Series A | ISO 7241-1 Series A | |
| 6602-16-16 | 43 in stock | 608 in stock | $42.67/each | EA | Male Nipple | Female NPTF | 1 - 11 1/2 | 1 | -40 °F | Steel | 0.11996402877697843 lb | Nitrile | 250 °F | Zinc with clear trivalent chromate | Poppet | 4000 psi | 50 Gal/min | 1.62 inch | ISO 7241-1 Series A | ISO 7241-1 Series A | |
| 6602-2-4 | 4 in stock | 24 in stock | $15.08/each | EA | Male Nipple | Female NPTF | 1/8 - 27 | 1/4 | -40 °F | Steel | 0.02670863309352518 lb | Nitrile | 250 °F | Zinc with clear trivalent chromate | Poppet | 5000 psi | 3 Gal/min | 0.56 inch | ISO 7241-1 Series A | ISO 7241-1 Series A | |
| 6602-4-4 | 36 in stock | 953 in stock | $13.35/each | EA | Male Nipple | Female NPTF | 1/4 - 18 | 1/4 | -40 °F | Steel | 0.009997002398081534 lb | Nitrile | 250 °F | Zinc with clear trivalent chromate | Poppet | 5000 psi | 3 Gal/min | 0.75 inch | ISO 7241-1 Series A | ISO 7241-1 Series A | |
| 6602-4-4Y | Backordered | 1 Limited Stock | $22.74/each | EA | Male Nipple | Female NPTF | 1/4 - 18 | 1/4 | -15 °F | Steel | Fluorocarbon | 400 °F | Zinc with clear trivalent chromate | Poppet | 5000 psi | 3 Gal/min | 0.75 inch | ISO 7241-1 Series A | ISO 7241-1 Series A | ||
| 6602-6-6 | 53 in stock | 1120 in stock | $21.97/each | EA | Male Nipple | Female NPTF | 3/8 - 18 | 3/8 | -40 °F | Steel | 0.01999400479616307 lb | Nitrile | 250 °F | Zinc with clear trivalent chromate | Poppet | 4000 psi | 6 Gal/min | 0.88 inch | ISO 7241-1 Series A | ISO 7241-1 Series A | |
| 6602-6-6Y | Backordered | 14 in stock | $26.51/each | EA | Male Nipple | Female NPTF | 3/8 - 18 | 3/8 | -15 °F | Steel | Fluorocarbon | 400 °F | Zinc with clear trivalent chromate | Poppet | 4000 psi | 6 Gal/min | 0.88 inch | ISO 7241-1 Series A | ISO 7241-1 Series A | ||
| 6602-8-10 | 96 in stock | 1166 in stock | $18.79/each | EA | Male Nipple | Female NPTF | 1/2 - 14 | 1/2 | -40 °F | Steel | 0.03998800959232614 lb | Nitrile | 250 °F | Zinc with clear trivalent chromate | Poppet | 4000 psi | 12 Gal/min | 1.06 inch | ISO 7241-1 Series A | ISO 7241-1 Series A | |
| 6603-6-6 | Backordered | Backordered | POR | EA | Female Coupler | Female BSPP | 3/8-19 | 3/8" | -40 °F | Steel | Nitrile | 250 °F | Zinc with clear trivalent chromate | Poppet | 4000 psi | 6 Gal/min | ISO 7241-1 Series A | ISO 7241-1 Series A |
