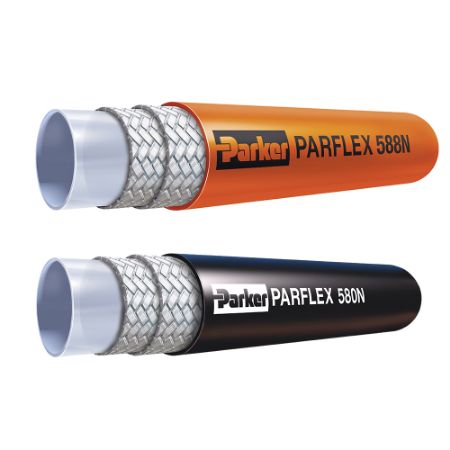

High Pressure Hose - 580N/588N
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's 580N/588N High Pressure Hose meets SAE 100R8 specifications and, with a lighter weight and smaller O.D. than the 100R2, replaces 100R2 rubber hose wherever greater flexibility, fluid compatibility, and cover durability are required. This high pressure hydraulic hose features a highly developed design, available in twin-line and multi-line constructions, to ensure high performance in hydraulic and pneumatic circuits and systems applications. Offering superior features, such as a reduced weight and improved flexing capabilities, the Parflex 580N/588N High Pressure Hose combines a variety of advantages to fulfill application requirements in expanding fluid handling and industrial pneumatic markets.
Markets:
• Fluid Handling
• Industrial
• Mobile Equipment
Features/Benefits:
• Twin and multi-line available to fulfill diverse application requirements
• Lighter weight and smaller O.D. than 100R2 for improved handling and routing
• Replaces 100R2 rubber hose wherever greater flexibility, fluid compatibility, and cover durability are required
Applications:
• Hydraulic and pneumatic circuits and systems
• Construction Equipment
• Factory Automation
• Machine Tools
• Material Handling Equipment
• Turf Equipment
Certifications/Compliance:
• Meets/Exceeds SAE J517 100R8
• DNV Type Approved
• 580N MSHA complaint cover
• 588N Meets SAE J517 for less than 50 micro-amps leakage under 75,000 volts per foot
Technical Specifications:
• Hose 588N has a non-conductive core tube for applications where electric shock is a potential danger for operators
• Hose I.D. is nominal
• Hose O.D. is maximum
Read More...Markets:
• Fluid Handling
• Industrial
• Mobile Equipment
Features/Benefits:
• Twin and multi-line available to fulfill diverse application requirements
• Lighter weight and smaller O.D. than 100R2 for improved handling and routing
• Replaces 100R2 rubber hose wherever greater flexibility, fluid compatibility, and cover durability are required
Applications:
• Hydraulic and pneumatic circuits and systems
• Construction Equipment
• Factory Automation
• Machine Tools
• Material Handling Equipment
• Turf Equipment
Certifications/Compliance:
• Meets/Exceeds SAE J517 100R8
• DNV Type Approved
• 580N MSHA complaint cover
• 588N Meets SAE J517 for less than 50 micro-amps leakage under 75,000 volts per foot
Technical Specifications:
• Hose 588N has a non-conductive core tube for applications where electric shock is a potential danger for operators
• Hose I.D. is nominal
• Hose O.D. is maximum
| Action | SKU | Availability | Partner Available | Price | UOM | Hose I.D. (inch) | Hose Type | Minimum Operating Temperature | Design Factor | Maximum Operating Temperature | Cover Material | Compatible Fitting | Hose Inner Tube Material | Hose Reinforcement Material | Minimum Bend Radius | Size | Inside Diameter | Outside Diameter | Media | Weight | Maximum Operating Pressure | Product Style | Specifications Met | Notes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 580N-12 | 6 in stock | 487 in stock | $13.17/foot | FT | 3/4 | General Purpose | -40 °F | 4:1 | 212 °F | Polyurethane | 56 Series | Polyamide (PA) | Fiber | 8 inch | -12 | 3/4 inch | 1.150 inch | Petroleum Hydraulic Fluids | 0.35 kg/m | 155 bar | Standard | DNG GL | ||
| 580N-16 | Backordered | 150 in stock | $20.15/foot | FT | 1 | General Purpose | -40 °F | 4:1 | 100 °C | Polyurethane | 56 Series | Polyamide (PA) | Fiber | 254 mm | -16 | 1 inch | 1.470 inch | Lubricants (Oils) | 0.56 kg/m | 2000 psi | Standard | SAE 100R8 | ||
| 580N-8 | 12 in stock | 260 in stock | $10.40/foot | FT | 1/2 | General Purpose | -40 °F | 4:1 | 100 °C | Polyurethane | 56 Series | Polyamide (PA) | Fiber | 4 inch | -8 | 1/2 inch | 22.6 mm | Chemicals | 0.31 kg/m | 241 bar | Standard | SAE 100R8 | ||
| 588N-10 | Backordered | Backordered | $16.20/foot | FT | 5/8 | Non Conductive | -40 °F | 4:1 | 100 °C | Polyurethane | 56 Series | Non-Conductive | Fiber | 6 inch | -10 | 16 mm | 0.980 inch | Lubricants (Oils) | 0.21 lb/ft | 190 bar | Non-Conductive | MSHA | Do not use for pneumatic applications | |
| 588N-12 | Backordered | 143 in stock | $16.21/foot | FT | 3/4 | Non Conductive | -40 °C | 4:1 | 212 °F | Polyurethane | 56 Series | Non-Conductive | Fiber | 203 mm | -12 | 3/4 inch | 1.150 inch | Petroleum Hydraulic Fluids | 0.23 lb/ft | 2250 psi | Non-Conductive | DNV GL | Do not use for pneumatic applications | |
| 588N-16 | Backordered | 69 in stock | $22.98/foot | FT | 1 | Non Conductive | -40 °F | 4:1 | 100 °C | Polyurethane | 56 Series | Non-Conductive | Fiber | 254 mm | -16 | 25 mm | 1.470 inch | Petroleum Hydraulic Fluids | 0.56 kg/m | 2000 psi | Non-Conductive | SAE J517 (for less than 50 micro-amps leakage under 75,000 volts per ft.) | Do not use for pneumatic applications | |
| 588N-8 | 11 in stock | 565 in stock | $11.08/foot | FT | 1/2 | Non Conductive | -40 °F | 4:1 | 100 °C | Polyurethane | 56 Series | Non-Conductive | Fiber | 102 mm | -8 | 13 mm | 22.6 mm | Chemicals | 0.21 lb/ft | 24.1 MPa | Non-Conductive | SAE 100R8 | Do not use for pneumatic applications |
