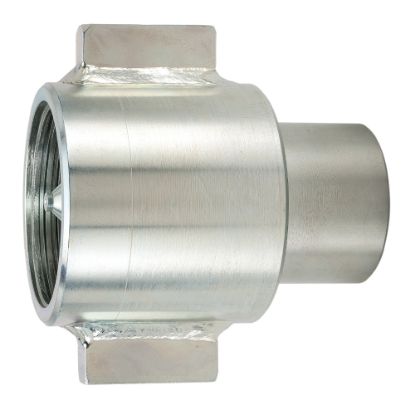

High Pressure, Thread to Connect Couplings, API 16D - 75 Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
75 Series Couplers (hydraulic) up to 5,000 psi connect with 75 Series Nipples.

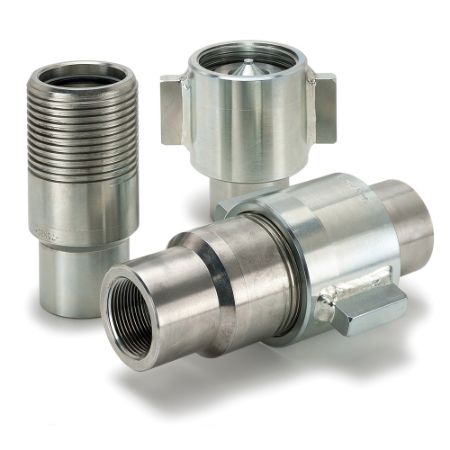

Parker's 75 Series are double shut-off, connect under pressure, thread-to-connect quick couplings. The 3/4" size has a hex nut sleeve. All other sizes have a wing nut style connection. Couplers and nipples are available in a wide range of sizes and steel or stainless steel materials.
API 16D BOP version is available in 3/4" to 2" sizes. Contact us for availability.
Technical Characteristics:
• Sizes: 3/4” – 3”
• Materials: Steel plated, 316 Stainless Steel
• Port Ends: Female Pipe NPTF for Steel, NPT for 316 Stainless Steel
• Seal Options: Nitrile, Fluorocarbon
• Other Coupler options include: "Fire Safe" BOP version 3/4" - 2" steel sizes only
Markets:
• Oil and gas
• Construction
Features/Benefits:
• Thread to connect wing nut makes a secure connection in rugged conditions
• Connect fluid lines under residual pressure
• Steel or corrosion resistant 316 stainless steel construction
• API 16D option for BOP use
Applications:
• High pressure hydraulic systems
• Oil fields and offshore drilling rigs
• Cranes
• Power tongs
• Horizontal boring
• Dewatering
Read More...Parker's 75 Series are double shut-off, connect under pressure, thread-to-connect quick couplings. The 3/4" size has a hex nut sleeve. All other sizes have a wing nut style connection. Couplers and nipples are available in a wide range of sizes and steel or stainless steel materials.
API 16D BOP version is available in 3/4" to 2" sizes. Contact us for availability.
Technical Characteristics:
• Sizes: 3/4” – 3”
• Materials: Steel plated, 316 Stainless Steel
• Port Ends: Female Pipe NPTF for Steel, NPT for 316 Stainless Steel
• Seal Options: Nitrile, Fluorocarbon
• Other Coupler options include: "Fire Safe" BOP version 3/4" - 2" steel sizes only
Markets:
• Oil and gas
• Construction
Features/Benefits:
• Thread to connect wing nut makes a secure connection in rugged conditions
• Connect fluid lines under residual pressure
• Steel or corrosion resistant 316 stainless steel construction
• API 16D option for BOP use
Applications:
• High pressure hydraulic systems
• Oil fields and offshore drilling rigs
• Cranes
• Power tongs
• Horizontal boring
• Dewatering
| Action | SKU | Availability | Partner Available | Price | UOM | Coupling Half | Connection Thread Size (inch) | Connection Type | Body Size (inch) | Sleeve Type | Maximum Operating Pressure | Specifications Met | Minimum Operating Temperature | Body Material | Seal Material | Maximum Operating Temperature | Plating Type | Valve Type | Hex Size | Dimensional Weight | Specifications Met |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 75C12-12F | Backordered | 3 in stock | $132.66/each | EA | Female Coupler | 3/4 - 14 | Female NPSF | 3/4 | Hex nut | 5000 | na | -40 °F | Steel | Nitrile | 250 °F | Zinc with clear trivalent chromate | Poppet | 1.31 inch | 0.22945143884892086 lb | ||
| 75C12-12F-DBP | Backordered | Backordered | $210.77/each | EA | Female Coupler | 3/4 - 14 | Female NPSF | 3/4 | Hex nut | 5000 | API 16D | n/a | Steel | n/a | n/a | Zinc with clear trivalent chromate | Poppet | n/a inch | 0.6232014388489209 lb | API 16D | |
| 75C12-12FV | Backordered | Backordered | $139.43/each | EA | Female Coupler | 3/4 - 14 | Female NPSF | 3/4 | Hex nut | 5000 | na | -15 °F | Steel | Fluorocarbon | 400 °F | Zinc with clear trivalent chromate | Poppet | 1.31 inch | |||
| 75C16-16F | Backordered | 8 in stock | $194.70/each | EA | Female Coupler | 1 - 11 1/2 | Female NPSF | 1 | Wing nut | 5000 | na | -40 °F | Steel | Nitrile | 250 °F | Zinc with clear trivalent chromate | Poppet | 1.69 inch | 0.3366232014388489 lb | ||
| 75C16-16F-DBP | Backordered | Backordered | $284.59/each | EA | Female Coupler | 1 - 11 1/2 | Female NPSF | 1 | Wing nut | 5000 | API 16D | n/a | Steel | n/a | n/a | Zinc with clear trivalent chromate | Poppet | n/a inch | 0.6232014388489209 lb | API | |
| 75C20-20F | Backordered | 52 in stock | $303.55/each | EA | Female Coupler | 1 1/4 - 11 1/2 | Female NPTF | 1 1/4 | Wing nut | 5000 | na | -40 °F | Steel | Nitrile | 250 °F | Zinc with clear trivalent chromate | Poppet | 2 inch | 0.6232014388489209 lb | ||
| 75C20-20F-DBP | Backordered | Backordered | $445.10/each | EA | Female Coupler | 1 1/4 - 11 1/2 | Female NPTF | 1 1/4 | Wing nut | 5000 | API 16D | n/a | Steel | n/a | n/a | Zinc with clear trivalent chromate | Poppet | n/a inch | 0.6232014388489209 lb | API 16D | |
| 75C20-20FV | Backordered | Backordered | $346.10/each | EA | Female Coupler | 1 1/4 - 11 1/2 | Female NPTF | 1 1/4 | Wing nut | 5000 | na | -15 °F | Steel | Fluorocarbon | 400 °F | Zinc with clear trivalent chromate | Poppet | 2 inch | |||
| 75C24-24F | Backordered | 13 in stock | $474.08/each | EA | Female Coupler | 1 1/2 - 11 1/2 | Female NPTF | 1 1/2 | Wing nut | 5000 | na | -40 °F | Steel | Nitrile | 250 °F | Zinc with clear trivalent chromate | Poppet | 2.25 inch | 1.1472571942446044 lb | ||
| 75C32-32F | Backordered | Backordered | $634.12/each | EA | Female Coupler | 2 - 11 1/2 | Female NPT | 2 | Wing nut | 5000 | na | -40 °F | Steel | Nitrile | 250 °F | Zinc with clear trivalent chromate | Poppet | 3 inch | 1.7249784172661868 lb | ||
| 75C40-40F | Backordered | Backordered | $4,670.66/each | EA | Female Coupler | 2 1/2 - 8 | Female NPTF | 2 1/2 | Wing nut | 3000 | na | -40 °F | Steel | Nitrile | 250 °F | Zinc with clear trivalent chromate | Poppet | 3.5 inch | |||
| 75C48-48F | Backordered | Backordered | $4,842.56/each | EA | Female Coupler | 3 - 8 | Female NPTF | 3 | Wing nut | 3000 | na | -40 °F | Steel | Nitrile | 250 °F | Zinc with clear trivalent chromate | Poppet | 4.25 inch | |||
| 75N12-12F | Backordered | 11 in stock | $124.90/each | EA | Male Nipple | 3/4 - 14 | Female NPSF | 3/4 | na | 5000 | na | -40 °F | Steel | Nitrile | 250 °F | Zinc with clear trivalent chromate | Poppet | 1.56 inch | 0.12464028776978417 lb | ||
| 75N12-12F-DBP | Backordered | Backordered | $162.19/each | EA | Male Nipple | 3/4 - 14 | Female NPSF | 3/4 | na | 5000 | API 16D | n/a | Steel | n/a | n/a | Zinc with clear trivalent chromate | Poppet | n/a inch | 0.6232014388489209 lb | API 16D | |
| 75N12-12FV | Backordered | Backordered | $133.20/each | EA | Male Nipple | 3/4 - 14 | Female NPSF | 3/4 | na | 5000 | na | -15 °F | Steel | Fluorocarbon | 400 °F | Zinc with clear trivalent chromate | Poppet | 1.56 inch | |||
| 75N16-16F | Backordered | 8 in stock | $149.11/each | EA | Male Nipple | 1 - 11 1/2 | Female NPSF | 1 | na | 5000 | na | -40 °F | Steel | Nitrile | 250 °F | Zinc with clear trivalent chromate | Poppet | 2 inch | 0.22945143884892086 lb | ||
| 75N16-16F-DBP | Backordered | Backordered | $194.19/each | EA | Male Nipple | 1 - 11 1/2 | Female NPSF | 1 | na | 5000 | API 16D | n/a | Steel | n/a | n/a | Zinc with clear trivalent chromate | Poppet | n/a inch | 0.6232014388489209 lb | API 16D | |
| 75N20-20F | Backordered | 54 in stock | $261.40/each | EA | Male Nipple | 1 1/4 - 11 1/2 | Female NPTF | 1 1/4 | na | 5000 | na | -40 °F | Steel | Nitrile | 250 °F | Zinc with clear trivalent chromate | Poppet | 2.38 inch | 1.3556654676258992 lb | ||
| 75N20-20F-DBP | Backordered | Backordered | $338.10/each | EA | Male Nipple | 1 1/4 - 11 1/2 | Female NPTF | 1 1/4 | na | 5000 | API 16D | na | Steel | na | na | Zinc with clear trivalent chromate | Poppet | na inch | API 16D | ||
| 75N20-20FV | Backordered | Backordered | $291.32/each | EA | Male Nipple | 1 1/4 - 11 1/2 | Female NPTF | 1 1/4 | na | 5000 | na | -15 °F | Steel | Fluorocarbon | 400 °F | Zinc with clear trivalent chromate | Poppet | 2.38 inch |
