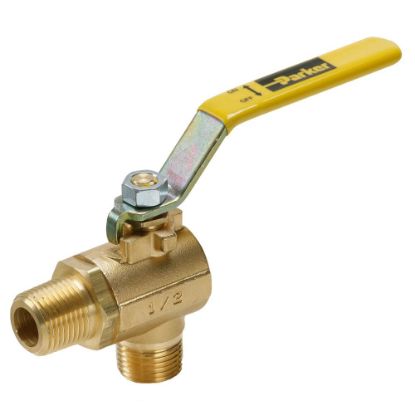

Industrial Brass Ball Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's industrial brass ball valves are designed to provide years of service at an economical price. Manufactured for commercial and general industrial applications these valves offer increased performance over lightweight throwaway valves. These ball valves are intended for use in the fully open or closed positions. Throttling of the valve may result in premature seal failure and/or inability to turn the valve handle.
Parker's brass ball valves are available in a range of styles including:
• Female x Female
• Female x Male
• Panel Mount
• Female Straight Thread x Female Straight Thread
• Solder ends
• Female Straight Thread x Male Straight Thread
• 3 and 4 Way Diversion
• 90? Valves
• Beaded Hose Barb End
• 6 Port Valve
Options for the brass ball valves include:
• Nickel Plating
• Venting
• Padlocking Handles
• Stainless Steel Ball & Stem
• Stainless Steel Handle & Nut
• Tee Handle
• Oval Handle
• Plain Yellow Vinyl Handle Cover
• Actuator Kit
Markets:
• Heavy Duty Truck
• Mobile
• Agriculture
• Construction
• Industrial
Features/Benefits:
• Forged Body for Added Strength
• Chrome Plated Brass Ball
• PTFE Seats and Seals
• Wide Range of Styles
• Quarter Turn Handle Provides Positive Stop Action for Full Shutoff
Applications:
• Fuel Line Shutoffs for Gasoline and Diesel Equipment
• Air Service lines
• Water Service Lines on Capital Equipment
• Plant Design Plumbing Requiring Total Shutoff Capability
Custom configurations and sizes are available upon request. Contact us for additional information.
| Action | SKU | Availability | Partner Available | Price | UOM | Maximum Working Pressure (psi) | Connection 2 Thread Size (inch) | Vented | Connection 1 Thread Size (inch) | Connection 2 Solder O.D. (inch) | Locking Mechanism | Connection 1 Thread Style | Connection 1 Solder O.D. (inch) | Handle | Shape | Style | Connection 2 Thread Style | Body Material | Seal Material | Shape | Connection Size | Minimum Operating Temperature | Maximum Flow Rate | Actuation Type | Seat Material | Maximum Operating Pressure | Maximum Operating Temperature | Operation Type | Ball Material | Function | Mounting Type | Handle Type | Orifice Size | Connection Type | Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| V591P-8-04 | Backordered | Backordered | $48.76/each | EA | 250 | 1/2 | No | 1/2 | na | Non-Locking | Male Pipe | na | Steel Lever | 90 Valve | Male to Male | Male Pipe | Brass | PTFE | Elbow | 1/2 | -50 | n/a | Manual | PTFE | 17 | 350 | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | Tee | .50 | NPT, Straight Thread Solder | Male-Male Pipe Ends | |
| V600P-8-6 | Backordered | Backordered | $412.80/each | EA | 150 | 3/8 | No | 1/2 | na | Non-Locking | Female Pipe | na | Steel Lever | 6 Port 3 position Handle | Female to Female | Female Pipe | Brass | PTFE | Three Position | 1/2 | 0 | n/a | Manual | PTFE | 10 | 250 | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | Lever | .50 | NPT, Straight Thread Solder | Female Pipe Thread, Female PTF Port | |
| V633P-8-6 | Backordered | Backordered | $319.02/each | EA | 150 | 3/8 | No | 1/2 | na | Non-Locking | Female Pipe | na | Steel Lever | 6 Port 2 position Handle | Female to Female | Female Pipe | Brass | PTFE | Two Position | 1/2 | 0 | n/a | Manual | PTFE | 10 | 250 | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | Lever | .50 | NPT, Straight Thread Solder | Female Pipe Thread, Female PTF Port | |
| VP500P-12 | 21 in stock | 220 in stock | $50.21/each | EA | 600 | 3/4 | No | 3/4 | na | Padlock | Female Pipe | na | Steel Lever | In Line | Female to Female | Female Pipe | Brass | PTFE | In-Line | 3/4 | 0 | 25 | Manual | PTFE | 41 | 350 | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | Lever | .69 | NPT, Straight Thread Solder | Female-Female PTF Ports | |
| VP500P-16 | 7 in stock | 56 in stock | $74.58/each | EA | 600 | 1 | No | 1 | na | Padlock | Female Pipe | na | Steel Lever | In Line | Female to Female | Female Pipe | Brass | PTFE | In-Line | 1 inch | -17 °C | 35 Cv | Manual | PTFE | 41 bar | 350 °F | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | Lever | .88 inch | NPT, Straight Thread Solder | Female-Female PTF Ports | |
| VP500P-20 | 1 Limited Stock | 4 in stock | $115.31/each | EA | 600 | 1 1/4 | No | 1 1/4 | na | Padlock | Female Pipe | na | Steel Lever | In Line | Female to Female | Female Pipe | Brass | PTFE | In-Line | 1 1/4 | 0 | 57 | Manual | PTFE | 41 | 350 | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | Lever | 1.18 | NPT, Straight Thread Solder | Female-Female PTF Ports | |
| VP500P-24 | Backordered | 19 in stock | $135.53/each | EA | 600 | 1 1/2 | No | 1 1/2 | na | Padlock | Female Pipe | na | Steel Lever | In Line | Female to Female | Female Pipe | Brass | PTFE | In-Line | 1 1/2 | 0 | 92 | Manual | PTFE | 41 | 350 | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | Lever | 1.50 | NPT, Straight Thread Solder | Female-Female PTF Ports | |
| VP500P-32 | Backordered | 19 in stock | $259.99/each | EA | 600 | 2 | No | 2 | na | Padlock | Female Pipe | na | Steel Lever | In Line | Female to Female | Female Pipe | Brass | PTFE | In-Line | 2 | 0 | 224 | Manual | PTFE | 41 | 350 | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | Lever | 1.89 | NPT, Straight Thread Solder | Female-Female PTF Ports | |
| VP500P-4 | 7 in stock | 81 in stock | $34.96/each | EA | 600 | 1/4 | No | 1/4 | na | Padlock | Female Pipe | na | Steel Lever | In Line | Female to Female | Female Pipe | Brass | PTFE | In-Line | 1/4 | 0 | 4 | Manual | PTFE | 41 | 350 | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | Lever | .38 | NPT, Straight Thread Solder | Female-Female PTF Ports | |
| VP500P-6 | 7 in stock | 60 in stock | $37.29/each | EA | 600 | 3/8 | No | 3/8 | na | Padlock | Female Pipe | na | Steel Lever | In Line | Female to Female | Female Pipe | Brass | PTFE | In-Line | 3/8 | 0 | 5.8 | Manual | PTFE | 41 | 350 | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | Lever | .38 | NPT, Straight Thread Solder | Female-Female PTF Ports | |
| VP500P-8 | 9 in stock | 217 in stock | $37.35/each | EA | 600 | 1/2 | No | 1/2 | na | Padlock | Female Pipe | na | Steel Lever | In Line | Female to Female | Female Pipe | Brass | PTFE | In-Line | 1/2 | 0 | 5.8 | Manual | PTFE | 41 | 350 | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | Lever | .38 | NPT, Straight Thread Solder | Female-Female PTF Ports | |
| VP501P-12 | Backordered | 34 in stock | $100.00/each | EA | 600 | 3/4 | No | 3/4 | na | Padlock | Female Pipe | na | Steel Lever | In Line | Female/Male | Male Pipe | Brass | PTFE | In-Line | 3/4 | 0 | 25 | Manual | PTFE | 41 | 350 | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | Lever | .69 | NPT, Straight Thread Solder | Male-Female PTF Ports | |
| VP501P-16 | Backordered | Backordered | $94.64/each | EA | 600 | 1 | No | 1 | na | Padlock | Female Pipe | na | Steel Lever | In Line | Female/Male | Male Pipe | Brass | PTFE | In-Line | 1 | 0 | 35 | Manual | PTFE | 41 | 350 | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | Lever | .88 | NPT, Straight Thread Solder | Male-Female PTF Ports | |
| VP501P-4 | Backordered | 2 Limited Stock | $49.29/each | EA | 600 | 1/4 | No | 1/4 | na | Padlock | Female Pipe | na | Steel Lever | In Line | Female/Male | Male Pipe | Brass | PTFE | In-Line | 1/4 | 0 | 6.3 | Manual | PTFE | 41 | 350 | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | Lever | .34 | NPT, Straight Thread Solder | Male-Female PTF Ports | |
| VP501P-6 | Backordered | 1 Limited Stock | $43.60/each | EA | 600 | 3/8 | No | 3/8 | na | Padlock | Female Pipe | na | Steel Lever | In Line | Female/Male | Male Pipe | Brass | PTFE | In-Line | 3/8 | 0 | 5.7 | Manual | PTFE | 41 | 350 | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | Lever | .38 | NPT, Straight Thread Solder | Male-Female PTF Ports | |
| VP501P-8 | 27 in stock | 31 in stock | $49.29/each | EA | 600 | 1/2 | No | 1/2 | na | Padlock | Female Pipe | na | Steel Lever | In Line | Female/Male | Male Pipe | Brass | PTFE | In-Line | 1/2 | 0 | 10 | Manual | PTFE | 41 | 350 | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | Lever | .50 | NPT, Straight Thread Solder | Male-Female PTF Ports | |
| VP502P-12 | Backordered | Backordered | $69.69/each | EA | 600 | 3/4 | No | 3/4 | na | Padlock | Female Pipe | na | Steel Lever | Panel mount | Female to Female | Female Pipe | Brass | PTFE | In-Line | 3/4 | 0 | 25 | Manual | PTFE | 41 | 350 | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | Lever | .69 | NPT, Straight Thread Solder | Female-Female PTF Ports | |
| VP502P-16 | Backordered | Backordered | $103.66/each | EA | 600 | 1 | No | 1 | na | Padlock | Female Pipe | na | Steel Lever | Panel mount | Female to Female | Female Pipe | Brass | PTFE | In-Line | 1 | 0 | 35 | Manual | PTFE | 41 | 350 | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | Lever | .88 | NPT, Straight Thread Solder | Female-Female PTF Ports | |
| VP502P-4 | Backordered | Backordered | $58.29/each | EA | 600 | 1/4 | No | 1/4 | na | Padlock | Female Pipe | na | Steel Lever | Panel mount | Female to Female | Female Pipe | Brass | PTFE | In-Line | 1/4 | 0 | 4 | Manual | PTFE | 41 | 350 | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | Lever | .38 | NPT, Straight Thread Solder | Female-Female PTF Ports | |
| VP502P-6 | Backordered | Backordered | $54.22/each | EA | 600 | 3/8 | No | 3/8 | na | Padlock | Female Pipe | na | Steel Lever | Panel mount | Female to Female | Female Pipe | Brass | PTFE | In-Line | 3/8 | 0 | 5.8 | Manual | PTFE | 41 | 350 | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | Lever | .38 | NPT, Straight Thread Solder | Female-Female PTF Ports |
