Industrial Brass Ball Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's industrial brass ball valves are designed to provide years of service at an economical price. Manufactured for commercial and general industrial applications these valves offer increased performance over lightweight throwaway valves. These ball valves are intended for use in the fully open or closed positions. Throttling of the valve may result in premature seal failure and/or inability to turn the valve handle.
Parker's brass ball valves are available in a range of styles including:
• Female x Female
• Female x Male
• Panel Mount
• Female Straight Thread x Female Straight Thread
• Solder ends
• Female Straight Thread x Male Straight Thread
• 3 and 4 Way Diversion
• 90? Valves
• Beaded Hose Barb End
• 6 Port Valve
Options for the brass ball valves include:
• Nickel Plating
• Venting
• Padlocking Handles
• Stainless Steel Ball & Stem
• Stainless Steel Handle & Nut
• Tee Handle
• Oval Handle
• Plain Yellow Vinyl Handle Cover
• Actuator Kit
Markets:
• Heavy Duty Truck
• Mobile
• Agriculture
• Construction
• Industrial
Features/Benefits:
• Forged Body for Added Strength
• Chrome Plated Brass Ball
• PTFE Seats and Seals
• Wide Range of Styles
• Quarter Turn Handle Provides Positive Stop Action for Full Shutoff
Applications:
• Fuel Line Shutoffs for Gasoline and Diesel Equipment
• Air Service lines
• Water Service Lines on Capital Equipment
• Plant Design Plumbing Requiring Total Shutoff Capability
Custom configurations and sizes are available upon request. Contact us for additional information.
| Action | SKU | Availability | Partner Available | Price | UOM | Connection 1 Thread Size (inch) | Connection 2 Thread Size (inch) | Vented | Connection 2 Solder O.D. (inch) | Maximum Working Pressure (psi) | Locking Mechanism | Connection 1 Thread Style | Connection 2 Thread Style | Style | Connection 1 Solder O.D. (inch) | Handle | Shape | Body Material | Seal Material | Minimum Operating Temperature | Connection Size | Maximum Operating Pressure | Maximum Flow Rate | Actuation Type | Seat Material | Maximum Operating Temperature | Handle Type | Operation Type | Ball Material | Function | Mounting Type | Orifice Size | Connection Type | Shape | Configuration | Dimensional Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

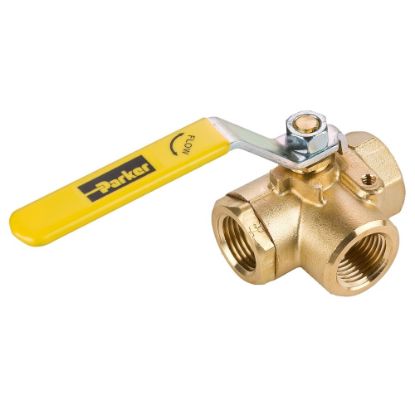

| V533P-12 | Backordered | 11 in stock | $134.35/each | EA | 3/4 | 3/4 | No | na | 400 | Non-Locking | Female Pipe | Female Pipe | Female to Female | na | Steel Lever | 3-Way | Brass | PTFE | -20 | 3/4 | 27 | n/a | Manual | PTFE | 350 | Lever | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | .69 | NPT, Straight Thread Solder | 3-Way Diversion | Female-Female-Female Pipe Ends | ||
| V533P-16 | Backordered | 1 Limited Stock | $276.17/each | EA | 1 | 1 | No | na | 400 | Non-Locking | Female Pipe | Female Pipe | Female to Female | na | Steel Lever | 3-Way | Brass | PTFE | -20 | 1 | 27 | n/a | Manual | PTFE | 350 | Lever | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | .88 | NPT, Straight Thread Solder | 3-Way Diversion | Female-Female-Female Pipe Ends | ||
| V533P-4 | Backordered | 74 in stock | $120.92/each | EA | 1/4 | 1/4 | No | na | 400 | Non-Locking | Female Pipe | Female Pipe | Female to Female | na | Steel Lever | 3-Way | Brass | PTFE | -20 | 1/4 | 27 | n/a | Manual | PTFE | 350 | Lever | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | .38 | NPT, Straight Thread Solder | 3-Way Diversion | Female-Female-Female Pipe Ends | ||
| V533P-4-04 | Backordered | Backordered | $100.15/each | EA | 1/4 | 1/4 | No | na | 600 | Non-Locking | Female Pipe | Female Pipe | Female to Female to Female | na | Tee Handle | 3-Way | Brass | PTFE | -20 | 1/4 | 27 | n/a | Manual | PTFE | 350 | Tee | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | .38 | NPT, Straight Thread Solder | 3-Way Diversion | Female-Female-Female Pipe Ends | ||
| V533P-6 | Backordered | 12 in stock | $117.72/each | EA | 3/8 | 3/8 | No | na | 400 | Non-Locking | Female Pipe | Female Pipe | Female to Female | na | Steel Lever | 3-Way | Brass | PTFE | -20 | 3/8 | 27 | n/a | Manual | PTFE | 350 | Lever | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | .38 | NPT, Straight Thread Solder | 3-Way Diversion | Female-Female-Female Pipe Ends | ||
| V533P-8 | Backordered | 18 in stock | $64.54/each | EA | 1/2 | 1/2 | No | na | 400 | Non-Locking | Female Pipe | Female Pipe | Female to Female | na | Steel Lever | 3-Way | Brass | PTFE | -20 | 1/2 | 27 | n/a | Manual | PTFE | 350 | Lever | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | .50 | NPT, Straight Thread Solder | 3-Way Diversion | Female-Female-Female Pipe Ends | ||

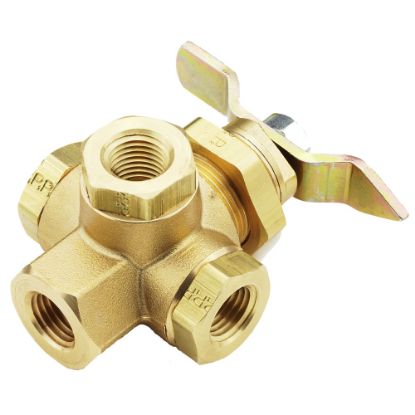

| V540P-4 | Backordered | 2 Limited Stock | $238.10/each | EA | 1/4 | 1/4 | No | na | 400 | Non-Locking | Female Pipe | Female Pipe | Female to Female | na | Steel Lever | 4-Way | Brass | PTFE | -20 | 1/4 | 27 | n/a | Manual | PTFE | 350 | Tee | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | .25 | NPT, Straight Thread Solder | 4-Way Diversion | Female-Female-Female-Female Pipe Ends | ||

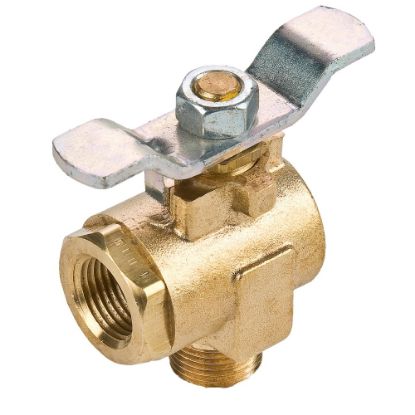

| V590P-16 | Backordered | 2 Limited Stock | $109.49/each | EA | 1 | 1 | No | na | 250 | Non-Locking | Female Pipe | Male Pipe | Female/Male | na | Steel Tee | 90 Valve | Brass | PTFE | -50 | 1 | 17 | n/a | Manual | PTFE | 350 | 3-Way Diversion | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | .75 | NPT, Straight Thread Solder | Elbow | Male-Female PTF Ports | ||
| V590P-16-04 | Backordered | Backordered | $113.53/each | EA | 1 | 1 | No | na | 250 | Non-Locking | Female Pipe | Male Pipe | Female/Male | na | Steel Lever | 90 Valve | Brass | PTFE | -50 | 1 | 17 | n/a | Manual | PTFE | 350 | Tee | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | .75 | NPT, Straight Thread Solder | Elbow | Male-Female PTF Ports | ||
| V590P-4 | 1 Limited Stock | 4 in stock | $37.68/each | EA | 1/4 | 1/4 | No | na | 250 | Non-Locking | Female Pipe | Male Pipe | Female/Male | na | Steel Tee | 90 Valve | Brass | PTFE | -50 | 1/4 | 17 | n/a | Manual | PTFE | 350 | Tee | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | .38 | NPT, Straight Thread Solder | Elbow | Male-Female PTF Ports | ||
| V590P-4-04 | Backordered | 17 in stock | $40.07/each | EA | 1/4 | 1/4 | No | na | 250 | Non-Locking | Female Pipe | Male Pipe | Female/Male | na | Steel Lever | 90 Valve | Brass | PTFE | -50 | 1/4 | 17 | n/a | Manual | PTFE | 350 | Tee | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | .38 | NPT, Straight Thread Solder | Elbow | Male-Female PTF Ports | ||
| V590P-6 | Backordered | 10 in stock | $42.75/each | EA | 3/8 | 3/8 | No | na | 250 | Non-Locking | Female Pipe | Male Pipe | Female/Male | na | Steel Tee | 90 Valve | Brass | PTFE | -50 | 3/8 | 17 | n/a | Manual | PTFE | 350 | Tee | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | .38 | NPT, Straight Thread Solder | Elbow | Male-Female PTF Ports | ||
| V590P-6-04 | Backordered | Backordered | $45.19/each | EA | 3/8 | 3/8 | No | na | 250 | Non-Locking | Female Pipe | Male Pipe | Female/Male | na | Steel Lever | 90 Valve | Brass | PTFE | -50 | 3/8 | 17 | n/a | Manual | PTFE | 350 | Tee | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | .38 | NPT, Straight Thread Solder | Elbow | Male-Female PTF Ports | ||
| V590P-8 | Backordered | 28 in stock | $45.93/each | EA | 1/2 | 1/2 | No | na | 250 | Non-Locking | Female Pipe | Male Pipe | Female/Male | na | Steel Tee | 90 Valve | Brass | PTFE | -45 °C | 1/2 inch | 17 bar | n/a | Manual | PTFE | 176 °C | Tee | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | .50 inch | NPT, Straight Thread Solder | Elbow | Male-Female PTF Ports | 0.27594424460431655 lb | |
| V590P-8-04 | Backordered | 11 in stock | $57.37/each | EA | 1/2 | 1/2 | No | na | 250 | Non-Locking | Female Pipe | Male Pipe | Female/Male | na | Steel Lever | 90 Valve | Brass | PTFE | -50 | 1/2 | 17 | n/a | Manual | PTFE | 350 | Tee | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | .50 | NPT, Straight Thread Solder | Elbow | Male-Female PTF Ports | ||

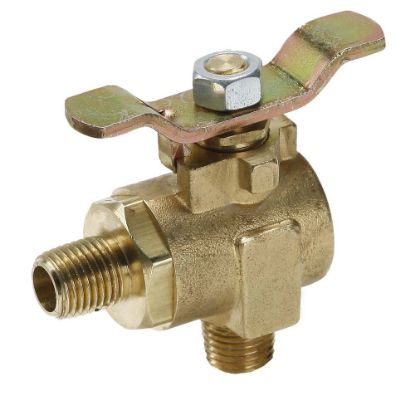

| V591P-4 | Backordered | Backordered | $46.00/each | EA | 1/4 | 1/4 | No | na | 250 | Non-Locking | Male Pipe | Male Pipe | Male to Male | na | Steel Tee | 90 Valve | Brass | PTFE | -50 | 1/4 | 17 | n/a | Manual | PTFE | 350 | Tee | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | .38 | NPT, Straight Thread Solder | Elbow | Male-Male Pipe Ends | ||
| V591P-4-04 | Backordered | Backordered | $47.49/each | EA | 1/4 | 1/4 | No | na | 250 | Non-Locking | Male Pipe | Male Pipe | Male to Male | na | Steel Lever | 90 Valve | Brass | PTFE | -50 | 1/4 | 17 | n/a | Manual | PTFE | 350 | Tee | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | .38 | NPT, Straight Thread Solder | Elbow | Male-Male Pipe Ends | ||
| V591P-6 | Backordered | Backordered | $56.79/each | EA | 3/8 | 3/8 | No | na | 250 | Non-Locking | Male Pipe | Male Pipe | Male to Male | na | Steel Tee | 90 Valve | Brass | PTFE | -50 | 3/8 | 17 | n/a | Manual | PTFE | 350 | Tee | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | .38 | NPT, Straight Thread Solder | Elbow | Male-Male Pipe Ends | ||
| V591P-6-04 | Backordered | Backordered | $49.67/each | EA | 3/8 | 3/8 | No | na | 250 | Non-Locking | Male Pipe | Male Pipe | Male to Male | na | Steel Lever | 90 Valve | Brass | PTFE | -50 | 3/8 | 17 | n/a | Manual | PTFE | 350 | Tee | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | .38 | NPT, Straight Thread Solder | Elbow | Male-Male Pipe Ends | ||
| V591P-8 | Backordered | Backordered | $45.38/each | EA | 1/2 | 1/2 | No | na | 250 | Non-Locking | Male Pipe | Male Pipe | Male to Male | na | Steel Tee | 90 Valve | Brass | PTFE | -50 | 1/2 | 17 | n/a | Manual | PTFE | 350 | Tee | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | .50 | NPT, Straight Thread Solder | Elbow | Male-Male Pipe Ends |
