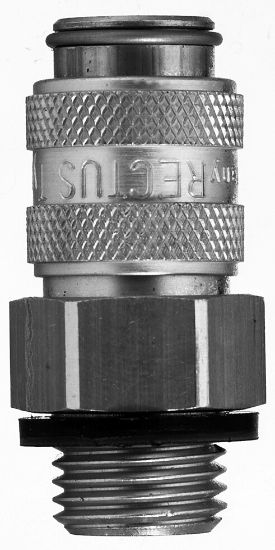

Industrial Interchange, High Flow, Quick Connect Air Couplings - Rectus 21, 23, 30 Series - 21KAAN10MPN

Name: Industrial Interchange, High Flow, Quick Connect Air Couplings - Rectus 21, 23, 30 Series - 21KAAN10MPN
SKU: 21KAAN10MPN

Parker's high flow, Industrial Interchange pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:

Backordered

SKU 21KAAN10MPN

$14.57

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Connection Thread Size	1/8"-27	Thread Style	Male
Connection Type	NPTF	Hose I.D.	n/a
Body Size	1/8"	Coupling Half	Coupler
Division	Low Pressure Connectors Europe Division	Minimum Operating Temperature	-20 °C
Body Material	Brass	Shape	Straight
Technology	Fluid & Gas Handling	Division	Quick Coupling Division
Coupling Half	Coupler	Specifications Met	N/A
Seal Material	NBR	Connection Type	NPT
Lock Type	Locking balls	Sleeve Material	Brass
Connection Size	1/8 inch	Maximum Operating Pressure	up to 507 psi
Maximum Operating Temperature	up to 100 °C	Brand	Rectus
Application	Air, High Flow	Product Type	Quick Couplings Pneumatic
Product Style	Quick-Connect	Media	Low Pressure Fluids
Diameter	5.0	Function	Single Shut-Off
Valve Type	Standard Valve	Sleeve Type	Push to Connect
Plating Type	Nickel-plated	Operation Type	Sleeve
Product Series	Series 21	Interchange Type	European Profile
Region of Origin	Germany	Maximum Flow Rate	1800
Compatible Fitting	Series 21 Plug
