Injection Molding, Coolant Quick Couplings - Moldmate Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Moldmate Series Couplers (water, oil, coolant) up to 200 psi, connect with Moldmate Series Nipples.
Parker's Moldmate Series, in valved and unvalved styles, are specifically designed for connecting low pressure coolant lines to molds and dies on injection molding machinery and die casting equipment. Valved couplers have fluorocarbon poppet seals and can be used with either valved or unvalved nipples. Couplers and nipples are available in sizes, materials, and configurations to be compatible with molding systems.
Technical Characteristics:
• Sizes: 1/4”, 3/8", 1/2”
• Material: Brass
• Port Ends: Push-Lok Hose Barb, Standard Hose Barb
• Interface Seal Options: Silicone, Fluorocarbon
• Other Coupler options include: Straight, 45 degree, 90 degree hose barbs
Markets:
• Industrial die casting
• Injection molding
Features/Benefits:
• Valved couplers have silver colored sleeves for easy visual identification
• Fluorocarbon interface seal option for oil based media
• Standard and Push-Lok hose barb ends available in straight, 45, and 90 degree shapes
• Valved couplers can be used with valved or unvalved nipples
Applications:
• Mold coolant lines
• Die casting equipment
Read More...Parker's Moldmate Series, in valved and unvalved styles, are specifically designed for connecting low pressure coolant lines to molds and dies on injection molding machinery and die casting equipment. Valved couplers have fluorocarbon poppet seals and can be used with either valved or unvalved nipples. Couplers and nipples are available in sizes, materials, and configurations to be compatible with molding systems.
Technical Characteristics:
• Sizes: 1/4”, 3/8", 1/2”
• Material: Brass
• Port Ends: Push-Lok Hose Barb, Standard Hose Barb
• Interface Seal Options: Silicone, Fluorocarbon
• Other Coupler options include: Straight, 45 degree, 90 degree hose barbs
Markets:
• Industrial die casting
• Injection molding
Features/Benefits:
• Valved couplers have silver colored sleeves for easy visual identification
• Fluorocarbon interface seal option for oil based media
• Standard and Push-Lok hose barb ends available in straight, 45, and 90 degree shapes
• Valved couplers can be used with valved or unvalved nipples
Applications:
• Mold coolant lines
• Die casting equipment
| Action | SKU | Availability | Partner Available | Price | UOM | Coupling Half | Connection Type | Body Size (inch) | Connection Hose I.D. (inch) | Body Material | Flow Rate | Valve Style | Connection Thread Size (inch) | Minimum Operating Temperature | Dimensional Weight | Plating Type | Maximum Operating Pressure | Seal Material | Hex Size | Maximum Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PC506-BP | Backordered | 16 in stock | $42.40/each | EA | Female Coupler | Push-Lok hose barb | 1/2 | 3/4 | BRASS | 12 | Unvalved | na | -20 °F | 0.12464028776978417 lb | na | 200 psi | Silicone | na inch | 400 °F | |
| PC514 | Backordered | Backordered | $53.50/each | EA | Female Coupler | Hose barb, 90 degree | 1/2 | 1/2 | BRASS | 12 | Unvalved | na | -20 °F | 0.1335431654676259 lb | na | 200 psi | Silicone | na inch | 400 °F | |

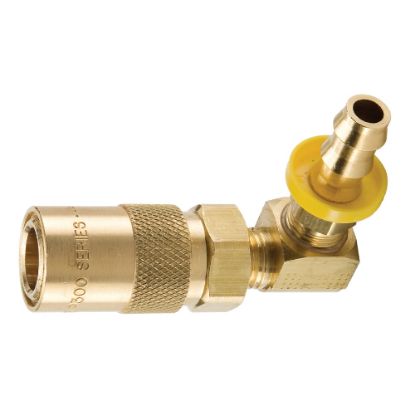

| PC514-BP | Backordered | 1 Limited Stock | $46.59/each | EA | Female Coupler | Push-Lok hose barb, 90 degree | 1/2 | 1/2 | BRASS | 12 | Unvalved | na | -20 °F | 0.12464028776978417 lb | na | 200 psi | Silicone | na inch | 400 °F | |
| PC516 | Backordered | Backordered | $54.05/each | EA | Female Coupler | Hose barb, 90 degree | 1/2 | 3/4 | BRASS | 12 | Unvalved | na | -20 °F | 0.12582258992805753 lb | na | 200 psi | Silicone | na inch | 400 °F | |
| PC516-BP | Backordered | 6 in stock | $58.18/each | EA | Female Coupler | Push-Lok hose barb, 90 degree | 1/2 | 3/4 | BRASS | 12 | Unvalved | na | -20 °F | 0.12464028776978417 lb | na | 200 psi | Silicone | na inch | 400 °F | |
| PC524-BP | Backordered | Backordered | $56.26/each | EA | Female Coupler | Push-Lok hose barb, 45 degree | 1/2 | 1/2 | BRASS | 12 | Unvalved | na | -20 °F | 0.12464028776978417 lb | na | 200 psi | Silicone | na inch | 400 °F | |
| PC526 | Backordered | Backordered | $61.08/each | EA | Female Coupler | Hose barb, 45 degree | 1/2 | 3/4 | BRASS | 12 | Unvalved | na | -20 °F | 0.12582258992805753 lb | na | 200 psi | Silicone | na inch | 400 °F | |

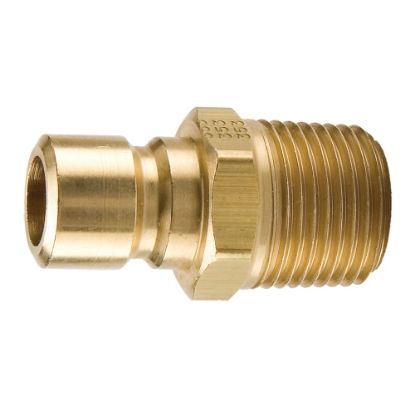

| PN250-25 | Backordered | 152 in stock | $8.50/each | EA | Male Nipple | Male NPTF (extended length) | 1/4 | na | BRASS | 3 | Unvalved | 1/16 - 27 | -20 °F | na | 200 psi | na | 3/8 inch | 400 °F | ||
| PN250-40 | Backordered | 20 in stock | $9.83/each | EA | Male Nipple | Male NPTF (extended length) | 1/4 | na | BRASS | 3 | Unvalved | 1/16 - 27 | -20 °F | na | 200 psi | na | 3/8 inch | 400 °F | ||
| PN250-55 | Backordered | Backordered | $12.90/each | EA | Male Nipple | Male NPTF (extended length) | 1/4 | na | BRASS | 3 | Unvalved | 1/16 - 27 | -20 °F | na | 200 psi | na | 3/8 inch | 400 °F | ||
| PN251 | 10 in stock | 444 in stock | $2.59/each | EA | Male Nipple | Male NPTF | 1/4 | na | BRASS | 3 | Unvalved | 1/8 - 27 | -20 °F | 0.007997601918465227 lb | na | 200 psi | na | 0.44 inch | 400 °F | |
| PN251-25 | Backordered | 18 in stock | $12.61/each | EA | Male Nipple | Male NPTF (extended length) | 1/4 | na | BRASS | 3 | Unvalved | 1/8 - 27 | -20 °F | na | 200 psi | na | 7/16 inch | 400 °F | ||
| PN251-40 | Backordered | 5 in stock | $15.68/each | EA | Male Nipple | Male NPTF (extended length) | 1/4 | na | BRASS | 3 | Unvalved | 1/8 - 27 | -20 °F | na | 200 psi | na | 7/16 inch | 400 °F | ||
| PN251-55 | Backordered | 6 in stock | $21.18/each | EA | Male Nipple | Male NPTF (extended length) | 1/4 | na | BRASS | 3 | Unvalved | 1/8 - 27 | -20 °F | na | 200 psi | na | 7/16 inch | 400 °F | ||
| PN251-70 | Backordered | 50 in stock | $24.59/each | EA | Male Nipple | Male NPTF (extended length) | 1/4 | na | BRASS | 3 | Unvalved | 1/8 - 27 | -20 °F | na | 200 psi | na | 7/16 inch | 400 °F | ||
| PN251F | 20 in stock | 866 in stock | $5.78/each | EA | Male Nipple | Female NPTF | 1/4 | na | Steel | 3 | Unvalved | 1/8 - 27 | -20 °F | 0.007997601918465227 lb | Zinc with clear trivalent chromate | 200 psi | na | 0.50 inch | 400 °F | |
| PN252 | 33 in stock | 165 in stock | $2.81/each | EA | Male Nipple | Male NPTF | 1/4 | na | BRASS | 3 | Unvalved | 1/4 - 18 | -20 °F | 0.007997601918465227 lb | na | 200 psi | na | 0.56 inch | 400 °F | |
| PN252-25 | Backordered | 20 in stock | $8.70/each | EA | Male Nipple | Male NPTF (extended length) | 1/4 | na | BRASS | 3 | Unvalved | 1/4 - 18 | -20 °F | na | 200 psi | na | 9/16 inch | 400 °F | ||
| PN252-40 | Backordered | Backordered | $10.03/each | EA | Male Nipple | Male NPTF (extended length) | 1/4 | na | BRASS | 3 | Unvalved | 1/4 - 18 | -20 °F | na | 200 psi | na | 9/16 inch | 400 °F | ||
| PN252-55 | Backordered | 20 in stock | $13.29/each | EA | Male Nipple | Male NPTF (extended length) | 1/4 | na | BRASS | 3 | Unvalved | 1/4 - 18 | -20 °F | na | 200 psi | na | 9/16 inch | 400 °F |
