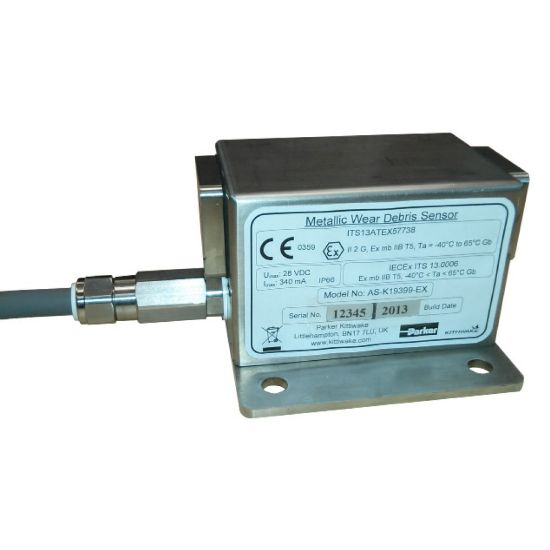

MWDS - Metal Wear Debris Sensor (ATEX/IECEx Haz-area option) - FG-K19400-EX

Name: MWDS - Metal Wear Debris Sensor (ATEX/IECEx Haz-area option) - FG-K19400-EX
SKU: FG-K19400-EX

MWDS differentiates ferrous and non-ferrous metal particles, simultaneously quantifying their metallurgical composition and size in working fluid that has been in contact with machinery parts.

Availability:

Backordered

SKU FG-K19400-EX

$18,662.85

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate	0.3 to 4.5 ms-1
ATEX Specifications Met	II 2 G, Ex mb IIB T5, Ta = -40 to + 65°C	Accuracy	±1 Bin range
Electrical Requirements	18 to 30 VDC	Sensing Range	Electrical sensing coils (inductance)
Technology	Filtration	Weight	2.2 kg
Division	Hydraulic & Industrial Process Filtration Division EMEA	Features	Real-time detecting and reporting of metallic particles in a fluid
Operating Temperature	-20 to 70 °C	Operating Pressure	145 psi
Sensing Method	Ferrography	Brand	PARKER
Cycle Time	30 second	Industry	Marine
Division	Hydraulic & Industrial Process Filtration Division EMEA	Communication Interface	Modbus
Flow Rate	1.3 L/min to 9 L/min	For Fluid Type	Petroleum
Product Type	Condition Monitor	Sensor Connection	Pre-wired 2 metre LSHF cable
Ingress Protection Rating	IP66	Size	90 mm x 132 mm x 150 mm (HWD)
Accessories Included	Instructions, software, cable harness	Options	TEX/IECEx version: Zone 1 (II 2 G, Ex mb IIB T5, Ta = -40 to + 65°C)
Wetted Material	PEEK, FKM, anodised aluminium (ATEX: Stainless Steel (316))	Connection Type	1/2" G (BSP) female ports
Signal Output	LED display
