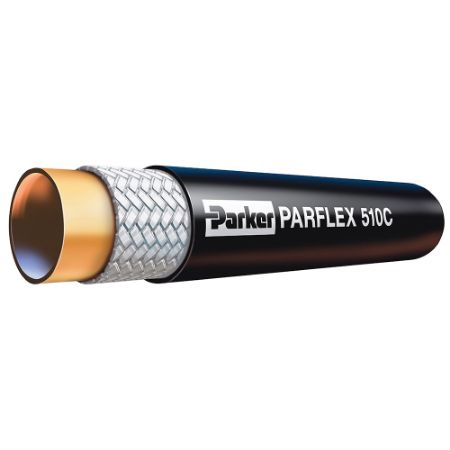

OBSOLETE: Flexible Hose - 510C

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker’s 510C flexible hose features good flexibility and abrasion resistance, delivering smooth installation and added protection for general hydraulic applications with medium pressure requirements. Parflex mobile hoses have inherently clean core tubes and long-length availability that assist in high quantity assembly. The 510C hydraulic hose, offers sufficient noise dampening in power steering systems. This added value has been recognized among operators on turf maintenance equipment that complained of a pulse in the steering column. Also, the volumetric expansion rate of Parflex 510C hose naturally damped the pressure surge, eliminating the pulse in the steering column.

With good abrasion resistance, flexibility, and long length capabilities, the Parflex 510C is the optimal solution for hydraulic applications that require medium pressure service. Review the literature listed under the Product Support tab for further information.

Markets:

• Construction

• Fluid Handling

• Mobile Equipment

• Industrial Hydraulics

• Machine Tool

Features/Benefits:

• Good abrasion resistance for added protection

• Extreme flexibility for simplified routing and installation

• Low coefficient of friction cover

Applications:

• Medium pressure service for both field attachable and permanent fittings

• Turf care equipment

• Machine tool

Certifications/Compliance:

• Meets/Exceeds SAE 100R7 except -2

• MSHA Accepted except -4

Technical Specifications:

• Tube: Copolyester

• Reinforcement: Fiber

• Cover: Polyurethane

• 3/16” and 1/4” working pressure reduced to 3,000 and 2,750 psi respectively when using field attachable couplings

• Hose I.D. is nominal

• Hose O.D. is maximum

View as Grid List

Sort by

Display per page

Action	SKU	Availability	Partner Available	Price	UOM	Hose I.D. (inch)	Hose Style	Minimum Operating Temperature	Disclaimer	Media	Inside Diameter	Minimum Bend Radius	Maximum Operating Temperature	Maximum Operating Pressure	Compatible Fitting	Weight	Outside Diameter	Specifications Met
	510C-4	Backordered	326 in stock	$3.42/foot	FT	1/4	Single	-40 °F	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.	Air	6 mm	38 mm	100 °C	20.7 MPa	56 Series	0.08 kg/m	0.470 inch	SAE 100R7
	510C-6	Backordered	997 in stock	$4.39/foot	FT	3/8	Single	-40 °F	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.	Water	10 mm	51 mm	100 °C	15.5 MPa	51 Series	0.14 kg/m	16.3 mm	SAE 100R7
