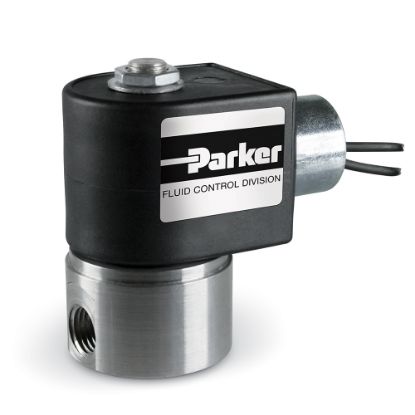

Parker 2-Way Normally Closed, 1/4" NPT General Purpose Solenoid Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's 2-Way Normally Closed 1/4" NPT Solenoid Valves are used in a wide variety of applications ideally suited for general purpose air, liquids and gases. These valves are available in stainless steel and brass construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.
Markets:
• Commercial Equipment
• Food & Beverage
• Industrial Automation
• Oil & Gas
• Process Control
• Transportation
Features/ Benefits:
• High Quality Standards of Skinner® and Gold Ring™ Brand
• Modular Design
• Long Life
• Tight Shutoff
Applications:
• Instrumentation Equipment
• Analyzers and Diagnostic Equipment
• Medical and Dental Equipment
• Portable Welding Equipment
• Spraying Equipment
• Lubrication Equipment
• Beverage Dispensing & Vending machines
• Oil Burners
• Humidification and Misting Equipment
• Mobile Fuel Shut Off
• Textile and Dry Cleaning Equipment
• Commercial Dishwashers
• Commercial Laundry and Dryers
• Air Horns
• Pneumatic Fan Clutch
• Irrigation Equipment
| Action | SKU | Availability | Partner Available | Price | UOM | Coil Type | Voltage (V) | Seal Material | Power (Watts) | Body Material | Flow Factor 1 (Cv) | Orifice 1 Size (inch) | Port Type | Body Material | Port Size | Media | Function | Coil Type | Valve Type | Input Voltage | Seal Material | Actuation Type | Orifice 2 Size | Number of Ports | Flow Coefficient 2 | Coil Specifications Met | Minimum Fluid Temperature | Minimum Pressure Differential | Maximum Fluid Temperature | Power Consumption | Orifice 1 Size | Flow Coefficient 1 | Maximum Pressure Differential |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 71215SN2EN00N0C111P3 | Backordered | Backordered | $147.82/each | EA | 1/2" Conduit, 18" Leads | 110/50-120/60 | NBR | 10 Watts (AC) | Stainless | 0.06 | 3/64 | NPT | Stainless Steel | 1/4 inch | Liquids and Gases | Normally Closed (NC) | 1/2" Conduit, 18" Leads | 2-Way | 110/50-120/60 | NBR | Direct Acting | n/a | 2 | n/a | NEMA 4X | 0 °F | 0 psi | 185 °F | 10 W (AC) | 3/64 inch | 0.06 Cv | 450 psi (AC) | |
| 71215SN2GN00N0C111P3 | Backordered | Backordered | $148.71/each | EA | 1/2" Conduit, 18" Leads | 110/50-120/60 | NBR | 10 Watts (AC) | Stainless | 0.1 | 1/16 | NPT | Stainless Steel | 1/4 inch | Liquids and Gases | Normally Closed (NC) | 1/2" Conduit, 18" Leads | 2-Way | 110/50-120/60 | NBR | Direct Acting | n/a | 2 | n/a | NEMA 4X | 0 °F | 0 psi | 185 °F | 10 W (AC) | 1/16 inch | 0.1 Cv | 350 psi (AC) | |
| 71215SN2KN00N0C111C2 | Backordered | Backordered | $148.31/each | EA | 1/2" Conduit, 18" Leads | 24 VDC | NBR | 10 Watts (DC) | Stainless | 0.18 | 3/32 | NPT | Stainless Steel | 1/4 inch | General Purpose for Air | Normally Closed (NC) | 1/2" Conduit, 18" Leads | 2-Way | 24.0 VDC | NBR | Direct Acting | n/a | 2 | n/a | NEMA 4X | 0 °F | 0 psi | 185 °F | 10 W (DC) | 3/32 inch | 0.18 Cv | 275 psi (DC) | |
| 71215SN2KN00N0C111P3 | Backordered | Backordered | $148.59/each | EA | 1/2" Conduit, 18" Leads | 110/50-120/60 | NBR | 10 Watts (AC) | Stainless | 0.18 | 3/32 | NPT | Stainless Steel | 1/4 inch | General Purpose for Air | Normally Closed (NC) | 1/2" Conduit, 18" Leads | 2-Way | 110/50-120/60 | NBR | Direct Acting | n/a | 2 | n/a | NEMA 4X | 0 °F | 0 psi | 185 °F | 10 W (AC) | 3/32 inch | 0.18 Cv | 275 psi (AC) | |
| 71215SN2KN00N0D100C2 | Backordered | Backordered | $137.64/each | EA | DIN Form A | 24 VDC | NBR | 10 Watts (DC) | Stainless | 0.18 | 3/32 | NPT | Stainless Steel | 1/4 inch | General Purpose for Air | Normally Closed (NC) | DIN Form A | 2-Way | 24.0 VDC | NBR | Direct Acting | n/a | 2 | n/a | NEMA 4X | 0 °F | 0 psi | 185 °F | 10 W (DC) | 3/32 inch | 0.18 Cv | 275 psi (DC) | |
| 71215SN2MN00N0C111C1 | Backordered | 2 Limited Stock | $148.82/each | EA | 1/2" Conduit, 18" Leads | 12 VDC | NBR | 10 Watts (DC) | Stainless | 0.28 | 1/8 | NPT | Stainless Steel | 1/4 inch | Liquids and Gases | Normally Closed (NC) | 1/2" Conduit, 18" Leads | 2-Way | 12.0 VDC | NBR | Direct Acting | n/a | 2 | n/a | NEMA 4X | 0 °F | 0 psi | 185 °F | 10 W (DC) | 1/8 inch | 0.28 Cv | 150 psi (DC) | |
| 71215SN2MN00N0C111C2 | Backordered | 6 in stock | $148.59/each | EA | 1/2" Conduit, 18" Leads | 24 VDC | NBR | 10 Watts (DC) | Stainless | 0.28 | 1/8 | NPT | Stainless Steel | 1/4 inch | General Purpose for Air | Normally Closed (NC) | 1/2" Conduit, 18" Leads | 2-Way | 24.0 VDC | NBR | Direct Acting | n/a | 2 | n/a | NEMA 4X | 0 °F | 0 psi | 185 °F | 10 W (DC) | 1/8 inch | 0.28 Cv | 150 psi (DC) | |
| 71215SN2MN00N0C111P3 | Backordered | 1 Limited Stock | $149.04/each | EA | 1/2" Conduit, 18" Leads | 110/50-120/60 | NBR | 10 Watts (AC) | Stainless | 0.28 | 1/8 | NPT | Stainless Steel | 1/4 inch | General Purpose for Air | Normally Closed (NC) | 1/2" Conduit, 18" Leads | 2-Way | 110/50-120/60 | NBR | Direct Acting | n/a | 2 | n/a | NEMA 4X | 0 °F | 0 psi | 185 °F | 10 W (AC) | 1/8 inch | 0.28 Cv | 200 psi (AC) | |
| 71215SN2MN00N0D100C2 | Backordered | Backordered | $138.02/each | EA | DIN Form A | 24 VDC | NBR | 10 Watts (DC) | Stainless | 0.28 | 1/8 | NPT | Stainless Steel | 1/4 inch | General Purpose for Air | Normally Closed (NC) | DIN Form A | 2-Way | 24.0 VDC | NBR | Direct Acting | n/a | 2 | n/a | NEMA 4X | 0 °F | 0 psi | 185 °F | 10 W (DC) | 1/8 inch | 0.28 Cv | 150 psi (DC) | |
| 71215SN2QN00N0C111P3 | Backordered | 99 in stock | $147.83/each | EA | 1/2" Conduit, 18" Leads | 110/50-120/60 | NBR | 10 Watts (AC) | Stainless | 0.4 | 5/32 | NPT | Stainless Steel | 1/4 inch | Liquids and Gases | Normally Closed (NC) | 1/2" Conduit, 18" Leads | 2-Way | 110/50-120/60 | NBR | Direct Acting | n/a | 2 | n/a | NEMA 4X | 0 °F | 0 psi | 185 °F | 10 W (AC) | 5/32 inch | 0.4 Cv | 110 psi (AC) | |
| 71215SN2SN00N0C111P3 | Backordered | Backordered | $147.82/each | EA | 1/2" Conduit, 18" Leads | 110/50-120/60 | NBR | 10 Watts (AC) | Stainless | 0.5 | 3/16 | NPT | Stainless Steel | 1/4 inch | General Purpose for Air | Normally Closed (NC) | 1/2" Conduit, 18" Leads | 2-Way | 110/50-120/60 | NBR | Direct Acting | n/a | 2 | n/a | NEMA 4X | 0 °F | 0 psi | 185 °F | 10 W (AC) | 3/16 inch | 0.5 Cv | 80 psi (AC) | |
| 7121KBN2NV00N0C111P3 | Backordered | 1 Limited Stock | $134.13/each | EA | 1/2" Conduit, 18" Leads | 110/50-120/60 | FKM | 10 Watts (AC) | BRASS | 0.31 | 1/8 | NPT | Brass | 1/4 inch | General Purpose for Air | Normally Closed (NC) | 1/2" Conduit, 18" Leads | 2-Way | 110/50-120/60 | FKM | Direct Acting | n/a | 2 | n/a | NEMA 4X | 0 °F | 0 psi | 185 °F | 10 W (AC) | 1/8 inch | 0.31 Cv | 145 psi (AC) | |
| 7121KBN2QV00N0C111C2 | Backordered | 7 in stock | $150.00/each | EA | 1/2" Conduit, 18" Leads | 24 VDC | FKM | 10 Watts (DC) | BRASS | 0.52 | 5/32 | NPT | Brass | 1/4 inch | General Purpose for Air | Normally Closed (NC) | 1/2" Conduit, 18" Leads | 2-Way | 24.0 VDC | FKM | Direct Acting | n/a | 2 | n/a | NEMA 4X | 0 °F | 0 psi | 185 °F | 10 W (DC) | 5/32 inch | 0.52 Cv | 60 psi (DC) | |
| 73212BN2MN00N0C111C1 | Backordered | 1 Limited Stock | $183.12/each | EA | 1/2" Conduit, 18" Leads | 12 VDC | NBR | 10 Watts (DC) | BRASS | 0.76 | 1/8 | NPT | Brass | 1/4 inch | Liquids and Gases | Normally Closed (NC) | 1/2" Conduit, 18" Leads | 2-Way | 12.0 VDC | NBR | Pilot | n/a | 2 | n/a | NEMA 4X | 0 °F | 5 psi | 185 °F | 10 W (DC) | 1/8 inch | 0.76 Cv | 300 psi (DC) | |
| 73212BN2MN00N0C111C2 | Backordered | Backordered | $183.11/each | EA | 1/2" Conduit, 18" Leads | 24 VDC | NBR | 10 Watts (DC) | BRASS | 0.76 | 1/8 | NPT | Brass | 1/4 inch | Liquids and Gases | Normally Closed (NC) | 1/2" Conduit, 18" Leads | 2-Way | 24.0 VDC | NBR | Pilot | n/a | 2 | n/a | NEMA 4X | 0 °F | 5 psi | 185 °F | 10 W (DC) | 1/8 inch | 0.76 Cv | 300 psi (DC) |
