Plastic Barbed Fittings, Parker Par-Barbs

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker's Par-Barb fittings are injection molded from high strength chemically inert white nylon and black polypropylene materials. Both materials are FDA and NSF-51 compliant. Par-Barb fittings are specially engineered with a four barb design that generates the maximum gripping and sealing power when combined with a hose clamp. Available in barbed, pipe and garden hose configurations ranging in sizes from 1/8” to 1 ½”.

Use with a variety of rubber tubing and hoses and the following Parker Parflex Division tubing.

• Polyurethane 90-95 Durometer Shore A

• Vinyl

Markets:

• Water

• Beverage

• Semi-conductor

• Filtration

• Food

Features/Benefits:

• Molded from high strength chemically inert thermoplastic materials

• Multiple barb design generates maximum gripping and sealing

• Meets FDA and NSF-51 requirements for food contact

• White Nylon and Black Polypropylene material

• 1/8" I.D. - 1 1/2" I.D.

Applications:

• Water

• Irrigation

• Reverse Osmosis

• Deionized water systems

• Pollution control

Custom configurations and sizes are available upon request. Contact us for additional information.

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Color	Product Style	Connection 1 Type	Connection 2 Size	Connection 2 Type	Connection 2 Thread Size	Connection 2 Hose I.D. (inch)	Connection 1 Size	Shape	Body Material	Configuration	Connection 3 Size	Connection 3 Type	Connection 1 Thread Size	Connection 1 Hose I.D. (inch)	Connection 1 Type	Connection 2 Type	Media	Specifications Met	Color	Configuration	For Fluid Type	Body Material	Maximum Operating Temperature	Shape	Compatible Tube	Connection 1 Size	Connection 2 Size	Connection 3 Size	Connection 3 Type	Vacuum Pressure Rating	Maximum Operating Pressure	Minimum Operating Temperature	Dimensional Weight	Tube Material

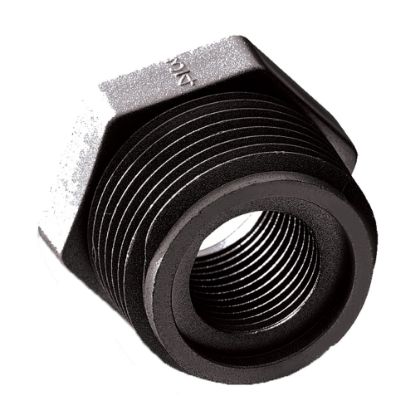

309P-12-2PP	Backordered	Backordered	POR	EA	Black	Female Pipe to Male Pipe	Male Pipe	1/8"	Female Pipe	1/8"	n/a	3/4"	Reducer Bushing	Polypropylene, Black	Pipe to Pipe	N/A	N/A	3/4"	n/a	Male NPT	Female NPT	Water	FDA	Black	Pipe to Pipe	Air	Polypropylene	220 °F	Reducer Bushing	Vinyl	3/4	1/8	N/A	N/A	-29	125 psi	10 °F
309P-12-4N	Backordered	Backordered	POR	EA	White	Female Pipe to Male Pipe	Male Pipe	1/4"	Female Pipe	1/4"	n/a	3/4"	Reducer Bushing	Nylon,White	Pipe to Pipe	N/A	N/A	3/4"	n/a	Male NPT	Female NPT	Water	FDA	White	Pipe to Pipe	Air	Nylon	200 °F	Reducer Bushing	Vinyl	3/4	1/4	N/A	N/A	-29	125 psi	-40 °F
309P-12-4PP	Backordered	Backordered	POR	EA	Black	Female Pipe to Male Pipe	Male Pipe	1/4"	Female Pipe	1/4"	n/a	3/4"	Reducer Bushing	Polypropylene, Black	Pipe to Pipe	N/A	N/A	3/4"	n/a	Male NPT	Female NPT	Water	NSF 51	Black	Pipe to Pipe	Water	Polypropylene	104 °C	Reducer Bushing	Vinyl	3/4	1/4	N/A	N/A	-29	125 psi	10 °F
309P-12-6N	Backordered	Backordered	POR	EA	White	Female Pipe to Male Pipe	Male Pipe	3/8"	Female Pipe	3/8"	n/a	3/4"	Reducer Bushing	Nylon,White	Pipe to Pipe	N/A	N/A	3/4"	n/a	Male NPT	Female NPT	Water	FDA	White	Pipe to Pipe	Air	Nylon	93 °C	Reducer Bushing	Vinyl	3/4	3/8	N/A	N/A	-29	125 psi	-40 °C
309P-12-6PP	Backordered	Backordered	$6.08/each	EA	Black	Female Pipe to Male Pipe	Male Pipe	3/8"	Female Pipe	3/8"	n/a	3/4"	Reducer Bushing	Polypropylene, Black	Pipe to Pipe	N/A	N/A	3/4"	n/a	Male NPT	Female NPT	Water	FDA	Black	Pipe to Pipe	Other Compatible Fluids	Polypropylene	104 °C	Reducer Bushing	Vinyl	3/4	3/8	N/A	N/A	-29	125 psi	10 °F
309P-12-8N	Backordered	Backordered	$4.15/each	EA	White	Female Pipe to Male Pipe	Male Pipe	1/2"	Female Pipe	1/2"	n/a	3/4"	Reducer Bushing	Nylon,White	Pipe to Pipe	N/A	N/A	3/4"	n/a	Male NPT	Female NPT	Water	FDA	White	Pipe to Pipe	Air	Nylon	200 °F	Reducer Bushing	Vinyl	3/4	1/2	N/A	N/A	-29	125 psi	-40 °C	0.5755 lb
309P-12-8PP	Backordered	Backordered	POR	EA	Black	Female Pipe to Male Pipe	Male Pipe	1/2"	Female Pipe	1/2"	n/a	3/4"	Reducer Bushing	Polypropylene, Black	Pipe to Pipe	N/A	N/A	3/4"	n/a	Male NPT	Female NPT	Water	NSF 51	Black	Pipe to Pipe	Air	Polypropylene	220 °F	Reducer Bushing	Vinyl	3/4	1/2	N/A	N/A	-29	8.5 bar	-12 °C
309P-4-2N	Backordered	Backordered	POR	EA	White	Female Pipe to Male Pipe	Male Pipe	1/8"	Female Pipe	1/8"	n/a	1/4"	Reducer Bushing	Nylon,White	Pipe to Pipe	N/A	N/A	1/4"	n/a	Male NPT	Female NPT	Water	FDA	White	Pipe to Pipe	Water	Nylon	93 °C	Reducer Bushing	Vinyl	1/4	1/8	N/A	N/A	-29	8.5 bar	-40 °F	0.5755 lb
309P-4-2PP	Backordered	1 Limited Stock	$5.20/each	EA	Black	Female Pipe to Male Pipe	Male Pipe	1/8"	Female Pipe	1/8"	n/a	1/4"	Reducer Bushing	Polypropylene, Black	Pipe to Pipe	N/A	N/A	1/4"	n/a	Male NPT	Female NPT	Water	NSF 51	Black	Pipe to Pipe	Other Compatible Fluids	Polypropylene	104 °C	Reducer Bushing	Vinyl	1/4	1/8	N/A	N/A	-29	125 psi	10 °F	0.5755 lb
309P-6-2N	Backordered	Backordered	POR	EA	White	Female Pipe to Male Pipe	Male Pipe	1/8"	Female Pipe	1/8"	n/a	3/8"	Reducer Bushing	Nylon,White	Pipe to Pipe	N/A	N/A	3/8"	n/a	Male NPT	Female NPT	Water	FDA	White	Pipe to Pipe	Other Compatible Fluids	Nylon	93 °C	Reducer Bushing	Vinyl	3/8	1/8	N/A	N/A	-29	125 psi	-40 °C
309P-6-4N	Backordered	Backordered	$5.27/each	EA	White	Female Pipe to Male Pipe	Male Pipe	1/4"	Female Pipe	1/4"	n/a	3/8"	Reducer Bushing	Nylon,White	Pipe to Pipe	N/A	N/A	3/8"	n/a	Male NPT	Female NPT	Water	NSF 51	White	Pipe to Pipe	Other Compatible Fluids	Nylon	200 °F	Reducer Bushing	Vinyl	3/8	1/4	N/A	N/A	-29	125 psi	-40 °F	0.5755 lb
309P-6-4PP	10 in stock	Backordered	$5.20/each	EA	Black	Female Pipe to Male Pipe	Male Pipe	1/4"	Female Pipe	1/4"	n/a	3/8"	Reducer Bushing	Polypropylene, Black	Pipe to Pipe	N/A	N/A	3/8"	n/a	Male NPT	Female NPT	Water	FDA	Black	Pipe to Pipe	Water	Polypropylene	104 °C	Reducer Bushing	Vinyl	3/8	1/4	N/A	N/A	-29	125 psi	-12 °C
309P-8-2N	Backordered	Backordered	POR	EA	White	Female Pipe to Male Pipe	Male Pipe	1/8"	Female Pipe	1/8"	n/a	1/2"	Reducer Bushing	Nylon,White	Pipe to Pipe	N/A	N/A	1/2"	n/a	Male NPT	Female NPT	Water	NSF 51	White	Pipe to Pipe	Other Compatible Fluids	Nylon	93 °C	Reducer Bushing	Vinyl	1/2	1/8	N/A	N/A	-29	8.5 bar	-40 °F	0.5755 lb
309P-8-2PP	Backordered	Backordered	POR	EA	Black	Female Pipe to Male Pipe	Male Pipe	1/8"	Female Pipe	1/8"	n/a	1/2"	Reducer Bushing	Polypropylene, Black	Pipe to Pipe	N/A	N/A	1/2"	n/a	Male NPT	Female NPT	Water	NSF 51	Black	Pipe to Pipe	Air	Polypropylene	104 °C	Reducer Bushing	Vinyl	1/2	1/8	N/A	N/A	-29	125 psi	-12 °C
309P-8-4N	15 in stock	Backordered	$3.85/each	EA	White	Female Pipe to Male Pipe	Male Pipe	1/4"	Female Pipe	1/4"	n/a	1/2"	Reducer Bushing	Nylon,White	Pipe to Pipe	N/A	N/A	1/2"	n/a	Male NPT	Female NPT	Water	NSF 51	White	Pipe to Pipe	Other Compatible Fluids	Nylon	93 °C	Reducer Bushing	Vinyl	1/2	1/4	N/A	N/A	-29	125 psi	-40 °C	0.5755 lb
309P-8-4PP	Backordered	Backordered	$5.49/each	EA	Black	Female Pipe to Male Pipe	Male Pipe	1/4"	Female Pipe	1/4"	n/a	1/2"	Reducer Bushing	Polypropylene, Black	Pipe to Pipe	N/A	N/A	1/2"	n/a	Male NPT	Female NPT	Water	FDA	Black	Pipe to Pipe	Air	Polypropylene	104 °C	Reducer Bushing	Vinyl	1/2	1/4	N/A	N/A	-29	8.5 bar	-12 °C	0.5755 lb
309P-8-6N	Backordered	Backordered	POR	EA	White	Female Pipe to Male Pipe	Male Pipe	3/8"	Female Pipe	3/8"	n/a	1/2"	Reducer Bushing	Nylon,White	Pipe to Pipe	N/A	N/A	1/2"	n/a	Male NPT	Female NPT	Water	FDA	White	Pipe to Pipe	Other Compatible Fluids	Nylon	200 °F	Reducer Bushing	Vinyl	1/2	3/8	N/A	N/A	-29	125 psi	-40 °F
309P-8-6PP	Backordered	Backordered	$5.43/each	EA	Black	Female Pipe to Male Pipe	Male Pipe	3/8"	Female Pipe	3/8"	n/a	1/2"	Reducer Bushing	Polypropylene, Black	Pipe to Pipe	N/A	N/A	1/2"	n/a	Male NPT	Female NPT	Water	NSF 51	Black	Pipe to Pipe	Water	Polypropylene	220 °F	Reducer Bushing	Vinyl	1/2	3/8	N/A	N/A	-29	8.5 bar	-12 °C	0.5755 lb
30GH-12	Backordered	385 in stock	$2.03/each	EA	White	Garden Hose Thread	Female Garden Hose	N/A	N/A		n/a	3/4"	Washer	Nylon,White	Pipe to Pipe	N/A	N/A	3/4"	n/a	Garden Hose	N/A	Water, Air, Other Compatible Fluids	FDA, NSF-51	White	Pipe to Pipe		Polypropylene	200 °F	Washer	Vinyl	3/4	n/a	N/A	N/A	-29	8.5 bar	-40 °F	0.5755 lb	Vinyl, Polyurethane, Rubber Hose
313GH-12N	Backordered	Backordered	POR	EA	White	Garden Hose Thread	Female Garden Hose	N/A	N/A		n/a	3/4"	Garden Hose Cap	Nylon,White	Pipe to Pipe	N/A	N/A	3/4"	n/a	Female Garden Hose	N/A	Water, Air, Other Compatible Fluids	FDA, NSF-51	White	Pipe to Pipe		Nylon	200 °F	Garden Hose Cap	Vinyl	3/4	n/a	N/A	N/A	-29	125 psi	-40 °C	0.5755 lb	Vinyl, Polyurethane, Rubber Hose
