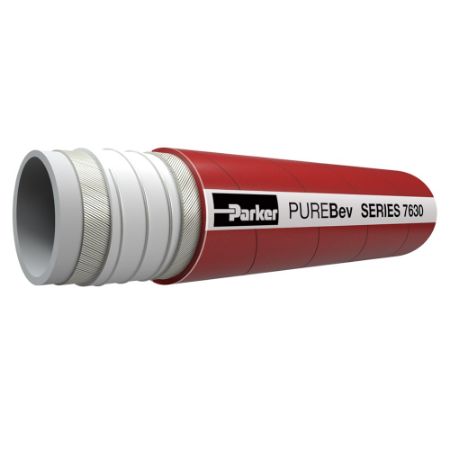

PUREBev Hose Series 7630

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

As part of Parker’s PURE Food and Beverage Hose line, PUREBev Series 7630 is a high quality, low permeation, flexible delivery and suction hose. Our color coded hose allows for simple product selection and is built to withstand harsh processing applications, where hoses are subject to multiple cycles of sanitary cleaning methods, like clean-in-place (CIP) a simplification process using aggressive cleaning agents and high temperatures to maintain sanitary conditions. Produced on stainless steel mandrels the clean innertube is made of FDA-compliant materials and applied in a seamless manner to eliminate voids or gaps where bacteria could accumulate. Series 7630 is designed to convey beer, wine, potable water and many other food and beverage applications. Tube materials consist of premium Butyl and UHMWPE materials.
Markets:
• Food & Beverage
Features/Benefits:
• PURE hose is color coded for simple product selection
• FDA compliant innertube
• Low permeation
Applications:
• Alcohol/ spirits (concentration up to 96%)
• Beer
• Wine
• Potable water

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Application	Hose I.D. (inch)	Meets Industry Specifications	Hose O.D. (inch)	Minimum Operating Temperature	Media	Minimum Burst Pressure	Minimum Bend Radius	Hose Reinforcement Material	Weight	Hose Inner Tube Material	Outside Diameter	Vacuum Pressure Rating	Specifications Met	Cover Structure	Inside Diameter	Maximum Operating Pressure	Maximum Operating Temperature
7630-1000	Backordered	50 in stock	$24.16/foot	FT	Beverage Transfer	1	FDA, DM, CE, 3A,MHLW, REACH, GMP	1.5	-40 °C	Water (Potable Water)	750 psi	3.94 inch	Galvanized Wire Helix	0.69 lb/ft	Butyl	40 mm	90 kPa	MHLW	Smooth	25 mm	16 bar	120 °C
7630-2000	Backordered	84 in stock	$31.85/foot	FT	Beverage Transfer	2	FDA, DM, CE, 3A,MHLW, REACH, GMP	2.6	-40 °C	Food & Beverage (Wine)	48 bar	8.46 inch	Galvanized Wire Helix	1.31 lb/ft	Phtalates Free	66 mm	90 kPa	DM	Smooth	51 mm	250 psi	248 °F
7630-2500	Backordered	Backordered	$38.68/foot	FT	Beverage Transfer	2.5	FDA, DM, CE, 3A,MHLW, REACH, GMP	3.19	-40 °F	Food & Beverage (Beer)	48 bar	275 mm	Synthetic Plies	3.02 kg/m	White	81 mm	26.5 Inch-Hg	CE	Smooth	63.5 mm	16 bar	120 °C
7630-3000	Backordered	Backordered	$46.77/foot	FT	Beverage Transfer	3	FDA, DM, CE, 3A,MHLW, REACH, GMP	3.7	-40 °C	Food & Beverage (Alcohol/Spirits [concentration up to 96%])	750 psi	330 mm	Galvanized Wire Helix	2.63 lb/ft	White	94.0 mm	26.5 Inch-Hg	3A	Smooth	76 mm	250 psi	248 °F
7630-4000	Backordered	Backordered	$61.86/foot	FT	Beverage Transfer	4	FDA, DM, CE, 3A,MHLW, REACH, GMP	4.72	-40 °F	Food & Beverage (Wine)	48 bar	450 mm	Synthetic Plies	3.52 lb/ft	White	120 mm	90 kPa	REACH	Smooth	102 mm	250 psi	120 °C
