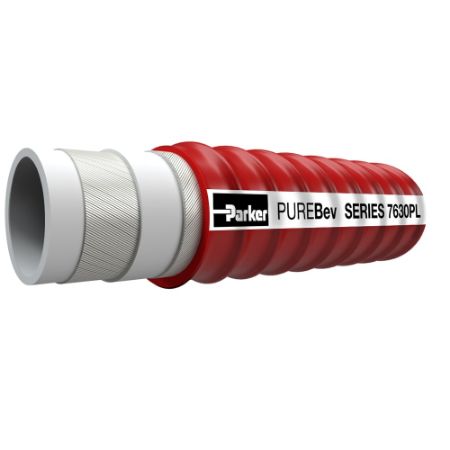

PUREBev Hose Series 7630PL
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
As part of Parker’s PURE Food and Beverage Hose line, PUREBev Series 7630PL is a deeply corrugated, high quality, low permeation, flexible delivery and suction hose. Our color coded hose allows for simple product selection and is built to withstand harsh processing applications, where hoses are subject to multiple cycles of sanitary cleaning methods, like clean-in-place (CIP) a simplification process using aggressive cleaning agents and high temperatures to maintain sanitary conditions. Produced on stainless steel mandrels the clean innertube is made of FDA-compliant materials and applied in a seamless manner to eliminate voids or gaps where bacteria could accumulate. Series 7630PL featuring our PLUS cover confirms exceptional quality and is designed for a wide variety of non-fatty food products including beer and wine and consumable liquids. Tube materials consist of premium Butyl and UHMWPE materials.
Markets:
• Food & Beverage
Features/Benefits:
• PURE hose is color coded for simple product selection
• FDA compliant innertube
• Low permeation
• PLUS Cover
Applications:
• Beer
• Wine
• Potable water
Read More...Markets:
• Food & Beverage
Features/Benefits:
• PURE hose is color coded for simple product selection
• FDA compliant innertube
• Low permeation
• PLUS Cover
Applications:
• Beer
• Wine
• Potable water
| Action | SKU | Availability | Partner Available | Price | UOM | Vacuum Rating (inch of Hg) | Hose I.D. (inch) | Maximum Operating Temperature | Hose Reinforcement Material | Minimum Burst Pressure | Media | Hose Inner Tube Material | Inside Diameter | Cover Material | Vacuum Pressure Rating | Specifications Met | Cover Structure | Maximum Operating Pressure | Weight | Minimum Bend Radius | Cover Color | Minimum Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7630PL-1500 | Backordered | 48 in stock | $39.54/foot | FT | 26.5 | 1.5 | 248 °F | Thermoplastic Wire Helix | 30 bar | Food & Beverage (Wine) | Butyl | 38 mm | Rubber (red outer thermoplastic helix nested within the rubber cover) | 90 kPa | MHLW | Deeply Corrugated | 10 bar | 1.4 kg/m | 3.94 inch | Red (red outer thermoplastic helix nested within the rubber cover) | -13 °F | |
| 7630PL-2000 | Backordered | 51 in stock | $45.87/foot | FT | 26.5 | 2 | 248 °F | Thermoplastic Wire Helix | 30 bar | Food & Beverage (Wine) | Phtalates Free | 51 mm | Rubber (red outer thermoplastic helix nested within the rubber cover) | 90 kPa | GMP | Deeply Corrugated | 150 psi | 1.24 lb/ft | 100 mm | Red (red outer thermoplastic helix nested within the rubber cover) | -25 °C | |
| 7630PL-2500 | Backordered | Backordered | $55.69/foot | FT | 26.5 | 2.5 | 248 °F | Synthetic Plies | 450 psi | Food & Beverage (Consumable Liquids) | Butyl | 63.5 mm | Rubber (red outer thermoplastic helix nested within the rubber cover) | 90 kPa | GMP | Deeply Corrugated | 150 psi | 1.48 lb/ft | 5.12 inch | Red (red outer thermoplastic helix nested within the rubber cover) | -25 °C | |
| 7630PL-3000 | Backordered | 130 in stock | $67.36/foot | FT | 26.5 | 3 | 248 °F | Synthetic Plies | 30 bar | Food & Beverage (Beer) | White | 76 mm | Rubber (red outer thermoplastic helix nested within the rubber cover) | 90 kPa | CE | Deeply Corrugated | 150 psi | 2.83 kg/m | 5.91 inch | Red (red outer thermoplastic helix nested within the rubber cover) | -13 °F | |
| 7630PL-4000 | Backordered | Backordered | $89.07/foot | FT | 26.5 | 4 | 248 °F | Synthetic Plies | 30 bar | Food & Beverage (Beer) | Butyl | 102 mm | Rubber (red outer thermoplastic helix nested within the rubber cover) | 90 kPa | CE | Smooth | 10 bar | 3.66 kg/m | 7.87 inch | Red (red outer thermoplastic helix nested within the rubber cover) | -25 °C |
