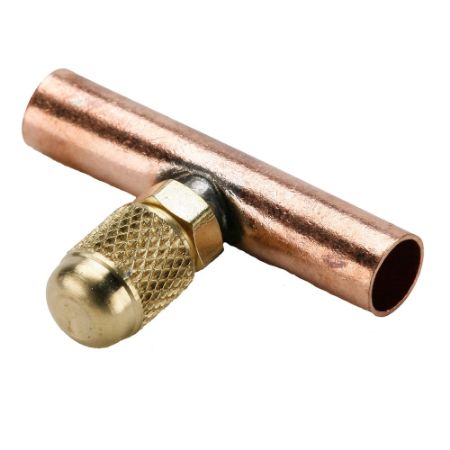

Refrigeration Access Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's access valves are designed to offer convenient, low cost access ports for refrigeration service. Access valves may be installed in any position on either high or low side for quick testing, pressure checking, purging or charging. All tees and crosses are tapped to receive an access core in all ¼” SAE flare ends. Access valves with pipe connections have internal ODS solder cups. All valves are assembled with cap and one valve core. Refrigerant adapters are available with ¼” SAE thread to SAE J2197 ACME thread.
Markets:
• Refrigeration
• Air conditioning
Features/Benefits:
• All brass construction
• Low cost
• Machined in accordance with ARI 720
• Tees and crosses machined to receive an access core in all 1/4" SAE flare ends
• Access valves with pipe connections have internal ODS solder cups
• Adapters with ¼” SAE thread to SAE J2197 ACME thread
• Furnished with finger tight quick seal caps
• Use on either high or low side
Applications:
• Pressure testing
• Purging
• Charging refrigeration lines
Read More...Markets:
• Refrigeration
• Air conditioning
Features/Benefits:
• All brass construction
• Low cost
• Machined in accordance with ARI 720
• Tees and crosses machined to receive an access core in all 1/4" SAE flare ends
• Access valves with pipe connections have internal ODS solder cups
• Adapters with ¼” SAE thread to SAE J2197 ACME thread
• Furnished with finger tight quick seal caps
• Use on either high or low side
Applications:
• Pressure testing
• Purging
• Charging refrigeration lines
| Action | SKU | Availability | Partner Available | Price | UOM | Connection 2 Tube O.D. (inch) | Style | Connection 1 Style | Connection 2 Solder O.D. (inch) | Shape | Connection 2 Thread Size (inch) | Connection 1 Tube O.D. (inch) | Connection 2 Style | Nut Material | Specifications Met | Maximum Operating Temperature | Minimum Operating Temperature | Body Material | Maximum Operating Pressure | Media | Dimensional Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 640QSF-4 | Backordered | 200 in stock | $2.74/each | EA | na | Flare Cap | SAE Male Flare | na | Quick Seal Cap | na | 1/4 | na | Brass | Valve Core Meets ARI Standard 720 | 220 °F | -20 °F | Brass | 34 bar | Fluorocarbon Refrigerants | ||
| 640QSF-6 | Backordered | Backordered | $4.92/each | EA | na | Flare Cap | SAE Male Flare | na | Quick Seal Cap | na | 3/8 | na | Brass | Valve Core Meets ARI Standard 720 | 220 °F | -28 °C | Brass | 500 psi | Fluorocarbon Refrigerants | ||
| 640QSFCR-4 | Backordered | Backordered | $30.50/each | EA | na | Flare Cap with Core Remover | SAE Male Flare | na | Quick Seal Cap | na | 1/4 | na | Brass | Valve Core Meets ARI Standard 720 | 220 °F | -28 °C | Brass | 34 bar | Fluorocarbon Refrigerants | ||
| 880AC-8-4 | Backordered | 3 in stock | $19.63/each | EA | na | Female Flare to ACME Threaded Male | Male ACME | na | Refrigerant Adapter | 1/4 | 1/2-16 | Female flare | Brass | Valve Core Meets ARI Standard 720 | 220 °F | -20 °F | Brass | 500 psi | Fluorocarbon Refrigerants | ||
| 881AC-8-4 | Backordered | 8 in stock | $41.21/each | EA | na | Male Flare to ACME Threaded Female | Female ACME | na | Refrigerant Adapter | 1/4 | 1/2-16 | Male Flare | Brass | Valve Core Meets ARI Standard 720 | 220 °F | -28 °C | Brass | 34 bar | Fluorocarbon Refrigerants | ||
| 88AC-8-2 | Backordered | Backordered | $10.91/each | EA | na | Pipe to ACME Threaded Male | Male ACME | na | Refrigerant Adapter | 1/8 | 1/2-16 | Male Pipe | Brass | Valve Core Meets ARI Standard 720 | 104 °C | -28 °C | Brass | 500 psi | Fluorocarbon Refrigerants | ||
| AVC1-4 | Backordered | 2 Limited Stock | $85.51/each | EA | 1/4 | Flare to Pipe | SAE Male Flare | 5/16 | Male Cross | 1/4 | 1/4 | Male Pipe | Brass | Valve Core Meets ARI Standard 720 | 220 °F | -20 °F | Brass | 34 bar | Fluorocarbon Refrigerants | ||
| AVE1-2 | Backordered | Backordered | $13.70/each | EA | na | Flare to Pipe | SAE Male Flare | na | 90° Elbow | 1/4 | 1/4 | Male Pipe | Brass | Valve Core Meets ARI Standard 720 | 104 °C | -28 °C | Brass | 34 bar | Fluorocarbon Refrigerants | 0.5518884892086331 lb | |
| AVT3-2 | Backordered | Backordered | $68.53/each | EA | na | Flare to Male Pipe | SAE Male Flare | 1/4 | Male Run Tee | 1/8 | 1/4 | Male Pipe | Brass | Valve Core Meets ARI Standard 720 | 104 °C | -28 °C | Brass | 34 bar | Fluorocarbon Refrigerants | ||
| AVT3-4 | Backordered | Backordered | $14.37/each | EA | na | Flare to Male Pipe | SAE Male Flare | 5/16 | Male Run Tee | 1/4 | 1/4 | Male Pipe | Brass | Valve Core Meets ARI Standard 720 | 104 °C | -28 °C | Brass | 34 bar | Fluorocarbon Refrigerants | ||
| AVTS-4 | Backordered | 712 in stock | $20.29/each | EA | 1/4 | Flare to Solder | SAE Male Flare | 3/8 | Solder Tee | na | 1/4 | Solder | Brass | Valve Core Meets ARI Standard 720 | 220 °F | -28 °C | Brass | 34 bar | Fluorocarbon Refrigerants | ||
| AVTS4-4 | Backordered | Backordered | $45.65/each | EA | 1/4 | Flare to Female Swivel Tee | SAE Male Flare | na | Female Run Swivel Tee | na | 1/4 | Flare | Brass | Valve Core Meets ARI Standard 720 | 220 °F | -28 °C | Brass | 500 psi | Fluorocarbon Refrigerants | ||
| AVTS4D-4 | Backordered | Backordered | $44.10/each | EA | 1/4 | Flare to Female Swivel Tee with Depressor | SAE Male Flare | na | Female Run Swivel Tee | na | 1/4 | Flare | Brass | Valve Core Meets ARI Standard 720 | 220 °F | -20 °F | Brass | 500 psi | Fluorocarbon Refrigerants | ||
| AVTS-6 | Backordered | Backordered | $22.77/each | EA | 3/8 | Flare to Solder | SAE Male Flare | 1/2 | Solder Tee | na | 1/4 | Solder | Brass | Valve Core Meets ARI Standard 720 | 220 °F | -28 °C | Brass | 34 bar | Fluorocarbon Refrigerants | 0.040467625899280574 lb | |
| AVTS6-4 | Backordered | Backordered | $32.40/each | EA | 1/4 | Flare to Female Branch Tee | SAE Male Flare | na | Female Branch Swivel Tee | na | 1/4 | Flare | Brass | Valve Core Meets ARI Standard 720 | 220 °F | -20 °F | Brass | 500 psi | Fluorocarbon Refrigerants | ||
| AVTS6D-4 | Backordered | Backordered | $36.45/each | EA | 1/4 | Flare to Female Branch Tee with Depressor | SAE Male Flare | na | Female Branch Swivel Tee | na | 1/4 | Flare | Brass | Valve Core Meets ARI Standard 720 | 104 °C | -28 °C | Brass | 34 bar | Fluorocarbon Refrigerants | ||
| AVTS-8 | Backordered | Backordered | $26.76/each | EA | 1/2 | Flare to Solder | SAE Male Flare | na | Solder Tee | na | 1/4 | Solder | Brass | Valve Core Meets ARI Standard 720 | 220 °F | -20 °F | Brass | 500 psi | Fluorocarbon Refrigerants | ||
| AVU1-2 | Backordered | 1 Limited Stock | $8.19/each | EA | na | Flare to Male Pipe | SAE Male Flare | 1/4 | Male Connector | 1/8 | 1/4 | Male Pipe | Brass | Valve Core Meets ARI Standard 720 | 220 °F | -28 °C | Brass | 34 bar | Fluorocarbon Refrigerants | 0.5518884892086331 lb | |
| AVU1-4 | Backordered | Backordered | $9.14/each | EA | na | Flare to Male Pipe | SAE Male Flare | 5/16 | Male Connector | 14 | 1/4 | Male Pipe | Brass | Valve Core Meets ARI Standard 720 | 104 °C | -20 °F | Brass | 500 psi | Fluorocarbon Refrigerants | 0.5518884892086331 lb | |
| AVU2-4 | Backordered | Backordered | $26.13/each | EA | 1/4 | Flare to Flare | SAE Male Flare | na | Union | na | 1/4 | Flare | Brass | Valve Core Meets ARI Standard 720 | 220 °F | -28 °C | Brass | 500 psi | Fluorocarbon Refrigerants |
