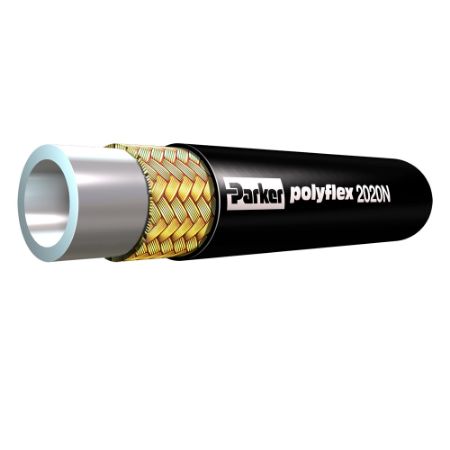

Small Bore High Pressure Mini Hydraulic Hose – 2020N

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High pressure 2020N Polyflex hoses feature a very small hose I.D. and are rated up to 6,890 psi. They are used anywhere high pressure services require a very small hose O.D. such as mini-hydraulic and gas applications. Parker 2020N hose assemblies feature extremely long lengths which reduce potential leak points by eliminating multiple adaptors and they show low dimensional change under pressure, resulting in excellent response times with very low pressure drops.

Markets:
• Upstream Oil & Gas
• Land-based and offshore
• Industrial

Features/Benefits:
• Small I.D. hose with compact O.D.
• Good flexibility
• Continuous long lengths without splices
• Available in twin line constructions

Applications:
• Mini-hydraulic systems
• Gas applications
• Measuring systems
• Diagnostic systems

View as Grid List

Sort by

Display per page

Action	SKU	Availability	Partner Available	Price	UOM	Hose I.D. (size)	Minimum Operating Temperature	Specifications Met	Design Factor	Maximum Operating Temperature	Cover Material	Maximum Operating Pressure	Media	Weight	Inside Diameter	Outside Diameter	Compatible Fitting	Minimum Bend Radius	Hose Inner Tube Material	Hose Reinforcement Material	Size
	2020N-02V30	Backordered	569 in stock	$6.32/foot	FT	-2	-40 °C	N/A	4:1	212 °F	Polyurethane	5800 psi	Petroleum Hydraulic Fluids	0.02 kg/m	3.2 mm	0.240 inch	RX Series	30 mm	Conductive	1 Braid of High Tensile Synthetic Fiber	-2
