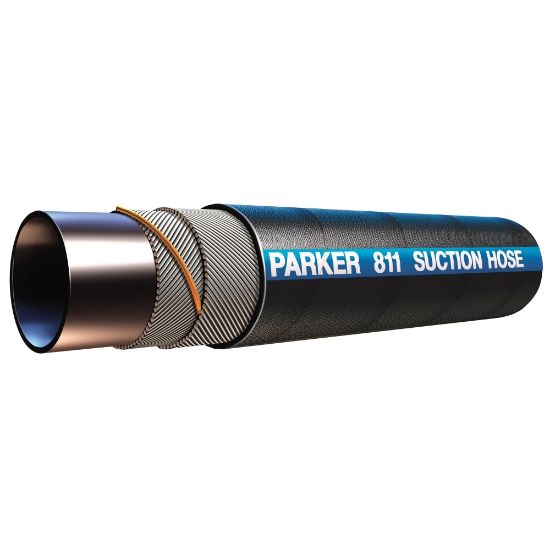

811-20 - Suction and Return Line Hose 62-300 PSI – 811 Hose

Name: 811-20 - Suction and Return Line Hose 62-300 PSI – 811 Hose
SKU: 811-20
Price: 23.07 USD
Availability: InStock

Parker’s 811 hose is a suction and return line hose that has a working pressure range of 62-300 PSI which is designed for high temperature applications.

Availability:

422 in stock

Olivette, MO	155
Joplin, MO	121
Springfield, MO	112
Kansas City, KS	29
TOPEKA, KS	3

Partner Available:

4735 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 811-20

$23.07/foot

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-20
Minimum Operating Temperature	-40 °C	Maximum Operating Temperature	100 °C
Minimum Bend Radius	102 mm	Inside Diameter	31.8 mm
Cover Material	Synthetic Rubber	Hose Cover Type	Standard Cover
Compatible Fitting	43 Series	Hose Inner Tube Material	Synthetic Rubber
Nominal Hose Inside Diameter	31 mm	Media	Lubricants
Outside Diameter	45 mm	Weight	0.82 lb/ft
Maximum Operating Pressure	50 psi (w/ 88HC)	Specifications Met	SAE 100R4
Vacuum Pressure Rating	25 Inch-Hg	Hose Reinforcement Material	Multiple Layers of Spiral Fiber with Wire Helix
