Triple-Lok® 37° Flare JIC Tube Fittings and Adapters
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's 37° Flare JIC tube fittings and adapters, Triple-Lok®, meet the requirements of both SAE J514 and ISO 8434-2 and offer the industry's broadest offering of port ends. The design has a small metal to metal seal area which results in a compact design, low assembly torque, high temperature and high pressure capability.
Markets:
• Construction
• Military Ground Systems
• Aerial Lift
• Agriculture
• Material Handling
• Military Marine
• Engine Transmission
Features/Benefits:
• Easily adaptable to inch tube, metric tube and hose giving it worldwide acceptance.
• Vast selection of port end options, including SAE Straight Thread O-ring Boss (ORB), NPTF, BSPP-ED, BSPP-O-ring Retaining Ring (ORR), BSPP, BSPT, ISO 6149, Metric-O-ring Retaining Ring (ORR), and Metric-ED
• Parker’s Robust Port Stud on adjustable ports is manufactured with a longer locknut virtually eliminating washer damage and potential leaks, as well as making assembly virtually mistake-proof. This feature improves customer internal efficiencies and reduces rework costs resulting from backup washer damage commonly seen with traditional SAE adjustable port ends in the market.
• Steel fittings come standard with ToughShield Plus plating which substantially exceeds the SAE corrosion hour requirements for red rust, lasting up to 3,000 hours without red rust as found by an independent test facility (tested to ASTM B117/ISO 9227). This enhanced performance provides customers with a competitive advantage through less downtime and extended equipment life, leading to increased revenues and reduced warranty costs.
• Stainless Steel nuts have a coating to prevent galling.
• Available in steel, stainless steel, and brass in sizes 1/8” - 2 ½” with working pressures up to 7500 psi.
Applications:
• Hydraulic fluid and gas handling connections
| Action | SKU | Availability | Partner Available | Price | UOM | Body Material | Connection Type | Connection 4 Size | Specifications Met | Maximum Dynamic Pressure | Connection 4 Tube Outside Diameter | Shape | Connection 1 Size | Connection 2 Size | Connection 3 Size | Connection 2 Thread Size | Connection 3 Thread Size | Connection 1 Tube Outside Diameter | Connection 2 Tube Outside Diameter | Connection 3 Tube Outside Diameter | O-Ring Material | Dimensional Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 DTX-SS | Backordered | Backordered | $128.12/each | EA | Stainless Steel | 37° Flare | na | SAE J514 | 3000 psi | na | 90° Elbow | Male 37° Flare | Female NPT/NPTF | na | na | na | 5/8 inch | na | na | na | ||

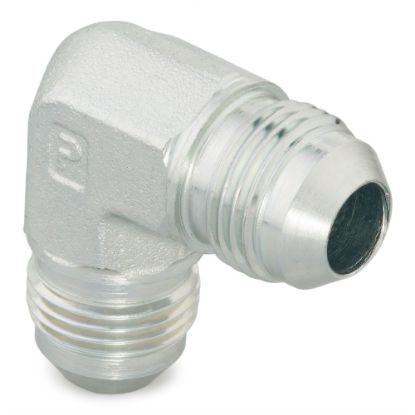

| 10 ETX-B | Backordered | 2 Limited Stock | $39.76/each | EA | Brass | 37° Flare | na | SAE J514 | 3300 psi | na | 90° Elbow | Male 37° Flare | Male 37° Flare | na | na | na | 5/8 inch | 5/8 inch | na | na | ||
| 10 ETX-S | 24 in stock | 360 in stock | $15.49/each | EA | Steel | 37° Flare | na | SAE J514 | 5000 psi | na | 90° Elbow | Male 37° Flare | Male 37° Flare | na | na | na | 5/8 inch | 1/2 inch | na | na | 0.05618255395683453 lb | |
| 10 ETX-SS | Backordered | 8 in stock | $78.95/each | EA | Stainless Steel | Tube to Tube | na | SAE J514 | 5000 psi | na | 90° Elbow | Male 37° Flare | Male 37° Flare | na | na | na | 14, 15, 16 mm | 5/8 inch | na | na | 0.07913669064748201 lb | |

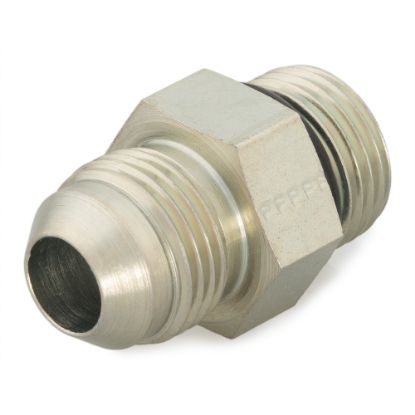

| 10 F5OX-S | 105 in stock | 1876 in stock | $6.10/each | EA | Steel | 37° Flare | na | SAE J514 | 5000 psi | na | Straight | Male 37° Flare | Male SAE-ORB | na | na | na | 5/8 inch | na | na | 90 Durometer Nitrile | 0.06168277877697842 lb | |
| 10 F5OX-S FKM | Backordered | Backordered | $7.39/each | EA | Steel | 37° Flare | na | SAE J514 | 5000 psi | na | Straight | Male 37° Flare | Male SAE-ORB | na | 7/8-14 inch | na | 5/8 inch | na | na | 90 Durometer Fluorocarbon | ||
| 10 F5OX-S ZJ | Backordered | Backordered | POR | EA | Steel, Zinc Nickel | 37° Flare | na | SAE J514 | 5000 psi | na | Straight | Male 37° Flare | Male SAE-ORB | na | 7/8-14 inch | na | 5/8 inch | na | na | 90 Durometer Nitrile | ||
| 10 F5OX-SS | Backordered | 13 in stock | $57.63/each | EA | Stainless Steel | 37° Flare | na | SAE J514 | 6000 psi | na | Straight | Male 37° Flare | Male SAE-ORB | na | na | na | 14, 15, 16 mm | na | na | 90 Durometer Nitrile | 0.07913669064748201 lb | |
| 10 F5OX-SS FKM | Backordered | Backordered | $69.50/each | EA | Stainless Steel | 37° Flare | na | SAE J514 | 6000 psi | na | Straight | Male 37° Flare | Male SAE-ORB | na | 7/8-14 inch | na | 14, 15, 16 mm | na | na | 90 Durometer Fluorocarbon | ||

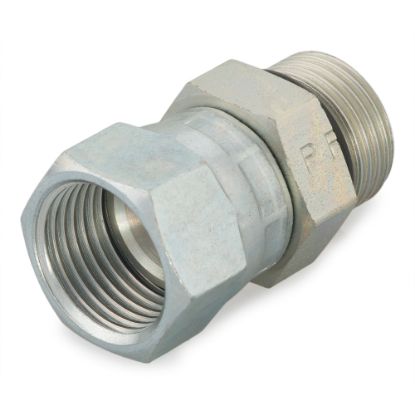

| 10 F65OX-S | 9 in stock | 216 in stock | $36.04/each | EA | Steel | 37° Flare | na | SAE J514 | 5000 psi | na | Straight | Female 37° Flare Swivel | Male SAE-ORB | na | na | na | 14, 15, 16 mm | na | na | 90 Durometer Nitrile | 0.07913669064748201 lb | |
| 10 F65OX-S FKM | Backordered | Backordered | $43.68/each | EA | Steel | 37° Flare | na | SAE J514 | 5000 psi | na | Straight | Female 37° Flare Swivel | Male SAE-ORB | na | na | na | 5/8 inch | na | na | 90 Durometer Fluorocarbon | ||
| 10 F65OX-SS | Backordered | Backordered | $151.27/each | EA | Stainless Steel | Tube to SAE-ORB | na | SAE J514 | 6000 psi | na | Straight | Female 37° Flare Swivel | Male SAE-ORB | na | na | na | 5/8 inch | na | na | 90 Durometer Nitrile | ||

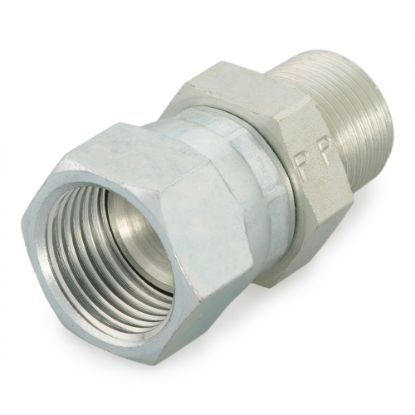

| 10 F6X-S | 23 in stock | 699 in stock | $17.81/each | EA | Steel | 37° Flare | na | SAE J514 | 5000 psi | na | Straight | Female 37° Flare Swivel | Male NPT/NPTF | na | na | na | 14, 15, 16 mm | na | na | na | 0.07742805755395683 lb | |
| 10 F6X-SS | Backordered | Backordered | $162.45/each | EA | Stainless Steel | 37° Flare | na | SAE J514 | 5000 psi | na | Straight | Female 37° Flare Swivel | Male NPT/NPTF | na | na | na | 14, 15, 16 mm | na | na | na | 0.07913669064748201 lb | |
| 10 FF5OX-S | 4 in stock | 44 in stock | $14.20/each | EA | Steel | 37° Flare | na | SAE J514 | 5000 psi | na | Straight | Male 37° Flare | Male SAE-ORB | na | na | na | 5/8 inch | na | na | 90 Durometer Nitrile | 0.12464028776978417 lb | |
| 10 FF5OX-S FKM | Backordered | Backordered | $17.20/each | EA | Steel | 37° Flare | na | SAE J514 | 5000 psi | na | Straight | Male 37° Flare | Male SAE-ORB | na | 7/8-14 inch | na | 5/8 inch | na | na | 90 Durometer Fluorocarbon | ||
| 10 FF5OX-SS | Backordered | Backordered | $95.75/each | EA | Stainless Steel | 37° Flare | na | SAE J514 | 6000 psi | na | Straight | Male 37° Flare | Male SAE-ORB | na | 7/8-14 inch | na | 5/8 inch | na | na | 90 Durometer Nitrile | ||
| 10 FFTX-S | Backordered | Backordered | $35.39/each | EA | Steel | 37° Flare | na | SAE J514 | 5000 psi | na | Straight | Male 37° Flare | Male NPT/NPTF | na | 1/2-14 inch | na | 14, 15, 16 mm | na | na | na | ||
| 10 FNTX-B | Backordered | 7 in stock | $25.38/each | EA | Brass | na | na | SAE J514 | 3300 psi | na | Cap | Female 37° Flare | na | na | na | na | 14, 15, 16 mm | na | na | na | 0.039568345323741004 lb | |
| 10 FNTX-S | 247 in stock | 3043 in stock | $5.58/each | EA | Steel | na | na | SAE J514 | 5000 psi | na | Cap | Female 37° Flare | na | na | na | na | 14, 15, 16 mm | na | na | na | 0.03871402877697842 lb |
