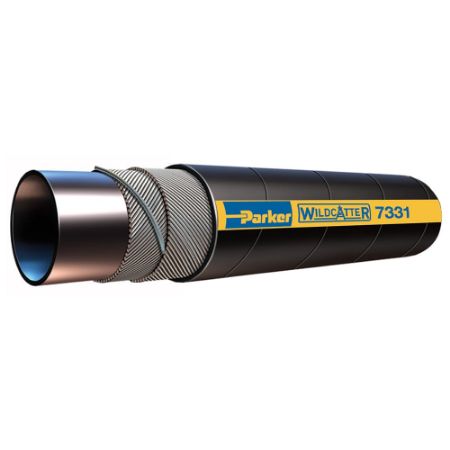

WILDCATTER® Oilfield Multipurpose Fracking Hose, Series 7331
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's Series 7331 Wildcatter Oilfield Multipurpose Fracking Hose is compatible with many oilfield media and provides excellent service across multiple drill site applications. The hose provides full suction capability and is crush resistant and kink resistant, and the cover resists abrasion, oil and weathering for durable performance. Series 7331 is qualified with permanent crimp couplings for a safe and secure connection, offers product consolidation opportunities and long continuous lengths for maximum inventory versatility, and provides robust service life in challenging applications.
The Wildcatter trade name indicates the product is designed and manufactured for premium service in oilfield applications. However, Wildcatter products may be used in other industries, markets and applications where the product meets the required performance criteria.
Markets:
• Industrial
• Oil & Gas
Features/Benefits:
• Tube: Black Class A nitrile for exceptional fuel and oil resistance to 200°F.
• Reinforcement: Multiple textile plies for strength and durability, and a wire helix for full suction capability and a path to conduct a static charge to ground.
• Cover: Black nitrile blend for oil and weathering resistance and durability.
• Lengths: Available in optional 200-foot continuous lengths through 4" ID for maximum inventory versatility and minimum scrap.
• Couplings: Qualified with steel crimp couplings for a durable, safe and secure connection.
Applications:
- media
• Biodiesel (to B20 in dedicated service)
• Brine
• Mild chemicals
• Diesel
• Drilling mud
• Ethanol
• Fracking fluids
• Gasoline
• Petroleum waste
• Slurries
• Water
- usage
• Bulk loading/unloading
• Tank to tank transfer
• Blender units
• Hydration units
• Manifolds & pumps
Safety/Technical:
• Design Factor: 4:1
• Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to NAHAD Industrial Hose Assembly Guidelines
| Action | SKU | Availability | Partner Available | Price | UOM | Hose I.D. (inch) | Minimum Operating Temperature | Specifications Met | Design Factor | Package Type | Length per Package | Minimum Bend Radius | Cover Color | Inside Diameter | Hose Inner Tube Material | Media | Maximum Operating Pressure | Outside Diameter | Cover Structure | Vacuum Pressure Rating | Hose Reinforcement Material | Weight | Cover Material | Maximum Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7331-2000 | Backordered | Backordered | $23.34/foot | FT | 2 | -40 °C | N/A | 4:1 | Coil | 100 ft | 8 inch | Black | 2 inch | Black | Fuels - Check fuel type with our catalogue chart. | 27.6 bar | 64.8 mm | Wrapped | Full | Multiple Plies of Textile with Wire Helix | 1.16 lb/ft | Nitrile Blend | 92 °C | |
| 7331-3000 | Backordered | Backordered | $35.00/foot | FT | 3 | -40 °C | N/A | 4:1 | Coil | 100 ft | 15 inch | Black | 76.2 mm | Black | Fuels - Check fuel type with our catalogue chart. | 27.6 bar | 91.7 mm | Wrapped | Full | Multiple Plies of Textile with Wire Helix | 2.95 kg/m | Nitrile Blend | 92 °C | |
| 7331-4000 | Backordered | 271 in stock | $47.57/foot | FT | 4 | -40 °C | N/A | 4:1 | Coil | 100 ft | 20 inch | Black | 4 inch | Nitrile | Fuels - Check fuel type with our catalogue chart. | 27.6 bar | 4.890 inch | Wrapped | Full | Multiple Plies of Textile with Wire Helix | 3.9 lb/ft | Nitrile Blend | 92 °C |
