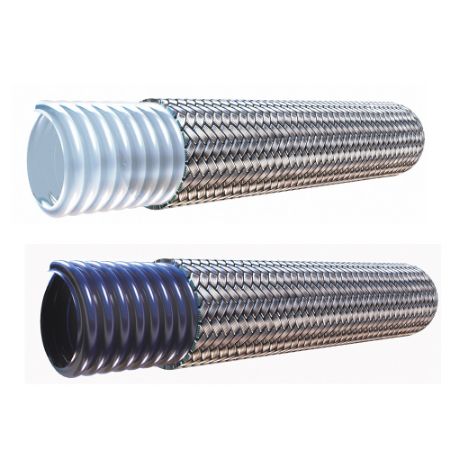

Convoluted PTFE Hose with 304 Stainless Steel Braid - SCW/SCB
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker SCW and SCB Convoluted PTFE hoses 304SS braid are seamless, low profiled, convolutions that withstand extreme flexing for fluid handling, chemical transfer, paint and semiconductor applications. The cutting-edge, highly developed design offers exceptional corrosion resistance and high temperature tolerance for added protection under numerous operating conditions. In addition, the FDA compliant core tube of SCW is manufactured with a smooth, rounded, helical-shaped convolution, allowing the hose to be self-draining and easy to clean. The durable 304 Stainless Steel reinforcement for SCB and SCW leads to a long life expectancy and makes the hose less susceptible to cracking from stress or flexing, in comparison to metal hoses or other fluoropolymer hoses, when used within designated operating parameters. Download the literature on the Product Support tab for more information.
Markets:
• Fluid Handling
• Paint
• Semiconductor
• Chemical
• Food & Beverage
Features/Benefits:
• High temperature hose
• Excellent corrosion resistance
• Seamless
• Low profile
• Self-draining
• Withstands extreme flexing
• Environmentally safe; low effusion
• Long life expectancy
Applications:
• Fluid handling
• Chemical transfer
• Paint
• Semiconductor
CCompliance:
• FDA 21 CFR 177.1550 (core tube)
• USP Class VI (core tube)
Technical Specifications:
• Not suggested for steam-cold water cycling applications
• Working and burst pressures rated at 73°F (23°C)
• Hose dimensions are nominal
• Used with PAGE fittings and crimp collar SC300 only
• Cannot be used with 90, 91N or 93N Series fittings
Read More...Markets:
• Fluid Handling
• Paint
• Semiconductor
• Chemical
• Food & Beverage
Features/Benefits:
• High temperature hose
• Excellent corrosion resistance
• Seamless
• Low profile
• Self-draining
• Withstands extreme flexing
• Environmentally safe; low effusion
• Long life expectancy
Applications:
• Fluid handling
• Chemical transfer
• Paint
• Semiconductor
CCompliance:
• FDA 21 CFR 177.1550 (core tube)
• USP Class VI (core tube)
Technical Specifications:
• Not suggested for steam-cold water cycling applications
• Working and burst pressures rated at 73°F (23°C)
• Hose dimensions are nominal
• Used with PAGE fittings and crimp collar SC300 only
• Cannot be used with 90, 91N or 93N Series fittings
| Action | SKU | Availability | Partner Available | Price | UOM | Hose I.D. (inch) | Hose Style | Media | Maximum Operating Pressure | Outside Diameter | Size | Weight | Cover Material | Inside Diameter | Compatible Fitting | Specifications Met | Minimum Bend Radius | Vacuum Pressure Rating | Hose Inner Tube Material | Hose Reinforcement Material | Maximum Operating Temperature | Minimum Operating Temperature | Design Factor | Color | Dash Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 04-SCB | Backordered | Backordered | $20.17/foot | FT | 1/4 | Static Dissipative | Air | 104 bar | 0.460 inch | -4 | 0.11 kg/m | n/a | 6 mm | PAGE Series | USP Class VI (compliant core tube) | 3/4 inch | 711.2 mm-Hg | Polytetrafluoroethylene (PTFE) Static Dissipative | Braid of 304 Stainless Steel | 260 °C | -73 °C | 4:1 | |||
| 04-SCW | Backordered | Backordered | $17.36/foot | FT | 1/4 | Natural | Industrial Fluids | 104 bar | 11.7 mm | -4 | 0.08 lb/ft | n/a | 6 mm | PAGE Series | FDA (Core Tube) | 19 mm | 28 Inch-Hg | Polytetrafluoroethylene (PTFE) | Braid of 304 Stainless Steel | 500 °F | -100 °F | 4:1 | |||
| 06-SCB | Backordered | Backordered | $28.37/foot | FT | 3/8 | Static Dissipative | Chemicals | 104 bar | 0.560 inch | -6 | 0.1 lb/ft | n/a | 10 mm | PAGE Series | USP Class VI (compliant core tube) | 1 inch | 28 Inch-Hg | Polytetrafluoroethylene (PTFE) Static Dissipative | Braid of 304 Stainless Steel | 260 °C | -73 °C | 4:1 | |||
| 06-SCW | Backordered | Backordered | $25.57/foot | FT | 3/8 | Natural | Water | 1500 psi | 0.560 inch | -6 | 0.1 lb/ft | n/a | 3/8 inch | PAGE Series | USP Class VI (compliant core tube) | 25 mm | 28 Inch-Hg | Polytetrafluoroethylene (PTFE) | Braid of 304 Stainless Steel | 500 °F | -100 °F | 4:1 | |||
| 08-SCB | Backordered | 53 in stock | $32.37/foot | FT | 1/2 | Static Dissipative | Industrial Fluids | 104 bar | 0.760 inch | -8 | 0.16 lb/ft | n/a | 13 mm | PAGE Series | USP Class VI (compliant core tube) | 1-1/2 inch | 28 Inch-Hg | Polytetrafluoroethylene (PTFE) Static Dissipative | Braid of 304 Stainless Steel | 500 °F | -73 °C | 4:1 | |||
| 08-SCW | Backordered | Backordered | $28.85/foot | FT | 1/2 | Natural | Industrial Fluids | 104 bar | 19.3 mm | -8 | 0.23 kg/m | n/a | 13 mm | PAGE Series | FDA (Core Tube) | 38 mm | 711.2 mm-Hg | Polytetrafluoroethylene (PTFE) | Braid of 304 Stainless Steel | 500 °F | -100 °F | 4:1 | |||
| 12-SCB | Backordered | 59 in stock | $43.70/foot | FT | 3/4 | Static Dissipative | Water | 8.3 MPa | 26.2 mm | -12 | 0.27 lb/ft | n/a | 3/4 inch | PAGE Series | USP Class VI (compliant core tube) | 2 inch | 28 Inch-Hg | Polytetrafluoroethylene (PTFE) Static Dissipative | Braid of 304 Stainless Steel | 500 °F | -73 °C | 4:1 | |||
| 12-SCW | Backordered | 13 in stock | $38.97/foot | FT | 3/4 | Natural | Chemicals | 8.3 MPa | 1.030 inch | -12 | 0.27 lb/ft | n/a | 19 mm | PAGE Series | FDA (Core Tube) | 2 inch | 28 Inch-Hg | Polytetrafluoroethylene (PTFE) | Braid of 304 Stainless Steel | 260 °C | -100 °F | 4:1 | |||
| 16-SCB | Backordered | 14 in stock | $56.00/foot | FT | 1 | Static Dissipative | Air | 1000 | 1.340 | -16 | 0.37 | n/a | 1 | PAGE Series | USP Class VI (compliant core tube) | 2-1/2 | 28 | Polytetrafluoroethylene (PTFE) Static Dissipative | Braid of 304 Stainless Steel | 500 | -100 | 4:1 | |||
| 16-SCW | Backordered | 5 in stock | $44.22/each | EA | 1 | Natural | Air | 1000 | 34 | -16 | 0.37 | n/a | 1 | PAGE Series | FDA (Core Tube) | 2-1/2 | 28 | Polytetrafluoroethylene (PTFE) | Braid of 304 Stainless Steel | 500 | -100 | 4:1 | |||
| 20-SCB | Backordered | Backordered | $69.93/foot | FT | 1-1/4 | Static Dissipative | Industrial Fluids | 750 psi | 1.750 inch | -20 | 0.68 kg/m | n/a | 32 mm | PAGE Series | USP Class VI (compliant core tube) | 3 inch | 711.2 mm-Hg | Polytetrafluoroethylene (PTFE) Static Dissipative | Braid of 304 Stainless Steel | 500 °F | -73 °C | 4:1 | |||
| 20-SCW | Backordered | Backordered | $62.33/foot | FT | 1-1/4 | Natural | Industrial Fluids | 52 bar | 1.750 inch | -20 | 0.46 lb/ft | n/a | 32 mm | PAGE Series | FDA (Core Tube) | 3 inch | 711.2 mm-Hg | Polytetrafluoroethylene (PTFE) | Braid of 304 Stainless Steel | 500 °F | -100 °F | 4:1 | |||
| 24-SCB | Backordered | Backordered | $83.38/foot | FT | 1-1/2 | Static Dissipative | Air | 650 psi | 1.950 inch | -24 | 0.81 kg/m | n/a | 1-1/2 inch | PAGE Series | USP Class VI (compliant core tube) | 3-3/4 inch | 28 Inch-Hg | Polytetrafluoroethylene (PTFE) Static Dissipative | Braid of 304 Stainless Steel | 500 °F | -100 °F | 4:1 | |||
| 24-SCW | Backordered | Backordered | $75.81/foot | FT | 1-1/2 | Natural | Industrial Fluids | 4.5 MPa | 1.950 inch | -24 | 0.55 lb/ft | n/a | 38 mm | PAGE Series | FDA (Core Tube) | 3-3/4 inch | 28 Inch-Hg | Polytetrafluoroethylene (PTFE) | Braid of 304 Stainless Steel | 500 °F | -100 °F | 4:1 | Silver | -24 | |
| 32-SCB | Backordered | Backordered | $109.79/foot | FT | 2 | Static Dissipative | Chemicals | 31 bar | 2.450 inch | -32 | 0.9 lb/ft | n/a | 51 mm | PAGE Series | USP Class VI (compliant core tube) | 121 mm | 28 Inch-Hg | Polytetrafluoroethylene (PTFE) Static Dissipative | Braid of 304 Stainless Steel | 500 °F | -100 °F | 4:1 | |||
| 32-SCW | Backordered | Backordered | $88.54/foot | FT | 2 | Natural | Industrial Fluids | 3.1 MPa | 2.450 inch | -32 | 1.4 kg/m | n/a | 2 inch | PAGE Series | USP Class VI (compliant core tube) | 4-3/4 inch | 711.2 mm-Hg | Polytetrafluoroethylene (PTFE) | Braid of 304 Stainless Steel | 500 °F | -100 °F | 4:1 |
