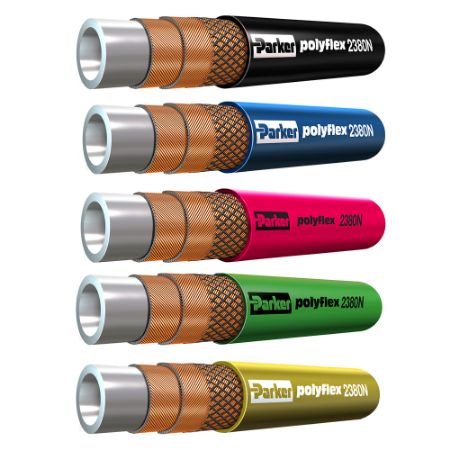

High Pressure Hydraulic Hose - 2380N/2388N

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High pressure 2380N and 2388N hoses are rated up to 15,000 psi and are used in oil and gas hydraulic systems, or portable hydraulic tools and as subsea control lines (-16 hose). Parker high pressure hose assemblies are robust yet lightweight, weighing up to 20% less than comparable rubber hoses. Hose assemblies feature extremely long lengths which reduce potential leak points by eliminating multiple adaptors and low dimensional change under pressure, resulting in excellent response times with very low pressure drops.

Markets:
• Upstream Oil & Gas
• Land-based and offshore
• Industrial
• Subsea

Features/Benefits:
• Flexible and lightweight
• Low volumetric pressure
• Replaces high pressure rigid tubing where flexibility is important
• Continuous long lengths without splices
• Available in twin line constructions

Applications:
• Hydraulic systems
• Hydraulic tools and jacks
• Grease injection
• Rescue equipment
• Subsea control lines (-16 hose only)

Technical Specifications:
• Standard color: Black, Blue, Green, Red, Yellow
• Temperature range: -40°F up to +212°F

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Hose I.D. (inch)	Cover Color	Maximum Working Pressure (psi)	Minimum Operating Temperature	Size	Inside Diameter	Specifications Met	Design Factor	Maximum Operating Temperature	Minimum Bend Radius	Cover Material	Weight	Media	Compatible Fitting	Maximum Operating Pressure	Outside Diameter	Hose Inner Tube Material	Hose Reinforcement Material
2380N-04V00	Backordered	2327 in stock	$10.93/foot	FT	1/4	Black	10,150	-40 °F	-4	1/4 inch	N/A	4:1	100 °C	2-3/4 inch	Polyurethane	0.27 kg/m	Petroleum Hydraulic Fluids	8X Series	700 bar	13.3 mm	Polyamide 12	2 Spirals and 2 Open Spirals of High Tensile Steel Wire
2380N-04V02	Backordered	1075 in stock	$10.09/foot	FT	1/4	Blue	10,150	-40 °F	-4	1/4 inch	N/A	4:1	212 °F	2-3/4 inch	Polyurethane	0.27 kg/m	Petroleum Hydraulic Fluids	8X Series	70 MPa	0.520 inch	Polyamide 12	2 Spirals and 2 Open Spirals of High Tensile Steel Wire
2380N-04V04	Backordered	Backordered	POR	FT	1/4	Red	10,150	-40 °C	-4	6.4 mm	N/A	4:1	100 °C	70 mm	Polyurethane	0.27 kg/m	Petroleum Hydraulic Fluids	8X Series	70 MPa	13.3 mm	Polyamide 12	2 Spirals and 2 Open Spirals of High Tensile Steel Wire
2380N-04V06	Backordered	Backordered	POR	FT	1/4	Yellow	10,150	-40 °F	-4	6.4 mm	N/A	4:1	212 °F	2-3/4 inch	Polyurethane	0.27 kg/m	Petroleum Hydraulic Fluids	8X Series	70 MPa	13.4 mm	Polyamide 12	2 Spirals and 2 Open Spirals of High Tensile Steel Wire
2388N-08V12	Backordered	21 in stock	$22.73/foot	FT	1/2	Blue	15,950	-40 °C	-8	12.7 mm	DIN 1829-2	2.5:1	212 °F	4-3/4 inch	Polyurethane	0.54 lb/ft	Petroleum Hydraulic Fluids	BS Series	110 MPa	0.910 inch	Polyamide 12	2 Spirals and 2 Open Spirals of High Tensile Steel Wire
2388N-08V14	Backordered	Backordered	POR	FT	1/2	Red	15,950	-40 °F	-8	12.7 mm	DIN 1829-2	2.5:1	212 °F	120 mm	Polyurethane	0.80 kg/m	Petroleum Hydraulic Fluids	BS Series	1100 bar	0.910 inch	Polyamide 12	2 Spirals and 2 Open Spirals of High Tensile Steel Wire
