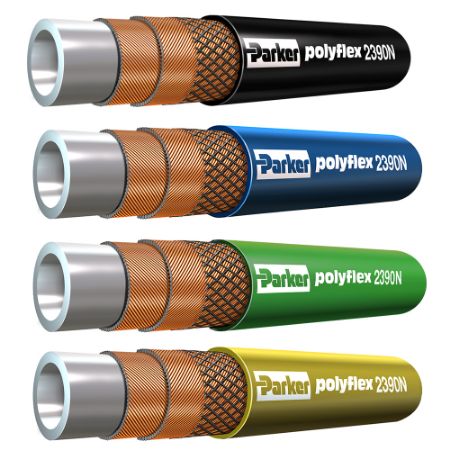

High Pressure Hydraulic Hose - 2390N
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
High pressure Polyflex 2390N hoses are rated up to 7,000 psi and are used in oil and gas hydraulic systems, portable hydraulic tools, BOP stacks, and as subsea control lines. Assemblies are robust yet lightweight, weighing up to 20% less than comparable rubber hoses. Parker hose assemblies feature extremely long lengths which reduce potential leak points by eliminating multiple adaptors and low dimensional change under pressure, resulting in excellent response times with very low pressure drops.
Markets:
• Upstream Oil & Gas
• Land-based and offshore
• Industrial
• Subsea
Features/Benefits:
• Low dimensional change under pressure resulting in excellent response times
• Smooth bore for low pressure drop
• Meets or exceeds the performance requirements of ISO 13628-5
• Low volumetric expansion
• Continuous long lengths without splices
• Available in twin line constructions
• Seawater-resistant polyurethane jacket
Applications:
• Hydraulic systems
• Hydraulic tools and jacks
• Subsea control lines
Read More...Markets:
• Upstream Oil & Gas
• Land-based and offshore
• Industrial
• Subsea
Features/Benefits:
• Low dimensional change under pressure resulting in excellent response times
• Smooth bore for low pressure drop
• Meets or exceeds the performance requirements of ISO 13628-5
• Low volumetric expansion
• Continuous long lengths without splices
• Available in twin line constructions
• Seawater-resistant polyurethane jacket
Applications:
• Hydraulic systems
• Hydraulic tools and jacks
• Subsea control lines
| Action | SKU | Availability | Partner Available | Price | UOM | Hose I.D. (size) | Cover Color | Maximum Operating Pressure | Minimum Operating Temperature | Size | Design Factor | Minimum Bend Radius | Hose Inner Tube Material | Weight | Inside Diameter | Media | Maximum Operating Temperature | Specifications Met | Maximum Operating Pressure | Cover Material | Outside Diameter | Compatible Fitting | Hose Reinforcement Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2390N-04V12 | Backordered | 82 in stock | $14.32/foot | FT | -4 | Blue | 7,000 psi | -40 °C | -4 | 4:1 | 70 mm | Polyamide (PA) | 0.17 lb/ft | 6.4 mm | Petroleum Hydraulic Fluids | 131 °F | ISO 13628-5 | 49 MPa | Polyurethane Sea Water Resistant | 13.3 mm | E3 Series | 2 Closed Spirals and 2 Open Spirals of High Tensile Steel Wire | |
| 2390N-04V13 | Backordered | Backordered | POR | FT | -4 | Green | 7,000 psi | -40 °F | -4 | 4:1 | 2-3/4 inch | Polyamide (PA) | 0.25 kg/m | 1/4 inch | Petroleum Hydraulic Fluids | 55 °C | ISO 13628-5 | 49 MPa | Polyurethane Sea Water Resistant | 13.3 mm | E3 Series | 2 Closed Spirals and 2 Open Spirals of High Tensile Steel Wire | |
| 2390N-04V16 | Backordered | 23 in stock | $11.31/foot | FT | -4 | Yellow | 7,000 psi | -40 °C | -4 | 4:1 | 70 mm | Polyamide (PA) | 0.25 kg/m | 1/4 inch | Petroleum Hydraulic Fluids | 131 °F | ISO 13628-5 | 49 MPa | Polyurethane Sea Water Resistant | 13.3 mm | E3 Series | 2 Closed Spirals and 2 Open Spirals of High Tensile Steel Wire | |
| 2390N-06V13 | Backordered | Backordered | POR | FT | -6 | Green | 6,000 psi | -40 °C | -6 | 4:1 | 120 mm | Methanol Washed | 0.28 lb/ft | 9.5 mm | Petroleum Hydraulic Fluids | 100 °C | ISO 13628-5 | 44.5 MPa | Polyurethane | 18.1 mm | 9X Series | 2 Closed Spirals and 2 Open Spirals of High Tensile Steel Wire | |
| 2390N-08V12 | Backordered | Backordered | $82.37/foot | FT | -8 | Blue | 6,000 psi | -40 °C | -8 | 4:1 | 6 inch | Polyamide 11 | 0.36 lb/ft | 12.7 mm | Petroleum Hydraulic Fluids | 212 °F | ISO 13628-5 | 415 bar | Polyurethane | 0.830 inch | 9X Series | 2 Closed Spirals and 2 Open Spirals of High Tensile Steel Wire | |
| 2390N-08V13 | Backordered | Backordered | POR | FT | -8 | Green | 6,000 psi | -40 °C | -8 | 4:1 | 6 inch | Polyamide 11 | 0.54 kg/m | 1/2 inch | Petroleum Hydraulic Fluids | 212 °F | ISO 13628-5 | 415 bar | Polyurethane | 0.830 inch | E3 Series | 2 Closed Spirals and 2 Open Spirals of High Tensile Steel Wire | |
| 2390N-08V16 | Backordered | 499 in stock | $24.31/foot | FT | -8 | Yellow | 6,000 psi | -40 °C | -8 | 4:1 | 6 inch | Polyamide 11 | 0.54 kg/m | 1/2 inch | Petroleum Hydraulic Fluids | 212 °F | ISO 13628-5 | 6017 psi | Polyurethane | 21.2 mm | E3 Series | 2 Closed Spirals and 2 Open Spirals of High Tensile Steel Wire | |
| 2390N-16V12 | Backordered | Backordered | POR | FT | -16 | Blue | Obsolete | -40 °C | -16 | 4:1 | 11 inch | Methanol Washed | 1.17 kg/m | 25.4 mm | Petroleum Hydraulic Fluids | 212 °F | ISO 13628-5 | 4060 psi | Polyurethane | 1.380 inch | 9X Series | 2 Closed Spirals and 2 Open Spirals of High Tensile Steel Wire | |
| 2390N-16V13 | Backordered | Backordered | $218.12/foot | FT | -16 | Green | 4,000 psi | -40 °C | -16 | 4:1 | 280 mm | Methanol Washed | 0.79 lb/ft | 1 inch | Petroleum Hydraulic Fluids | 100 °C | ISO 13628-5 | 280 bar | Polyurethane | 1.380 inch | E4 Series | 2 Closed Spirals and 2 Open Spirals of High Tensile Steel Wire | |
| 2390N-16V16 | Backordered | Backordered | POR | FT | -16 | Yellow | Obsolete | -40 °C | -16 | 4:1 | 280 mm | Methanol Washed | 0.79 lb/ft | 1 inch | Petroleum Hydraulic Fluids | 100 °C | ISO 13628-5 | 280 bar | Polyurethane | 35 mm | E4 Series | 2 Closed Spirals and 2 Open Spirals of High Tensile Steel Wire |
