Industrial Ball Valves - Stainless Steel
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's industrial stainless steel ball valve line is intended for general purpose use. Stainless steel ball valves are intended for use in the fully open or closed positions. Depending on the application conditions, throttling of the valve may result in premature seal failure and/or inability to turn the valve handle. Parker's stainless steel ball valves meet the material requirements of of NACE MR-01-75.
Parker's stainless steel ball valves are available in the following styles.
• Male Pipe x Female Pipe
• Female Pipe x Female Pipe
• Panel Mount
Options for the stainless steel ball valve include:
• Oval Handle
• Short Handle
• Padlocking Handle
• Welded Retainer Nut
• Actuator Kit
Markets:
• Petrochemical
• Refineries
• Steel
• Agriculture
• Food Processing
• Industrial
Features/Benefits:
• CF-8M Stainless Steel Body
• Stainless Steel Ball
• PTFE Seats/Seals
• Meets Material Requirements NACE MR-01-75
Applications:
• Fuel Lines
• Chemical Lines
• Wash Down
• Plant Design Plumbing Requiring Total Shutoff Capability
Read More...Parker's stainless steel ball valves are available in the following styles.
• Male Pipe x Female Pipe
• Female Pipe x Female Pipe
• Panel Mount
Options for the stainless steel ball valve include:
• Oval Handle
• Short Handle
• Padlocking Handle
• Welded Retainer Nut
• Actuator Kit
Markets:
• Petrochemical
• Refineries
• Steel
• Agriculture
• Food Processing
• Industrial
Features/Benefits:
• CF-8M Stainless Steel Body
• Stainless Steel Ball
• PTFE Seats/Seals
• Meets Material Requirements NACE MR-01-75
Applications:
• Fuel Lines
• Chemical Lines
• Wash Down
• Plant Design Plumbing Requiring Total Shutoff Capability
| Action | SKU | Availability | Partner Available | Price | UOM | Connection 1 Thread Size (inch) | Connection 2 Thread Size (inch) | Locking Mechanism | Connection 2 Thread Style | Style | Connection 1 Thread Style | Shape | Handle | Vacuum Pressure Rating | Minimum Operating Temperature | Connection Type | Maximum Operating Temperature | Connection Size | Function | Actuation Type | Maximum Operating Pressure | Handle Type | Maximum Flow Rate | Seat Material | Operation Type | Mounting Type | Ball Material | Body Material | Seal Material | Shape | Orifice Size | Configuration | Specifications Met |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| V501SS-12 | Backordered | Backordered | $212.22/each | EA | 3/4 | 3/4 | Non-Locking | Female Pipe | Male to Female Pipe Ends | Male Pipe | Panel mount | Stainless Steel Lever | 28 | 0 | NPT | 400 | 3/4 | 2-Way | Manual | 2000 | Lever | 35 | Stainless Steel | n/a | Panel | PTFE | CF-8M Stainless Steel | 0.28 | 0.37 | .72 | Male to Female NPT | NACE MR-01-75 | |
| V501SS-16 | Backordered | 2 Limited Stock | $291.41/each | EA | 1 | 1 | Non-Locking | Female Pipe | Male to Female Pipe Ends | Male Pipe | Panel mount | Stainless Steel Lever | 28 | 0 | NPT | 400 | 0.787 | 1.00 | 0.50 | 2000 | Lever | 1.25 | Stainless Steel | 1.50 | Panel | PTFE | CF-8M Stainless Steel | 0.38 | 0.38 | .94 | 0.787 | NACE MR-01-75 | |
| V501SS-4 | 6 in stock | 1 Limited Stock | $125.54/each | EA | 1/4 | 1/4 | Non-Locking | Female Pipe | Male to Female Pipe Ends | Male Pipe | Panel mount | Stainless Steel Lever | 28 | 0.38 | 0.38 | 0.38 | 0.79 | 1.00 | 0.50 | 0.38 | Lever | 1.50 | 0.38 | 0.38 | Panel | PTFE | CF-8M Stainless Steel | PTFE | Panel Mount | .28 | 0.50 | 0.50 | |
| V501SS-6 | 1 Limited Stock | Backordered | $127.92/each | EA | 3/8 | 3/8 | Non-Locking | Female Pipe | Male to Female Pipe Ends | Male Pipe | Panel mount | Stainless Steel Lever | 28 | 0 | NPT | 400 | 3/8 | 2-Way | Manual | 2000 | Lever | 6 | PTFE | n/a | Panel | PTFE | CF-8M Stainless Steel | PTFE | Panel Mount | .37 | Male to Female NPT | NACE MR-01-75 | |
| V501SS-8 | Backordered | 33 in stock | $144.44/each | EA | 1/2 | 1/2 | Non-Locking | Female Pipe | Male to Female Pipe Ends | Male Pipe | Panel mount | Stainless Steel Lever | 28 | 0 | NPT | 400 | 1/2 | 2-Way | Manual | 2000 | Lever | 14 | PTFE | n/a | Panel | PTFE | CF-8M Stainless Steel | PTFE | Panel Mount | .50 | Male to Female NPT | NACE MR-01-75 | |
| V502SS-12 | 2 Limited Stock | 17 in stock | $178.16/each | EA | 3/4 | 3/4 | Non-Locking | Female Pipe | Female Pipe Ends | Female Pipe | Panel mount | Stainless Steel Lever | 28 | 0 | NPT | 400 | 3/4 | 2-Way | Manual | 2000 | Lever | 35 | Stainless Steel | n/a | Panel | PTFE | CF-8M Stainless Steel | PTFE | Panel Mount | .787 | Female NPT | NACE MR-01-75 | |

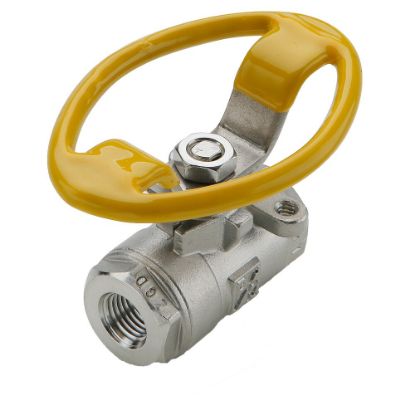

| V502SS-12-21 | Backordered | Backordered | $211.45/each | EA | 3/4 | 3/4 | Non-Locking | Female Pipe | Female Pipe Ends | Female Pipe | Panel mount | Stainless Steel Oval | 28 | 0 | NPT | 400 | 3/4 | 2-Way | Manual | 2000 | Oval | 35 | Stainless Steel | n/a | Panel | PTFE | CF-8M Stainless Steel | PTFE | Panel Mount | .787 | Female NPT | NACE MR-01-75 | |
| V502SS-16 | 1 Limited Stock | Backordered | $232.31/each | EA | 1 | 1 | Non-Locking | Female Pipe | Female Pipe Ends | Female Pipe | Panel mount | Stainless Steel Lever | 28 | 0 | NPT | 400 | 1 | 2-Way | Manual | 2000 | Lever | 54 | Stainless Steel | n/a | Panel | PTFE | CF-8M Stainless Steel | PTFE | Panel Mount | 1.0 | Female NPT | NACE MR-01-75 | |
| V502SS-20 | Backordered | 7 in stock | $427.40/each | EA | 1 1/4 | 1 1/4 | Non-Locking | Female Pipe | Female Pipe Ends | Female Pipe | Panel mount | Stainless Steel Lever | 28 | 0 | NPT | 400 | 1 1/4 | 2-Way | Manual | 1500 | Lever | 74 | Stainless Steel | n/a | Panel | PTFE | CF-8M Stainless Steel | PTFE | Panel Mount | 1.25 | Female NPT | NACE MR-01-75 | |
| V502SS-24 | Backordered | Backordered | $462.20/each | EA | 1 1/2 | 1 1/2 | Non-Locking | Female Pipe | Female Pipe Ends | Female Pipe | Panel mount | Stainless Steel Lever | 28 | 0 | NPT | 400 | 1 1/2 | 2-Way | Manual | 1500 | Lever | 120 | Stainless Steel | n/a | Panel | PTFE | CF-8M Stainless Steel | PTFE | Panel Mount | 1.5 | Female NPT | NACE MR-01-75 | |
| V502SS-32 | Backordered | Backordered | $553.00/each | EA | 2 | 2 | Non-Locking | Female Pipe | Female Pipe Ends | Female Pipe | Panel mount | Stainless Steel Lever | 28 | 0 | NPT | 400 | 2 | 2-Way | Manual | 1500 | Lever | 226 | Stainless Steel | n/a | Panel | PTFE | CF-8M Stainless Steel | PTFE | Panel Mount | 2.0 | Female NPT | NACE MR-01-75 | |
| V502SS-4 | 5 in stock | 95 in stock | $101.98/each | EA | 1/4 | 1/4 | Non-Locking | Female Pipe | Female Pipe Ends | Female Pipe | Panel mount | Stainless Steel Lever | 28 | 0 | NPT | 400 | 1/4 | 2-Way | Manual | 2000 | Lever | 4 | PTFE | n/a | Panel | PTFE | CF-8M Stainless Steel | PTFE | Panel Mount | .38 | Female NPT | NACE MR-01-75 | |

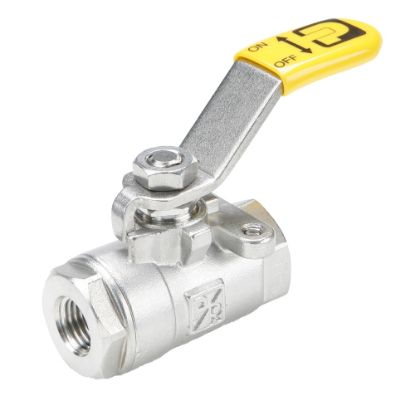

| V502SS-4-20 | Backordered | Backordered | $127.16/each | EA | 1/4 | 1/4 | Non-Locking | Female Pipe | Female Pipe Ends | Female Pipe | Panel mount | Short Stainless Steel | 28 | 0 | NPT | 400 | 1/4 | 2-Way | Manual | 2000 | Short | 4 | PTFE | n/a | Panel | PTFE | CF-8M Stainless Steel | PTFE | Panel Mount | .38 | Female NPT | NACE MR-01-75 | |
| V502SS-4-21 | Backordered | Backordered | $135.04/each | EA | 1/4 | 1/4 | Non-Locking | Female Pipe | Female Pipe Ends | Female Pipe | Panel mount | Stainless Steel Oval | 28 | 0 | NPT | 400 | 1/4 | 2-Way | Manual | 2000 | Oval | 4 | PTFE | n/a | Panel | PTFE | CF-8M Stainless Steel | PTFE | Panel Mount | .38 | Female NPT | NACE MR-01-75 | |

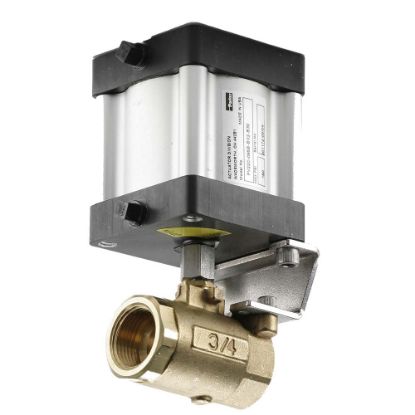

| V502SS-4-ACT | Backordered | Backordered | $913.87/each | EA | 1/4 | 1/4 | Non-Locking | Female Pipe | Female Pipe Ends | Female Pipe | Panel mount | Actuator | 28 | 0 | NPT | 400 | 1/4 | 2-Way | Manual | 2000 | n/a | 4 | PTFE, Nitrile | n/a | Panel | PTFE | CF-8M Stainless Steel | PTFE | Panel Mount | .38 | Female NPT | NACE MR-01-75 | |

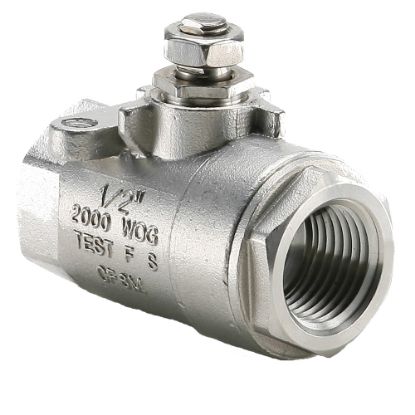

| V502SS-4-SUB | Backordered | Backordered | $98.47/each | EA | 1/4 | 1/4 | Non-Locking | Female Pipe | Female Pipe Ends | Female Pipe | Panel mount | na | 28 | 0 | NPT | 400 | 1/4 | 2-Way | Manual | 2000 | n/a | 4 | PTFE | n/a | Panel | PTFE | CF-8M Stainless Steel | PTFE | Panel Mount | .38 | Female NPT | NACE MR-01-75 | |
| V502SS-6 | Backordered | 84 in stock | $100.00/each | EA | 3/8 | 3/8 | Non-Locking | Female Pipe | Female Pipe Ends | Female Pipe | Panel mount | Stainless Steel Lever | 28 | 0 | NPT | 400 | 3/8 | 2-Way | Manual | 2000 | Lever | 6 | PTFE | n/a | Panel | PTFE | CF-8M Stainless Steel | PTFE | Panel Mount | .38 | Female NPT | NACE MR-01-75 | |
| V502SS-6-20 | Backordered | Backordered | $119.35/each | EA | 3/8 | 3/8 | Non-Locking | Female Pipe | Female Pipe Ends | Female Pipe | Panel mount | Short Stainless Steel | 28 | 0 | NPT | 400 | 3/8 | 2-Way | Manual | 2000 | Short | 6 | PTFE | n/a | Panel | PTFE | CF-8M Stainless Steel | PTFE | Panel Mount | .38 | Female NPT | NACE MR-01-75 | |
| V502SS-6-21 | Backordered | 15 in stock | $133.97/each | EA | 3/8 | 3/8 | Non-Locking | Female Pipe | Female Pipe Ends | Female Pipe | Panel mount | Stainless Steel Oval | 28 | 0 | NPT | 400 | 3/8 | 2-Way | Manual | 2000 | Oval | 6 | PTFE | n/a | Panel | PTFE | CF-8M Stainless Steel | PTFE | Panel Mount | .38 | Female NPT | NACE MR-01-75 | |
| V502SS-6-ACT | Backordered | Backordered | $923.01/each | EA | 3/8 | 3/8 | Non-Locking | Female Pipe | Female Pipe Ends | Female Pipe | Panel mount | Actuator | 28 | 0 | NPT | 400 | 3/8 | 2-Way | Manual | 2000 | n/a | 6 | PTFE, Nitrile | n/a | Panel | PTFE | CF-8M Stainless Steel | PTFE | Panel Mount | .38 | Female NPT | NACE MR-01-75 |
