Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Being the world’s leader in leak free technologies Parker’s NTA fittings utilize a ribbed sleeve for compression and positive grip. NTA fittings meet SAE J246, SAE J1131 and D.O.T. FMVSS571.106 specifications. NTA fittings have a pre-applied thread sealant on all male pipe threads. Electroless nickel plated bodies can be used with bio-diesel.
Use with the following Parker Parflex Division J844 tubing
• 1120 Nylon Air Brake Tubing
• 1320 Quantum Elastomeric Air Brake Tubing
Markets:
• Heavy duty truck
• Trailer
• Mobile
Features/Benefits:
• D.O.T. compression style fittings for repairing truck and trailer air brake lines
• For use in air brake systems on semi-trucks, trailers, buses, mobile equipment and farm implements
• Ribbed sleeve for compression and positive grip
• Stainless Steel tube support
• Meets D.O.T. FMVSS 571.106, SAE J246 and SAE J1131
• Electroless nickel plated bodies can be used with bio-diesel
• All brass air brake fitting
• Use with J844 type A & B nylon tubing in air brake systems
• Pre-applied thread sealant
Applications:
• Air brakes
• Air tanks
• Air ride
• Sliders
• Tire inflation
• Primary & secondary air lines
• Cab controls
Custom configurations and sizes are available upon request. Contact us for additional information.
| Action | SKU | Availability | Partner Available | Price | UOM | Connection 2 Style | Connection 3 Style | Connection 3 Thread Size (inch) | Shape | Connection 2 Thread Size (inch) | Connection 2 Tube O.D. (inch) | Connection 1 Style | Connection 1 Tube O.D. (inch) | Style | Minimum Operating Temperature | Body Material | Maximum Operating Pressure | Maximum Operating Temperature | Nut Material | Sleeve Material | Dimensional Weight | Tube Material | Specifications Met | Thread Sealant Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 60NTA-4 | 15 in stock | 814 in stock | $0.78/each | EA | na | na | na | Sleeve | na | na | Compression | 1/4 | Tube | -40 °F | Brass | 150 psi | 93 °C | Brass | Brass | 0.027594424460431654 lb | Stainless Steel | DOT FMVSS 571.106, SAE J1131, SAE J246 | Vibra-Seal 516 | |
| 60NTA-6 | 110 in stock | 1271 in stock | $0.78/each | EA | na | na | na | Sleeve | na | na | Compression | 3/8 | Tube | -40 °F | Brass | 150 psi | 93 °C | Brass | Brass | 0.027594424460431654 lb | Stainless Steel | DOT FMVSS 571.106, SAE J1131, SAE J246 | Vibra-Seal 516 | |
| 60NTA-8 | 81 in stock | 1071 in stock | $1.12/each | EA | na | na | na | Sleeve | na | na | Compression | 1/2 | Tube | -40 °C | Brass | 10 bar | 93 °C | Brass | Brass | 0.027594424460431654 lb | Stainless Steel | DOT FMVSS 571.106, SAE J1131, SAE J246 | Vibra-Seal 516 | |

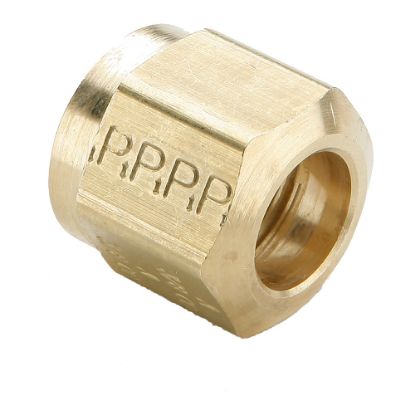

| 61NTA-10 | 22 in stock | 375 in stock | $5.69/each | EA | na | na | na | Nut | na | na | Compression | 5/8 | Tube | -40 °C | Brass | 10 bar | 93 °C | Brass | Brass | 0.11037769784172662 lb | SAE J844 Type A & B Nylon Tubing | DOT FMVSS 571.106, SAE J1131, SAE J246 | Vibra-Seal 516 | |
| 61NTA-12 | 10 in stock | 352 in stock | $8.32/each | EA | na | na | na | Nut | na | na | Compression | 3/4 | Tube | -40 °C | Brass | 150 psi | 200 °F | Brass | Brass | Stainless Steel | DOT FMVSS 571.106, SAE J1131, SAE J246 | Vibra-Seal 516 | ||
| 61NTA-3 | Backordered | 296 in stock | $2.54/each | EA | na | na | na | Nut | na | na | Compression | 3/16 | Tube | -40 °C | Brass | 150 psi | 200 °F | Brass | Brass | Stainless Steel | DOT FMVSS 571.106, SAE J1131, SAE J246 | Vibra-Seal 516 | ||
| 61NTA-4 | 12 in stock | 1868 in stock | $1.54/each | EA | na | na | na | Nut | na | na | Compression | 1/4 | Tube | -40 °F | Brass | 150 psi | 200 °F | Brass | Brass | 0.11037769784172662 lb | Stainless Steel | DOT FMVSS 571.106, SAE J1131, SAE J246 | Vibra-Seal 516 | |
| 61NTA-6 | 16 in stock | 607 in stock | $2.52/each | EA | na | na | na | Nut | na | na | Compression | 3/8 | Tube | -40 °F | Brass | 10 bar | 200 °F | Brass | Brass | 0.11037769784172662 lb | Stainless Steel | DOT FMVSS 571.106, SAE J1131, SAE J246 | Vibra-Seal 516 | |
| 61NTA-8 | 56 in stock | 608 in stock | $4.49/each | EA | na | na | na | Nut | na | na | Compression | 1/2 | Tube | -40 °F | Brass | 10 bar | 93 °C | Brass | Brass | 0.11037769784172662 lb | Stainless Steel | DOT FMVSS 571.106, SAE J1131, SAE J246 | Vibra-Seal 516 | |
| 62ANBH-4 | Backordered | Backordered | $33.44/each | EA | Compression | na | na | Bulkhead | na | 1/4 | Compression | 1/4 | NTA Tube to AB Tube | -40 °C | Brass | 10 bar | 93 °C | Brass | Brass | Stainless Steel | DOT FMVSS 571.106, SAE J1131, SAE J246 | Vibra-Seal 516 | ||
| 62ANBH-6 | Backordered | Backordered | $36.75/each | EA | Compression | na | na | Bulkhead | na | 3/8 | Compression | 3/8 | NTA Tube to AB Tube | -40 °C | Brass | 150 psi | 93 °C | Brass | Brass | Stainless Steel | DOT FMVSS 571.106, SAE J1131, SAE J246 | Vibra-Seal 516 | ||
| 62ANBH-8 | Backordered | Backordered | $58.55/each | EA | Compression | na | na | Bulkhead | na | 1/2 | Compression | 1/2 | NTA Tube to AB Tube | -40 °F | Brass | 150 psi | 93 °C | Brass | Brass | Stainless Steel | DOT FMVSS 571.106, SAE J1131, SAE J246 | Vibra-Seal 516 | ||

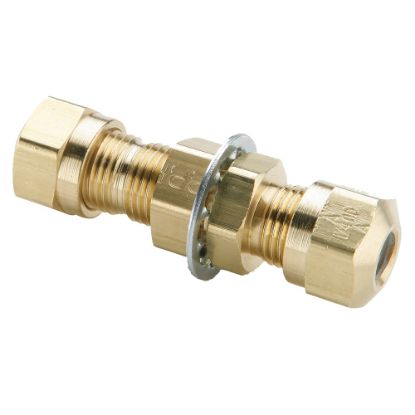

| 62NBH-10 | Backordered | Backordered | $49.15/each | EA | Compression | na | na | Bulkhead | na | 5/8 | Compression | 5/8 | Tube to Tube | -40 °C | Brass | 150 psi | 200 °F | Brass | Brass | Stainless Steel | DOT FMVSS 571.106, SAE J1131, SAE J246 | Vibra-Seal 516 | ||
| 62NBH-3 | Backordered | Backordered | $24.73/each | EA | Compression | na | na | Bulkhead | na | 3/16 | Compression | 3/16 | Tube to Tube | -40 °C | Brass | 10 bar | 200 °F | Brass | Brass | SAE J844 Type A & B Nylon Tubing | DOT FMVSS 571.106, SAE J1131, SAE J246 | Vibra-Seal 516 | ||
| 62NBH-4 | 24 in stock | 49 in stock | $15.98/each | EA | Compression | na | na | Bulkhead | na | 1/4 | Compression | 1/4 | Tube to Tube | -40 °C | Brass | 150 psi | 93 °C | Brass | Brass | 0.11037769784172662 lb | Stainless Steel | DOT FMVSS 571.106, SAE J1131, SAE J246 | Vibra-Seal 516 | |
| 62NBH-6 | Backordered | 2 Limited Stock | $21.20/each | EA | Compression | na | na | Bulkhead | na | 3/8 | Compression | 3/8 | Tube to Tube | -40 °C | Brass | 10 bar | 93 °C | Brass | Brass | Stainless Steel | DOT FMVSS 571.106, SAE J1131, SAE J246 | Vibra-Seal 516 | ||
| 62NBH-8 | Backordered | 20 in stock | $35.56/each | EA | Compression | na | na | Bulkhead | na | 1/2 | Compression | 1/2 | Tube to Tube | -40 °C | Brass | 150 psi | 200 °F | Brass | Brass | SAE J844 Type A & B Nylon Tubing | DOT FMVSS 571.106, SAE J1131, SAE J246 | Vibra-Seal 516 | ||

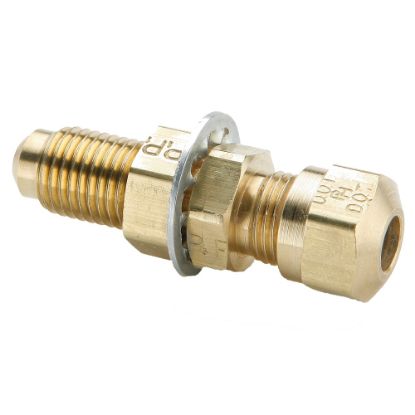

| 62NFBH-10 | Backordered | 10 in stock | $49.43/each | EA | 45 Flare | na | na | Bulkhead | na | 5/8 | Compression | 5/8 | Tube to Flare | -40 °F | Brass | 150 psi | 93 °C | Brass | Brass | 0.27594424460431655 lb | Stainless Steel | DOT FMVSS 571.106, SAE J1131, SAE J246 | Vibra-Seal 516 | |
| 62NFBH-4 | Backordered | 3 in stock | $17.34/each | EA | 45 Flare | na | na | Bulkhead | na | 1/4 | Compression | 1/4 | Tube to Flare | -40 °C | Brass | 10 bar | 200 °F | Brass | Brass | Stainless Steel | DOT FMVSS 571.106, SAE J1131, SAE J246 | Vibra-Seal 516 | ||
| 62NFBH-6 | Backordered | 144 in stock | $22.42/each | EA | 45 Flare | na | na | Bulkhead | na | 3/8 | Compression | 3/8 | Tube to Flare | -40 °C | Brass | 10 bar | 200 °F | Brass | Brass | Stainless Steel | DOT FMVSS 571.106, SAE J1131, SAE J246 | Vibra-Seal 516 |
