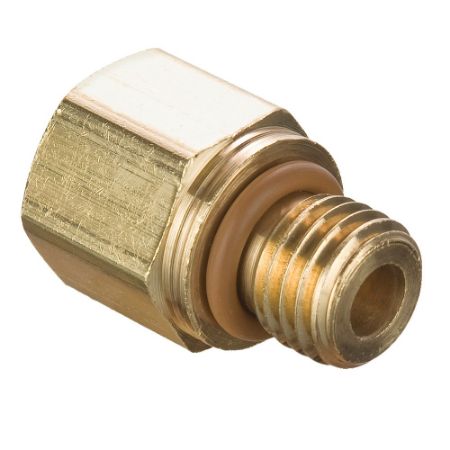

ISO Port Adapters
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's ISO Port Adapters are ideal in systems with high pressure and cycling providing reliable, long-term sealing. ISO port adapters meet dimensional requirements of ISO 6149-3 and SAE 2244-3. A Fluorocarbon O-ring is standard on all ISO port adapters so no thread sealant is needed, reducing maintenance and component replacement costs as a result of contaminating and damaging of components due to the sealant.
Markets:
• Industrial
• Construction
• Mobile
• Factory/process automation
Features/Benefit:
• All brass construction
• No thread sealant
• Fluorocarbon O-ring reduces maintenance and replacement costs as a result of contamination and damage to components due to sealant
• Long term sealing
• Improves assembly time
Applications:
• Air lines
• Water lines
• Cooling lines
Custom configurations and sizes are available upon request. Contact us for additional information.
| Action | SKU | Availability | Partner Available | Price | UOM | Shape | Connection 1 Style | Connection 2 Thread Size (inch) | Style | Connection 1 Tube O.D. (inch) | Minimum Operating Temperature | Maximum Operating Temperature | Body Material | Tube Material | O-Ring Material | Specifications Met | Maximum Operating Pressure | Minimum Operating Pressure | Dimensional Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/8F3HG-B | 22 in stock | 1280 in stock | $3.01/each | EA | Male | Male | 1/8 | Metric Adapter | 1/8 | -40 °F | 150 °C | Brass | Copper, Brass, Iron Pipe | Fluorocarbon | na | 69 bar | 1000 psi | ||

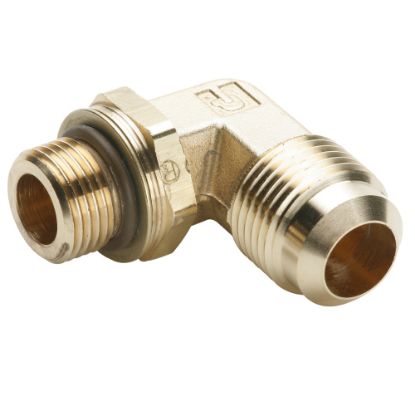

| 149F-10-MI27 | Backordered | Backordered | $45.37/each | EA | 90° Elbow | Male Flare | M27x2.0 | Flare to Metric | 5/8 | -65 °F | 250 °F | Brass | Copper, Brass, J844 Type A & B Nylon Tubing | Fluorocarbon | ISO 6149-3, SAE 2244-3 | 650 psi | -53 psi | 0.27594424460431655 lb | |

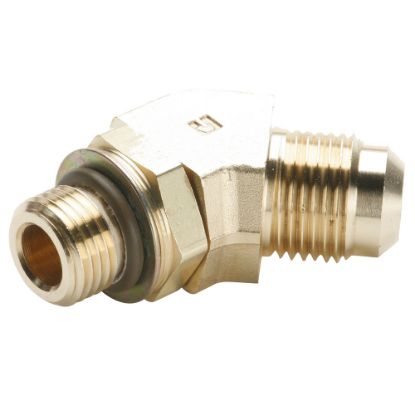

| 159F-10-MI27 | Backordered | Backordered | $48.18/each | EA | 45° Elbow | Male Flare | M27x2.0 | Flare to Metric | 5/8 | -65 °F | 250 °F | Brass | Copper, Brass, J844 Type A & B Nylon Tubing | ISO 6149-3, SAE 2244-3 | 650 psi | -53 psi | 0.27594424460431655 lb | ||

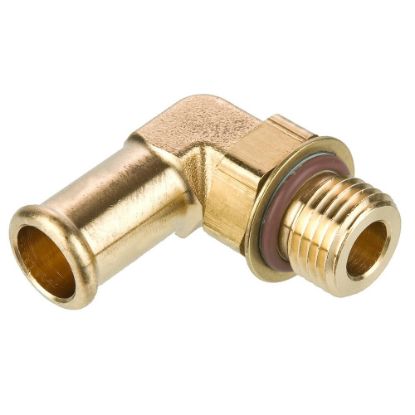

| 169HB-10-MI27 | Backordered | 27 in stock | $48.81/each | EA | 90° Elbow | Beaded Hose Barb | M27x2.0 | Beaded Hose Barb to Metric | 5/8 | -40 °F | Brass | Copper, Brass, J844 Type A & B Nylon Tubing | ISO 6149-3, SAE 2244-3 | 150 psi | -40 psi | 0.27594424460431655 lb | |||

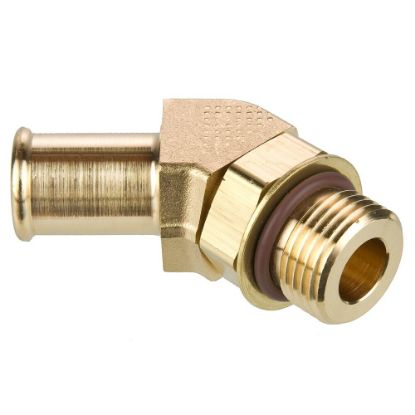

| 179HB-16-MI27 | Backordered | Backordered | $59.30/each | EA | 45° Elbow | Beaded Hose Barb | M27x2.0 | Beaded Hose Barb to Metric | 1 | -40 °F | 71 °C | Brass | Copper, Brass, J844 Type A & B Nylon Tubing | Fluorocarbon | ISO 6149-3, SAE 2244-3 | 10 bar | -40 psi | ||
| 222P-2-MI10 | Backordered | Backordered | $9.76/each | EA | Adapter | Female Pipe | M10x1.0 | Female Pipe to Metric | 1/8 | -65 °F | 250 °F | Brass | Copper, Brass, J844 Type A & B Nylon Tubing | ISO 6149-3, SAE 2244-3 | 68 bar | -53 psi | 0.27594424460431655 lb | ||
| 222P-2-MI14 | Backordered | Backordered | $14.60/each | EA | Adapter | Female Pipe | M14x1.5 | Female Pipe to Metric | 1/8 | -65 °F | 121 °C | Brass | Copper, Brass, J844 Type A & B Nylon Tubing | Fluorocarbon | ISO 6149-3, SAE 2244-3 | 1000 psi | -53 psi | ||
| 222P-4-MI12 | Backordered | Backordered | $16.21/each | EA | Adapter | Female Pipe | M12x1.5 | Female Pipe to Metric | 1/4 | -65 °F | 250 °F | Brass | Copper, Brass, J844 Type A & B Nylon Tubing | ISO 6149-3, SAE 2244-3 | 68 bar | -53 psi | 0.27594424460431655 lb | ||
| 222P-4-MI14 | Backordered | Backordered | $24.57/each | EA | Adapter | Female Pipe | M14x1.5 | Female Pipe to Metric | 1/4 | -65 °F | 121 °C | Brass | Copper, Brass, J844 Type A & B Nylon Tubing | Fluorocarbon | ISO 6149-3, SAE 2244-3 | 1000 psi | -53 psi | 2.7594424460431655 lb | |
| 222P-6-MI16 | Backordered | Backordered | $16.55/each | EA | Adapter | Female Pipe | M16x1.5 | Female Pipe to Metric | 3/8 | -65 °F | 250 °F | Brass | Copper, Brass, J844 Type A & B Nylon Tubing | ISO 6149-3, SAE 2244-3 | 1000 psi | -53 psi | 0.27594424460431655 lb | ||
| 222P-6-MI22 | Backordered | 11 in stock | $10.40/each | EA | Adapter | Female Pipe | M22x1.5 | Female Pipe to Metric | 3/8 | -65 °F | 250 °F | Brass | Copper, Brass, J844 Type A & B Nylon Tubing | ISO 6149-3, SAE 2244-3 | 68 bar | -53 psi | 0.27594424460431655 lb | ||
| 222P-8-MI27 | Backordered | 4 in stock | $22.36/each | EA | Adapter | Female Pipe | M27x2.0 | Female Pipe to Metric | 1/2 | -65 °F | 250 °F | Brass | Copper, Brass, J844 Type A & B Nylon Tubing | ISO 6149-3, SAE 2244-3 | 1000 psi | -53 psi | 0.27594424460431655 lb | ||

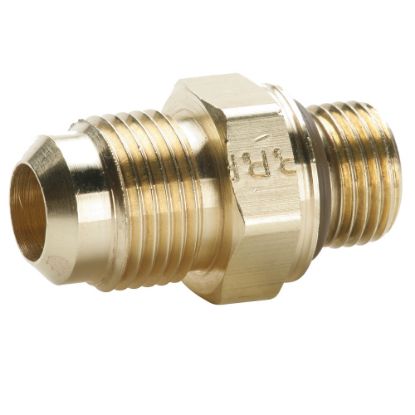

| 48F-12-MI27 | Backordered | Backordered | $26.14/each | EA | Connector | Male Flare | M27x2.0 | Flare to Metric | 3/4 | -65 °F | 250 °F | Brass | Copper, Brass, J844 Type A & B Nylon Tubing | ISO 6149-3, SAE 2244-3 | 37 bar | -53 psi | 0.27594424460431655 lb | ||
| 48F-8-MI16 | Backordered | Backordered | $16.85/each | EA | Connector | Male Flare | M16x1.5 | Flare to Metric | 1/2 | -65 °F | 121 °C | Brass | Copper, Brass, J844 Type A & B Nylon Tubing | Fluorocarbon | ISO 6149-3, SAE 2244-3 | 51 bar | -53 psi | ||

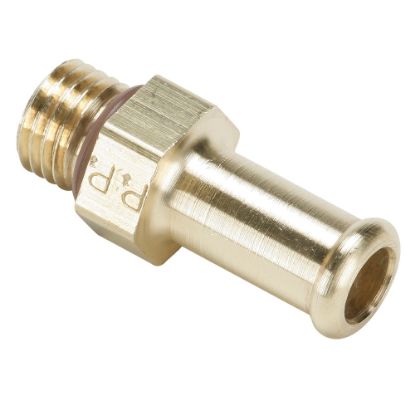

| 68HB-10-MI27 | 5 in stock | 35 in stock | $31.47/each | EA | Connector | Beaded Hose Barb | M27x2.0 | Beaded Hose Barb to Metric | 5/8 | -40 °F | 71 °C | Brass | Copper, Brass, J844 Type A & B Nylon Tubing | Fluorocarbon | ISO 6149-3, SAE 2244-3 | 150 psi | -40 psi | ||
| 68HB-6-MI12 | 1 Limited Stock | Backordered | $9.79/each | EA | Connector | Beaded Hose Barb | M12x1.5 | Beaded Hose Barb to Metric | 3/8 | Brass | |||||||||

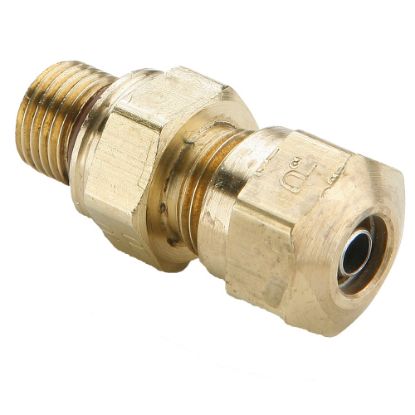

| 68NTA-4-MI10 | Backordered | Backordered | $17.51/each | EA | Connector | Compression | M10x1.0 | Compression to Metric | 1/4 | -40 °F | 200 °F | Brass | Copper, Brass, J844 Type A & B Nylon Tubing | Fluorocarbon | ISO 6149-3, SAE 2244-3 | 10 bar | -40 psi |
