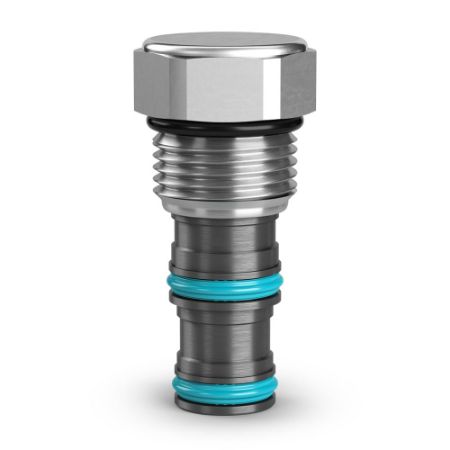

Cavity Plugs

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker’s cavity plugs fit all industry standard 8, 10, 12, and 16 size cavities. These plugs function more than just a port plug and can be used in place of any valve that fits in those industry standard cavities. Parker’s cavity plugs can be configured to either block all ports completely or reroute flow to the appropriate ports via several internal spool design options. These valves are ideal for commonizing manifolds across several machine platforms where certain machines may or may not require specific valves and functionality. Cavity plugs can simply replace unused cavities were valves have been removed.

Markets:
• Miscellaneous Industrial
• Miscellaneous Mobile

Features/Benefits:
• High pressure rating
• 4 Sizes available
• Several flow options

Applications:
• Blocking a cavity
• Rerouting flow

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Type/Configuration	Seal Material	Cavity Size	Number of Positions	Cavity Size	Valve Material	Configuration	Actuation Type	For Fluid Type	Number of Positions	Installation Torque	Seal Material	Maximum Operating Pressure	Body Material	Maximum Operating Temperature	Weight	Minimum Operating Temperature	Maximum Flow Rate	Flow Rate
P08-2	2 Limited Stock	37 in stock	$68.73/each	EA	All ports blocked	Nitrile	C08	2 way	C08	All parts steel. All operating parts hardened steel	All ports blocked	n/a	Mineral-based or synthetic hydraulic fluids	2 way	36 lb-ft	Nitrile	350 bar	n/a	+121 °C	0.11 kg	-34 °C	n/a	n/a
P08-2V	Backordered	Backordered	$72.65/each	EA	All ports blocked	Fluorocarbon	C08	2 way	C08	All parts steel. All operating parts hardened steel	All ports blocked	n/a	Mineral-based or synthetic hydraulic fluids	2 way	49 Nm	Fluorocarbon	350 bar	n/a	+204 °C	0.11 kg	-26 °C	n/a	n/a
P08-3	Backordered	1 Limited Stock	$131.84/each	EA	All ports blocked	Nitrile	C08	3 way	C08	All parts steel. All operating parts hardened steel	All ports blocked	n/a	Mineral-based or synthetic hydraulic fluids	3 way	36 lb-ft	Nitrile	350 bar	n/a	+121 °C	0.25 lb	-34 °C	n/a	n/a
P08-3C	Backordered	Backordered	$113.54/each	EA	Port 1 blocked	Nitrile	C08	3 way	C08	All parts steel. All operating parts hardened steel	Port 1 blocked	n/a	Mineral-based or synthetic hydraulic fluids	3 way	49 Nm	Nitrile	5000 psi	n/a	+121 °C	0.11 kg	-34 °C	n/a	n/a
P08-3V	Backordered	Backordered	$82.00/each	EA	All ports blocked	Fluorocarbon	C08	3 way	C08	All parts steel. All operating parts hardened steel	All ports blocked	n/a	Mineral-based or synthetic hydraulic fluids	3 way	49 Nm	Fluorocarbon	350 bar	n/a	+400 °F	0.11 kg	-15 °F	n/a	n/a
P08-4	3 in stock	Backordered	$119.63/each	EA	All ports blocked	Nitrile	C08	4 way	C08	All parts steel. All operating parts hardened steel	All ports blocked	n/a	Mineral-based or synthetic hydraulic fluids	4 way	49 Nm	Nitrile	350 bar	n/a	+250 °F	0.29 kg	-34 °C	n/a	n/a
P10-2	1 Limited Stock	40 in stock	$82.22/each	EA	All ports blocked	Nitrile	C10	2 way	C10	All parts steel. All operating parts hardened steel	All ports blocked	n/a	Mineral-based or synthetic hydraulic fluids	2 way	75 Nm	Nitrile	5000 psi	n/a	+250 °F	0.18 kg	-34 °C	n/a	n/a
P10-2V	Backordered	Backordered	$83.96/each	EA	All ports blocked	Fluorocarbon	C10	2 way	C10	All parts steel. All operating parts hardened steel	All ports blocked	n/a	Mineral-based or synthetic hydraulic fluids	2 way	55 lb-ft	Fluorocarbon	350 bar	n/a	+204 °C	0.18 kg	-15 °F	n/a	n/a
P10-3	Backordered	2 Limited Stock	$123.88/each	EA	All ports blocked	Nitrile	C10	3 way	C10	All parts steel. All operating parts hardened steel	All ports blocked	n/a	Mineral-based or synthetic hydraulic fluids	3 way	75 Nm	Nitrile	5000 psi	n/a	+121 °C	0.41 lb	-34 °C	n/a	n/a
P10-3A	Backordered	12 in stock	$133.34/each	EA	Port 3 blocked	Nitrile	C10	3 way	C10	All parts steel. All operating parts hardened steel	Port 3 blocked	n/a	Mineral-based or synthetic hydraulic fluids	3 way	75 Nm	Nitrile	5000 psi	n/a	+250 °F	0.18 kg	-30 °F	n/a	n/a
P10-3B	Backordered	Backordered	$100.70/each	EA	Port 2 blocked	Nitrile	C10	3 way	C10	All parts steel. All operating parts hardened steel	Port 2 blocked	n/a	Mineral-based or synthetic hydraulic fluids	3 way	75 Nm	Nitrile	350 bar	n/a	+250 °F	0.18 kg	-34 °C	n/a	n/a
P10-3BV	Backordered	Backordered	$90.26/each	EA	Port 2 blocked	Fluorocarbon	C10	3 way	C10	All parts steel. All operating parts hardened steel	Port 2 blocked	n/a	Mineral-based or synthetic hydraulic fluids	3 way	75 Nm	Fluorocarbon	350 bar	n/a	+204 °C	0.41 lb	-15 °F	n/a	n/a
P10-3C	Backordered	Backordered	$112.01/each	EA	Port 1 blocked	Nitrile	C10	3 way	C10	All parts steel. All operating parts hardened steel	Port 1 blocked	n/a	Mineral-based or synthetic hydraulic fluids	3 way	75 Nm	Nitrile	5000 psi	n/a	+121 °C	0.18 kg	-34 °C	n/a	n/a
P10-3V	Backordered	Backordered	$95.05/each	EA	All ports blocked	Fluorocarbon	C10	3 way	C10	All parts steel. All operating parts hardened steel	All ports blocked	n/a	Mineral-based or synthetic hydraulic fluids	3 way	55 lb-ft	Fluorocarbon	350 bar	n/a	+400 °F	0.18 kg	-26 °C	n/a	n/a
P10-4	Backordered	Backordered	$116.36/each	EA	All ports blocked	Nitrile	C10	4 way	C10	All parts steel. All operating parts hardened steel	All ports blocked	n/a	Mineral-based or synthetic hydraulic fluids	4 way	75 Nm	Nitrile	350 bar	n/a	+250 °F	0.41 lb	-30 °F	n/a	n/a
P10-4A	Backordered	Backordered	$119.63/each	EA	Port 4 blocked	Nitrile	C10	4 way	C10	All parts steel. All operating parts hardened steel	Port 4 blocked	n/a	Mineral-based or synthetic hydraulic fluids	4 way	55 lb-ft	Nitrile	350 bar	n/a	+250 °F	0.18 kg	-30 °F	n/a	n/a
P10-4B	Backordered	Backordered	$122.45/each	EA	Port 3 blocked	Nitrile	C10	4 way	C10	All parts steel. All operating parts hardened steel	Port 3 blocked	n/a	Mineral-based or synthetic hydraulic fluids	4 way	75 Nm	Nitrile	350 bar	n/a	+121 °C	0.18 kg	-34 °C	n/a	n/a
P10-4C	Backordered	Backordered	$126.59/each	EA	Port 2 blocked	Nitrile	C10	4 way	C10	All parts steel. All operating parts hardened steel	Port 2 blocked	n/a	Mineral-based or synthetic hydraulic fluids	4 way	55 lb-ft	Nitrile	5000 psi	n/a	+250 °F	0.41 lb	-30 °F	n/a	n/a
P10-4V	Backordered	Backordered	$122.45/each	EA	All ports blocked	Fluorocarbon	C10	4 way	C10	All parts steel. All operating parts hardened steel	All ports blocked	n/a	Mineral-based or synthetic hydraulic fluids	4 way	75 Nm	Fluorocarbon	5000 psi	n/a	+400 °F	0.18 kg	-15 °F	n/a	n/a
P12-2	Backordered	Backordered	$198.14/each	EA	All ports blocked	Nitrile	C12	2 way	C12	All parts steel. All operating parts hardened steel	All ports blocked	n/a	Mineral-based or synthetic hydraulic fluids	2 way	131 Nm	Nitrile	5000 psi	n/a	+250 °F	0.29 kg	-30 °F	n/a	n/a
