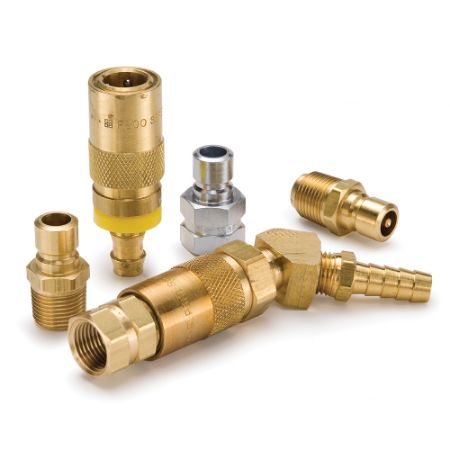

Injection Molding, Coolant Quick Couplings - Moldmate Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Moldmate Series Couplers (water, oil, coolant) up to 200 psi, connect with Moldmate Series Nipples.
Parker's Moldmate Series, in valved and unvalved styles, are specifically designed for connecting low pressure coolant lines to molds and dies on injection molding machinery and die casting equipment. Valved couplers have fluorocarbon poppet seals and can be used with either valved or unvalved nipples. Couplers and nipples are available in sizes, materials, and configurations to be compatible with molding systems.
Technical Characteristics:
• Sizes: 1/4”, 3/8", 1/2”
• Material: Brass
• Port Ends: Push-Lok Hose Barb, Standard Hose Barb
• Interface Seal Options: Silicone, Fluorocarbon
• Other Coupler options include: Straight, 45 degree, 90 degree hose barbs
Markets:
• Industrial die casting
• Injection molding
Features/Benefits:
• Valved couplers have silver colored sleeves for easy visual identification
• Fluorocarbon interface seal option for oil based media
• Standard and Push-Lok hose barb ends available in straight, 45, and 90 degree shapes
• Valved couplers can be used with valved or unvalved nipples
Applications:
• Mold coolant lines
• Die casting equipment
Read More...Parker's Moldmate Series, in valved and unvalved styles, are specifically designed for connecting low pressure coolant lines to molds and dies on injection molding machinery and die casting equipment. Valved couplers have fluorocarbon poppet seals and can be used with either valved or unvalved nipples. Couplers and nipples are available in sizes, materials, and configurations to be compatible with molding systems.
Technical Characteristics:
• Sizes: 1/4”, 3/8", 1/2”
• Material: Brass
• Port Ends: Push-Lok Hose Barb, Standard Hose Barb
• Interface Seal Options: Silicone, Fluorocarbon
• Other Coupler options include: Straight, 45 degree, 90 degree hose barbs
Markets:
• Industrial die casting
• Injection molding
Features/Benefits:
• Valved couplers have silver colored sleeves for easy visual identification
• Fluorocarbon interface seal option for oil based media
• Standard and Push-Lok hose barb ends available in straight, 45, and 90 degree shapes
• Valved couplers can be used with valved or unvalved nipples
Applications:
• Mold coolant lines
• Die casting equipment
| Action | SKU | Availability | Partner Available | Price | UOM | Body Size (inch) | Flow Rate | Valve Style | Connection Hose I.D. (inch) | Body Material | Connection Thread Size (inch) | Coupling Half | Connection Type | Seal Material | Hex Size | Plating Type | Maximum Operating Pressure | Dimensional Weight | Minimum Operating Temperature | Maximum Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BPN251F | 14 in stock | 136 in stock | $5.64/each | EA | 1/4 | 3 | Unvalved | na | BRASS | 1/8 - 27 | Male Nipple | Female NPTF | na | 0.50 inch | na | 200 psi | 0.007997601918465227 lb | -20 °F | 400 °F | |
| BPN252F | 31 in stock | 130 in stock | $4.75/each | EA | 1/4 | 3 | Unvalved | na | BRASS | 1/4 - 18 | Male Nipple | Female NPTF | na | 0.63 inch | na | 200 psi | 0.007997601918465227 lb | -20 °F | 400 °F | |
| BPN253F | Backordered | Backordered | $19.16/each | EA | 1/4 | 3 | Unvalved | na | BRASS | 3/8 - 18 | Male Nipple | Female NPTF | na | 0.75 inch | na | 200 psi | 0.01335431654676259 lb | -20 °F | 400 °F | |
| BPN352F | 10 in stock | 239 in stock | $4.52/each | EA | 3/8 | 6 | Unvalved | na | BRASS | 1/4 - 18 | Male Nipple | Female NPTF | na | 0.63 inch | na | 200 psi | 0.007997601918465227 lb | -20 °F | 400 °F | |
| BPN353F | 16 in stock | 380 in stock | $10.52/each | EA | 3/8 | 6 | Unvalved | na | BRASS | 3/8 - 18 | Male Nipple | Female NPTF | na | 0.75 inch | na | 200 psi | 0.007997601918465227 lb | -20 °F | 400 °F | |
| BPV252 | Backordered | Backordered | $15.07/each | EA | 1/4 | 3 | Poppet | na | BRASS | 1/4 - 18 | Male Nipple | Male NPTF | Fluorocarbon | 0.56 inch | na | 200 psi | 0.006677158273381295 lb | -15 °F | 400 °F | |
| BPV353 | 3 in stock | 85 in stock | $18.74/each | EA | 3/8 | 6 | Poppet | na | BRASS | 3/8 - 18 | Male Nipple | Male NPTF | Fluorocarbon | 0.69 inch | na | 200 psi | 0.01335431654676259 lb | -15 °F | 400 °F | |
| PC204 | 8 in stock | 54 in stock | $18.02/each | EA | 1/4 | 3 | Unvalved | 1/4 | BRASS | na | Female Coupler | Hose barb | Silicone | 0.63 inch | na | 200 psi | 0.013329336530775381 lb | -20 °F | 400 °F | |
| PC204AV | 17 in stock | 55 in stock | $24.86/each | EA | 1/4 | 3 | Poppet | 1/4 | BRASS | na | Female Coupler | Hose barb | Silicone - Fluorocarbon | 0.63 inch | Zinc with clear trivalent chromate on sleeve | 200 psi | 0.01335431654676259 lb | -15 °F | 400 °F | |
| PC204AV-BP | Backordered | Backordered | $25.21/each | EA | 1/4 | 3 | Poppet | 1/4 | BRASS | na | Female Coupler | Push-Lok hose barb | Silicone - Fluorocarbon | 0.63 inch | Zinc with clear trivalent chromate on sleeve | 200 psi | 0.01335431654676259 lb | -15 °F | 400 °F | |
| PC204-BP | Backordered | 118 in stock | $25.22/each | EA | 1/4 | 3 | Unvalved | 1/4 | BRASS | na | Female Coupler | Push-Lok hose barb | Silicone | 0.63 inch | na | 200 psi | 0.01335431654676259 lb | -20 °F | 400 °F | |
| PC205 | 4 in stock | Backordered | $20.91/each | EA | 1/4 | 3 | Unvalved | 5/16 | BRASS | na | Female Coupler | Hose barb | Silicone | 0.63 inch | na | 200 psi | 0.012606115107913667 lb | -20 °F | 400 °F | |
| PC206 | 19 in stock | 121 in stock | $16.30/each | EA | 1/4 | 3 | Unvalved | 3/8 | BRASS | na | Female Coupler | Hose barb | Silicone | 0.63 inch | na | 200 psi | 0.013329336530775381 lb | -20 °F | 400 °F | |
| PC206AV | Backordered | 11 in stock | $25.30/each | EA | 1/4 | 3 | Poppet | 3/8 | BRASS | na | Female Coupler | Hose barb | Silicone - Fluorocarbon | 0.63 inch | Zinc with clear trivalent chromate on sleeve | 200 psi | 0.013329336530775381 lb | -15 °F | 400 °F | |
| PC206AV-BP | 4 in stock | 7 in stock | $23.74/each | EA | 1/4 | 3 | Poppet | 3/8 | BRASS | na | Female Coupler | Push-Lok hose barb | Silicone - Fluorocarbon | 0.63 inch | Zinc with clear trivalent chromate on sleeve | 200 psi | 0.02670863309352518 lb | -15 °F | 400 °F | |
| PC206-BP | 44 in stock | 117 in stock | $17.81/each | EA | 1/4 | 3 | Unvalved | 3/8 | BRASS | na | Female Coupler | Push-Lok hose barb | Silicone | 0.63 inch | na | 200 psi | 0.013329336530775381 lb | -20 °F | 400 °F | |
| PC214 | Backordered | 15 in stock | $19.90/each | EA | 1/4 | 3 | Unvalved | 1/4 | BRASS | na | Female Coupler | Hose barb, 90 degree | Silicone | 0.63 inch | na | 200 psi | 0.02670863309352518 lb | -20 °F | 400 °F | |
| PC214AV | Backordered | Backordered | $26.72/each | EA | 1/4 | 3 | Poppet | 1/4 | BRASS | na | Female Coupler | Hose barb, 90 degree | Silicone - Fluorocarbon | 0.63 inch | Zinc with clear trivalent chromate on sleeve | 200 psi | 0.02670863309352518 lb | -15 °F | 400 °F | |
| PC214AV-BP | Backordered | Backordered | $27.69/each | EA | 1/4 | 3 | Poppet | 1/4 | BRASS | na | Female Coupler | Push-Lok hose barb, 90 degree | Silicone - Fluorocarbon | 0.63 inch | Zinc with clear trivalent chromate on sleeve | 200 psi | 0.02670863309352518 lb | -15 °F | 400 °F | |
| PC214-BP | Backordered | 30 in stock | $20.72/each | EA | 1/4 | 3 | Unvalved | 1/4 | BRASS | na | Female Coupler | Push-Lok hose barb, 90 degree | Silicone | 0.63 inch | na | 200 psi | 0.02670863309352518 lb | -20 °F | 400 °F |
