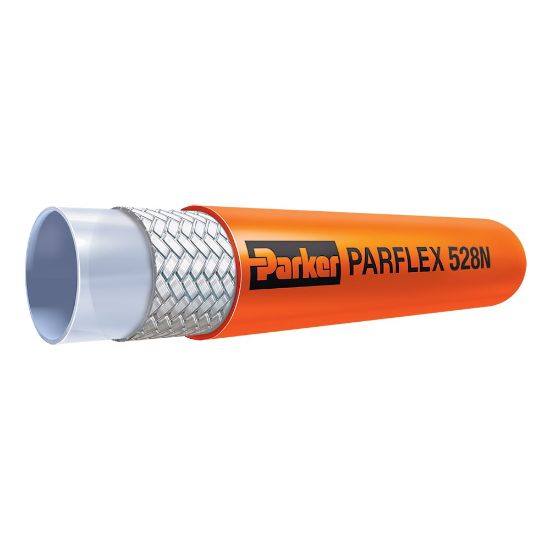

Picture of 100R8 Hydraulic Hose – 520N/528N - 528N-3

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

100R8 Hydraulic Hose – 520N/528N - 528N-3

Parker's 520N/528N Thermoplastic Hydraulic Hose features optimum hose performance in an SAE 100R8 hose. Available as a bonded hose assembly.
Availability:
Backordered
SKU 528N-3
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Hose TypeNon ConductiveHose I.D. (inch)3/16
Size-3Weight0.05 lb/ft
Product StyleNon-ConductiveApplicationManufacturing
Inside Diameter3/16 inchCompatible Fitting56 Series
Design Factor4:1Minimum Bend Radius38 mm
Hose Reinforcement MaterialAramid FiberMinimum Operating Temperature-40 °C
MediaWaterMaximum Operating Temperature212 °F
Maximum Operating Pressure5000 psiSpecifications MetSAE J517 (for less than 50 micro-amps leakage under 75000 volts per ft.)
DivisionParflex DivisionOutside Diameter0.430 inch
Cover MaterialPolyurethaneHose Inner Tube MaterialPolyamide (PA)
