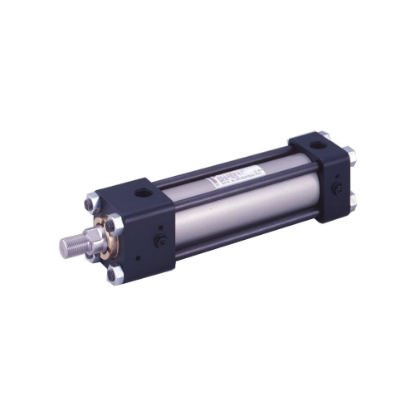

The 160H-1 series is a 16MPa specification double acting tie rod hydraulic cylinder with an inner diameter of φ32 to φ160 that adopts the ISO standard. By adopting a floating cushion, a smooth start is achieved.
A hydraulic cylinder equipped with a high-performance cushion that adopts ISO standards as standard equipment. Switch sets have been standardized for all cylinder bore sizes of φ32 to φ160. Cutting fluid resistant specifications have also been standardized up to a bore size of φ80.
Markets:
・General Industry
・Factory Automation
・Entertainment Automation
・Machine Tools
・Molding
Applications:
・General Industry
・Factory Automation
・Machine Tools
・Injection Molding
・Presses
Features/Benefits:
・11standard mounting styles.
・Single and double rod designs available.
・Standard stroke is up to 2,000mm.
・Sealing material can be selected from 4 types.
・Magnetic proximity switch specifications are also available.
・Cutting oil resistant specifications are also standardized. Industry Standard
・ISO 6020-2
