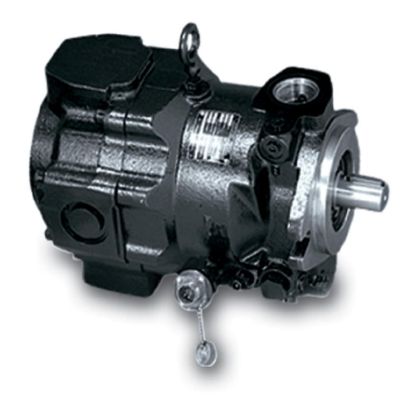

Featuring a flexible, compact design, PAVC Medium Pressure/Super Charged Piston Pumps deliver a reliable, easy-to-use pump solution for a wide range of open-circuit applications requiring medium pressure variable displacement. PAVC pumps utilize a built-in supercharger to ensure a high-speed capability, while convenient cartridge-style controls increase serviceability.

Learn more about Parker PAVC Medium Pressure/Super Charged Hydraulic Piston Pumps service parts under Product Support.

Markets:
• Government (Non-Defense)
• Factory Automation
• Machine Tools
• Miscellaneous Industrial
• Molding
• Packaging Machinery
• Agriculture Machinery
• Construction Equipment
• Material Handling Equipment
• Vocational & Municipal Equipment
• Mining
• Other Natural Resources
• Food & Beverage
• Plastic Processing
• On-Highway Vehicle (Not Bus/Coach)

Features and Benefits:
• Superior performance
• Built-in super charger for pump
• High-speed capability
• Full pressure rating on water glycol fluids
• Thru-shaft capability (PAVC 100 only)
• Improved reliability
• Durable cast iron housing
• Sealed shaft bearing
• Hydrodynamic cylinder barrel bearing
• Pump case and shaft seal subjected to inner pressure only

Ease of Use:
• Two-piece design for easy servicing
• Air bleed standard for quick priming
• Field-changeable cartridge-type controls
• Replaceable bronze clad port plate

Controls:
• Pressure compensation
• Load sensing
• Power (torque) limiting
• Power and load sensing
• Remote pressure compensation
• Adjustable maximum volume stop
• Low pressure standby

Applications:
• Food Processing
• Specialty Fluids

Technical Characteristics:
• Maximum operating pressure up to 210 bar (3,000 psi)
• Maximum speed of 3,000 rpm
• Maximum filter and/or cool drain line of 7 bar (100 psi)
