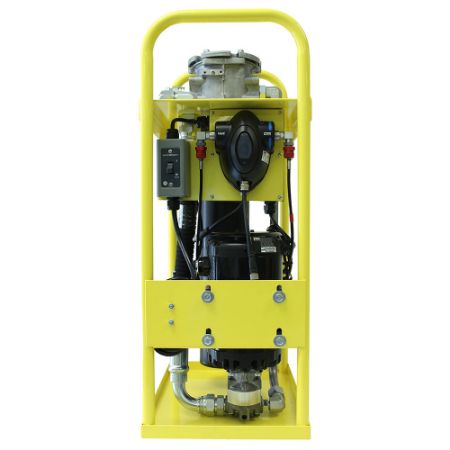

The AFS is the ideal way to prefilter and transfer fluids, on the ground or in the air.
Fluid should always be filtered prior to use. New fluid is not necessarily clean fluid. Most new fluids (directly from the container) are unfit for use, due to high initial contamination levels. Contamination, both particulate and water, may be introduced to a new fluid during processing, mixing, handling and storage.
The AFS uses a high capacity ModuFlow™ Plus filter for long element life and optimum filtration. The single element package provides a high level of filtration performance in a compact size. Free water is controlled by utilizing Parker’s Par-Gel™ element. Par-Gel™ elements have a very high affinity for free water.
Designed with functionality, space and durability in mind the AFS comes standard with a rated lifting eye. The optimized design and rugged steel construction allow service personnel access to the critical hydraulic systems through passageways as small as 12” x 16”.
The use of a Parker portable filtration system is the most efficient and economical way to extend fluid life and protect critical system components from harmful contaminants.

Applications
• Pre-clean hydraulic fluids prior to system fill
• Transferring fluid from drums or storage tanks to system reservoirs
• Conditioning fluid in use
• Complimenting existing system filtration
• Removing free and emulsified water from a system

Features
• Visual indicator
Tells you when to change element
• Single filter
Double length filtration for long element life
• Drip tray
Helps keep the work area safe and clean
• Smaller footprint
Fits into 12”x16” wind turbine hatch
• Heavy duty steel frame
Rugged and built to last
• 110V/220V AC motor
Industrial brand name
• Particle detection
Detects changes in contamination levels and alerts when oil is clean
• Element access cover
Top-accessible for easy changing of elements
• Hose
8 foot, kink-resistant hose prevents pump cavitation
• Lifting eye
Rated hoist ring not to exceed 250 lbs.
• Optional Concentric wand
Ready to use; no additional hardware needed
