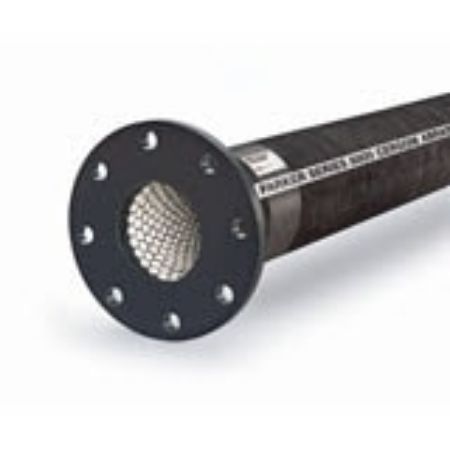

Parker's Series 8800 Cergom Severely Abrasive Material Handling Suction & Vacuum Hose provides exponential service life compared to traditional rubber material handling hose. Cergom hose eliminates in-service maintenance costs as well as inventory and installation costs associated with traditional replacement hoses. The basic hose construction may be modified to customer-specified requirements, including brand, length pattern and built-in coupling configurations. Parker will quickly design and build a custom made product to satisfy specific application requirements and will drop-ship in protective packaging, eliminating the cost of additional handling and the need to compromise on hose performance.

Markets:
• General Industrial
• Mining
• Power Generating

Features/Benefits:
• Tube/Grout Material: Black natural rubber with embedded off-white hexagonal ceramic tiles rated to 150°F for standard temperature service.
• Tube/Grout Material Option: Black EPDM with embedded off-white hexagonal ceramic tiles rated to 300°F for high temperature service.
• Reinforcement: Multiple textile plies for strength and durability, and a wire helix for full suction capability and a path to conduct a static charge to ground.
• Cover: Black SBR for abrasion and weathering resistance.
• Cover Options: Chloroprene, fiberglass, natural rubber, heat resistant textile
• Couplings: Carbon steel with ceramic inner lining applied to entire length of fitting to provide maximum abrasion resistance and maximum service life.
• Coupling End Styles for maximum versatility:
- BUILT-IN ANSI 150# or 300# Fixed or Floating Flanges
- BUILT-IN Beaded Ends
- BUILT-IN Grooved
- BUILT-IN Rubber Flanges (BIRF)
- BUILT-IN Rubber Flanges (BIRF), Modified
- BUILT-IN Male Pipe Thread

Applications:
- media
• Severely abrasive materials
• Ceramic powders
• Coal powders
• Dry cement
• Fiberglass
• Fly ash
• Raw minerals, ores
- usage
• Carbon injection
• Ceramics/glass works
• Manufacturing or processing of insulating materials
• Mills
• Mines
• Power generating facilities
• Quarries
• Steel works

Safety/Technical:
• Design Factor: 3:1
