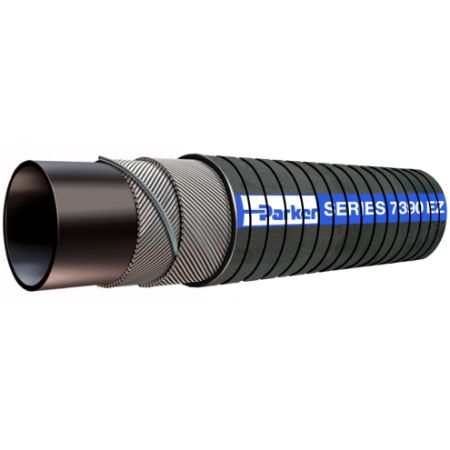

E-Z Form EPDM-P Hose, Series 7390
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's Series 7390 E-Z Form EPDM-P Hose is designed to handle extreme bends and kink-free performance, while providing full-flow capabilities. The highly engineered peroxide cured EPDM tube is designed to ensure fluid purity, thermal resistance, and superior sealing capabilities within thermal management systems. Further enhancing its durability, the synthetic rubber cover is specially compounded for flame resistance.
Markets:
• Thermal Management
• General Industrial
Features/Benefits:
• Tube: Peroxide cured EPDM
• Reinforcement: Multiple textile braids or plies for strength and durability, and a wire helix for full suction capability and a path to conduct a static charge to ground.
• Cover: Greek corrugated black synthetic rubber.
• Couplings: Qualified with new EZ Series crimp couplings for a durable, safe and secure connection.
• Lengths: 100-foot coils.
Applications:
- media
• Air
• Coolant
• Mild chemicals
• Water
• DI water and glycol based coolant solutions
Industry Standards:
• SAE J20R2-D1 performance:
• UL94 V-0 Flame Resistance Rating
Safety/Technical:
• Design Factor: 4:1
• Do not drag across sharp edges or highly abrasive surfaces.
Read More...
E-Z Form EPDM-P Hose, Series 7390 - 7390-1250100-BLYL
E-Z Form GS Greek Corrugated EPDM-P Hose is designed to ensure fluid purity, thermal resistance and superior sealing capabilities within thermal management systems. For DI water and water/glycol solution applications to 212°F and 150 psi, Series 7390
POR
E-Z Form EPDM-P Hose, Series 7390 - 7390-1250100-RLYL
E-Z Form GS Greek Corrugated EPDM-P Hose is designed to ensure fluid purity, thermal resistance and superior sealing capabilities within thermal management systems. For DI water and water/glycol solution applications to 212°F and 150 psi, Series 7390
POR
E-Z Form EPDM-P Hose, Series 7390 - 7390-1500100-BLYL
E-Z Form GS Greek Corrugated EPDM-P Hose is designed to ensure fluid purity, thermal resistance and superior sealing capabilities within thermal management systems. For DI water and water/glycol solution applications to 212°F and 150 psi, Series 7390
POR
E-Z Form EPDM-P Hose, Series 7390 - 7390-1500100-RLYL
E-Z Form GS Greek Corrugated EPDM-P Hose is designed to ensure fluid purity, thermal resistance and superior sealing capabilities within thermal management systems. For DI water and water/glycol solution applications to 212°F and 150 psi, Series 7390
POR
E-Z Form EPDM-P Hose, Series 7390 - 7390-2000100-BLYL
E-Z Form GS Greek Corrugated EPDM-P Hose is designed to ensure fluid purity, thermal resistance and superior sealing capabilities within thermal management systems. For DI water and water/glycol solution applications to 212°F and 150 psi, Series 7390
POR
E-Z Form EPDM-P Hose, Series 7390 - 7390-2000100-RLYL
E-Z Form GS Greek Corrugated EPDM-P Hose is designed to ensure fluid purity, thermal resistance and superior sealing capabilities within thermal management systems. For DI water and water/glycol solution applications to 212°F and 150 psi, Series 7390
POR
E-Z Form EPDM-P Hose, Series 7390 - 7390-3000100-BLYL
E-Z Form GS Greek Corrugated EPDM-P Hose is designed to ensure fluid purity, thermal resistance and superior sealing capabilities within thermal management systems. For DI water and water/glycol solution applications to 212°F and 150 psi, Series 7390
POR
E-Z Form EPDM-P Hose, Series 7390 - 7390-3000100-RLYL
E-Z Form GS Greek Corrugated EPDM-P Hose is designed to ensure fluid purity, thermal resistance and superior sealing capabilities within thermal management systems. For DI water and water/glycol solution applications to 212°F and 150 psi, Series 7390
POR
