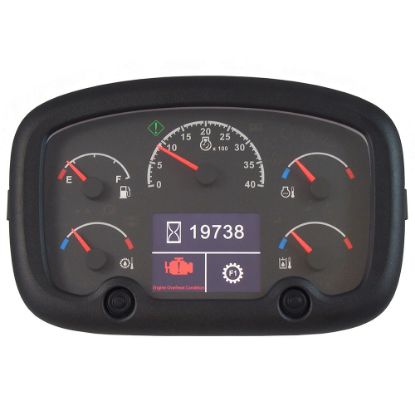

Parker’s DPS-C (Display Panel Standard, Construction) instrument cluster is an innovative user interface with small installation dimensions that makes complete vehicle information accessible in a single centralized location. By incorporating the DPS-C cluster, a wide range of mobile construction vehicles can be operated more efficiently for greater productivity.

This versatile instrument cluster supports two CAN communication channels, as well as USB. The DPS-C has inputs to measure analog, digital and frequency signals and outputs suited for hydraulic control, or general electrical control.
The DPS-C instrument cluster is ideal for various off-road vehicle applications, with 5 backlit gauges, up to 28 positions for status LEDs (tell-tales), and a 3.5” color LCD screen for operator messages. The robust enclosure has environmentally sealed, Molex MX150 type connectors and is designed to be used in rugged environments.

The DPS-C has a software development kit (SDK) that allows customers to develop their own software and the overlay may be customized, making the DPS-C perfect for any mobile application.

Markets:
• Construction equipment
• Transportation
• Agriculture machinery
• Material handling equipment

Features/Benefits:
• Monitors up to 24 inputs - analog, digital or frequency
• 5 gauges supported
• 28 status LEDs
• 3.5” color LCD screen
• 2 CAN buses

Applications:
• Excavator display panel
• Telehandler display panel
• Any type of mobile equipment operator display
