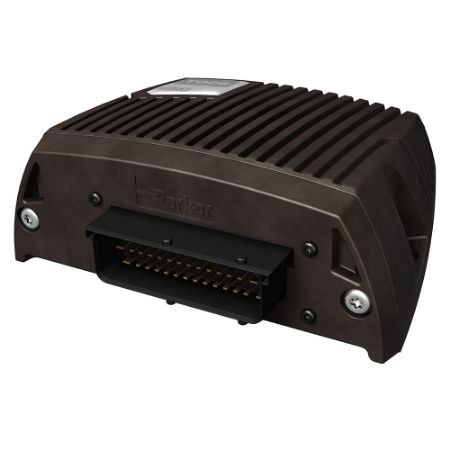

Parker’s IQAN-TOC8 is a legacy Task Oriented Controller product communicates with a variety of input and output devices. The unit is fully programmable to work as a standalone controller for controlling vehicle applications, and as an engine SAE J1939 CAN interface. The TOC8 connects to a PC and is programmed with IQANdevelop software. It has 2 proportional current outputs for valve control, 6 digital/PWM outputs for auxiliary functions and analog/digital inputs for signals like pressure, RPM or temperature.

The rugged aluminum housing and sealed automotive 42 pin connector make the IQAN-TOC8 an ideal controller for smaller outdoor systems in mobile equipment.

The IQAN-TOC8 is sold ‘empty’ (un-programmed) from Parker. The OEM can quickly and easily upload their various machine applications, making this unit perfect for field service replacement in existing equipment.

The IQAN-TOC8 is in phase-out status and is not recommended for new applications.

Markets:
• Construction equipment
• Forestry equipment
• Material handling equipment

Features/Benefits:
• Monitors system inputs and outputs
• Pulse Width Modulation for proportional valve control
• Easy program uploading reduces service part numbers needed
• Sealed for outdoor use

Applications:
• Truck mounted crane control
• Log loader control
• Flail mower attachments
