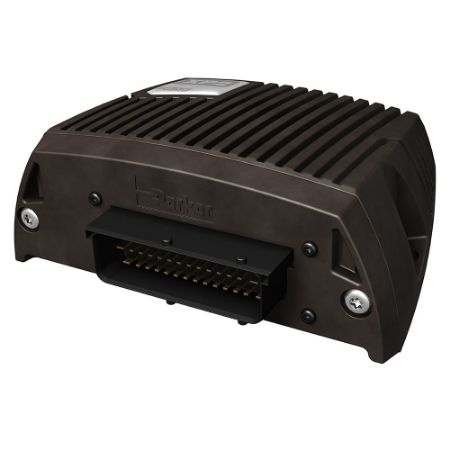

Parker’s IQAN-XP2 module is a legacy module in a collection of expansion (slave) controllers that can be added to an IQAN system. The rugged XP2 has 4 bidirectional, regulated current outputs for controlling proportional valves. It also has 4 digital outputs for on-off valves which can be configured as 4 single, or 2 bidirectional PWM (pulse width modulation) outputs for non-regulated control of proportional valves and devices. The IQAN-XP2 has inputs capable of measuring analog, digital and frequency signals. The I/O may be flexibly configured to meet any system need.

Its function is defined in the IQAN-MDM master unit’s program with the easy-to-use IQAN develop programming tools. The IQAN-XP2 communicates with the master over a CAN bus. Equipped with an aluminum housing and an environmentally sealed, 42-pin connector, this controller is designed for the outdoor environment.

With no programming required the IQAN-XP2 legacy expansion controller is perfect for field service replacement in existing equipment.

The IQAN-XP2 is in phase out status and is not recommended for new applications.

Markets:
• Construction equipment
• Transportation
• Agriculture machinery
• Material handling equipment

Features/Benefits:
• Monitors up to 4 inputs - analog, digital or frequency
• Pulse Width Modulation for proportional control of up to 6 valve sections
• Slave unit requires no programming
• Sealed for outdoor use
• CAN communication

Applications:
• Crane control
• Telehandler control
• Excavator control
