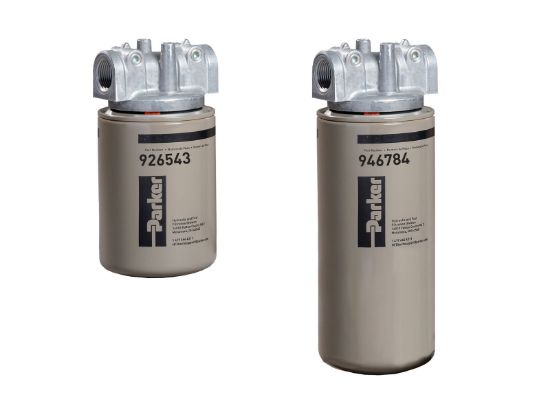

12AT Series Low Pressure Filter - 12AT10BN25MMH

Name: 12AT Series Low Pressure Filter - 12AT10BN25MMH
SKU: 12AT10BN25MMH

12AT Series Hydraulic and Lube Oil Low Pressure Filter

Availability:

Backordered

SKU 12AT10BN25MMH

POR

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Pkg Qty	1
Port	12 SAE	Operating Temperature	-40F to 225F (-40C to 107C)
Element Length	Single	Nominal Filter Rating	10 micron
Nominal Flow Rating	12 GPM (45 LPM)	Seals	Nitrile
Indicator Type	No Indicator	Bypass	25 PSI (1.7 bar)
Gauge Port Location	Inlet And Outlet - Both Sides	Max Pressure - Non-Fatigue MAOP	150 psi (10.3 bar)
Replacement Element	928763	Parker Group	Filtration
Parker Division	Hydraulic Filter	Series	12AT
Operating Temperature	-40F to 225F (-40C to 107C)	Port	12 SAE
Filter Media Code	10B	Filter Type	Low Pressure Filter
Nominal Filter Micron Rating	10 micron	Filter Media Type	Microglass
Element Length	Single	Port Type	SAE
Indicator Type	No Indicator	Bypass	25 PSI (1.7 bar)
Gauge Port Location	Inlet And Outlet - Both Sides	Seals	Nitrile
Max Pressure - Non-Fatigue MAOP	150 PSI (10.3 bar)	Nominal Flow Rating	12 GPM (45 LPM)

Product resources

12AT/50AT/80AT/80UT Series (PDF)
