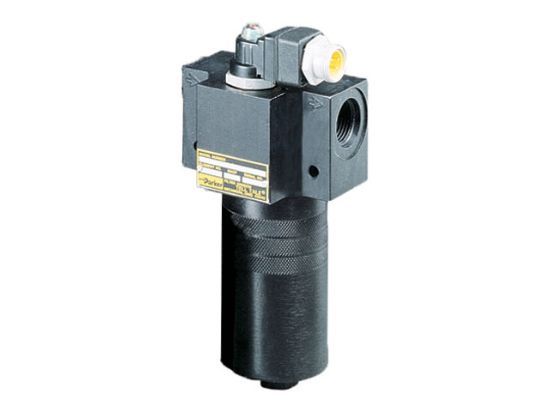

15P Series High Pressure Filter - 15P102QBPKS122

Name: 15P Series High Pressure Filter - 15P102QBPKS122
SKU: 15P102QBPKS122

15P Series Hydraulic and Lube Oil High Pressure Filter

Availability:

Backordered

SKU 15P102QBPKS122

POR

Qty:

Products specifications

Attribute name	Attribute value
Pkg Qty	1	UOM	EA
Port	12 SAE	Operating Temperature	-40F to 225F (-40C to 107C)
Element Length	Single	Nominal Filter Rating	2 micron
Nominal Flow Rating	10 GPM (38 LPM)	Seals	Nitrile
Indicator Type	Plugged Indicator	Bypass	50 PSI (3.5 bar)
Max Pressure - Non-Fatigue MAOP	3000 psi (206.9 bar)	Replacement Element	932610Q
Options	No Bypass	Max Pressure - Fatigue MAOP	2000 psi (138 bar)
Parker Group	Filtration	Parker Division	Hydraulic Filter
Series	15P	Operating Temperature	-40F to 225F (-40C to 107C)
Port	12 SAE	Filter Media Code	02Q
Filter Type	High Pressure Filter	Nominal Filter Micron Rating	2 micron
Filter Media Type	Microglass III	Element Length	Single
Port Type	SAE	Indicator Type	Plugged Indicator
Bypass	50 PSI (3.5 bar)	Seals	Nitrile
Max Pressure - Non-Fatigue MAOP	3000 PSI (206.9 bar)	Nominal Flow Rating	10 GPM (38 LPM)
Options	No Bypass	Max Pressure - Fatigue MAOP	2000 PSI (138 bar)

Product resources

15P/30P Series (PDF)
