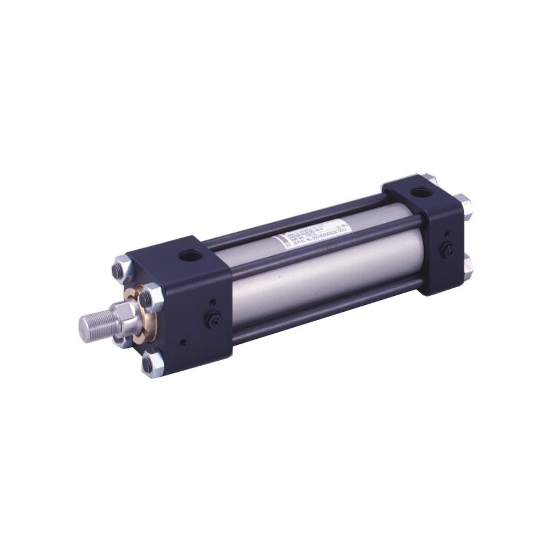

Picture of 16MPa Double Acting Hydraulic Cylinder Model:160H-1 - 160H-1D

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

16MPa Double Acting Hydraulic Cylinder Model:160H-1 - 160H-1D

The 160H-1 series is a 16MPa specification general-purpose hydraulic cylinder. Tie rod style sets the standard for superior performance, durability and trouble-free operation Design and quality that guarantees long cylinder life.
Availability:
Backordered
SKU 160H-1D
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
TypeGeneral purpose type, Double Acting Double Rod, Standard typeFluid TypePetroleum-based fluid(When using another fluid,give us such instructions.)
Rod SeriesRod BRelated PartsLock nut
Rod End StylesRod eye(T-end),Rod clevis(Y-end)with pinCushioning TypeMetal fitting system
Screw ToleranceJIS 6g/6HBellows Adapter MaterialStandard：Nylon tarpaulin Semi-standard：Chloroprene,Conex
Minimum Operating Pressure (MPa)Cap side:0.3 Rod side:0.45Body MaterialCarbon steel for machine structural use
Bore Diameter (mm)32, 40, 50, 63, 80, 100, 125, 140, 160Temperature Range (C)-10-+80 (No freezing)
Seal Material1:Nitrile rubber 2:Urethane rubber 6:HNBR 8:Combined sealSpeed Range8-400mm/s(φ32-63), 8-300mm/s(φ80-125), 8-200mm/s(φ140-160)
Mounting StyleSD,LA,EA,FA,TA,TCProof Pressure (MPa)24
Nominal Pressure (MPa)16Stroke Length Tolerance (mm)0-+0.8(0-100mm), 0-+1.0(101-250mm), 0-+1.25(251-630mm), 0-+1.4(631-1000mm), 10-+1.6(1001-1600mm), 0-+1.8(1601-2000mm)
Maximum Working Pressure (MPa)20DivisionTAIYO Division
