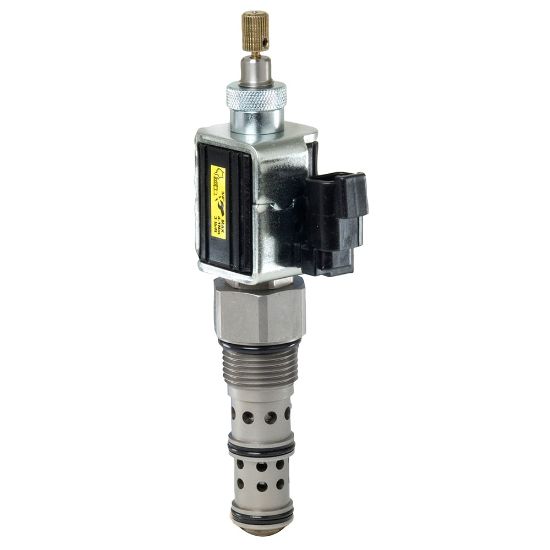

2 Way Flow Control Proportional Valves - DFA125C21SN

Name: 2 Way Flow Control Proportional Valves - DFA125C21SN
SKU: DFA125C21SN

Parker offers an extensive range of 2-way flow control proportional valves through the use of Current Controlled Pulse Width Modulation (PWM) valve drivers with flow capabilities up to 227 lpm (60 gpm) and pressures as high as 210 bar (3000 psi).

Availability:

Backordered

SKU DFA125C21SN

POR

Qty:

Products specifications

Attribute name	Attribute value
Flow Rate	15 GAL/MIN, 56.8 L/MIN	Seal Material	Nitrile
Configuration	Normally Closed, Pressure Compensated	Actuation Type	Electrical, Manual
Override Functionality	Infinite Control	Variation of Opening Point	N/A
Maximum Flow Rate	15.0	Connection Size	n/a
Division	Hydraulic Systems Division	Operating Temperature	-30 to +250
Wire Mesh Screen Included	No	Cavity Size	C12-3L
Power Consumption	28	Variation of Closing Point	N/A
Coil Nut Tightening Torque	3	Flow Rate	15
Minimum Operating Temperature	-30	Flow Direction	Side to Top (2 - 3)
Flow Rate Accuracy	N/A	Body Material	n/a
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Operation Type	Solenoid operated, Manually operated
Frequency	100-400	Configuration	Normally Closed, Pressure Compensated
Actuation Type	Electrical, Manual	Maximum Inlet Pressure Rating	3000
Seal Material	Nitrile	Valve Material	All parts steel. All operating parts hardened steel
Minimum Pressure Differential	300	Division	Hydraulic Valve Systems Division
Hysteresis	< 15%	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Current	Max: 2.33 @ 12 VDC, 1.17 @ 24 VDC	Maximum Operating Temperature	+250
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Weight	0.89
Function	Proportional Flow Control/Regulator	Connection Type	n/a
Coil Type	5/8" Super Coil High Watt (CAP)	Installation Torque	55
Maximum Operating Pressure	3000	Leak Rate	568 @ 3000 PSI (210 BAR)
