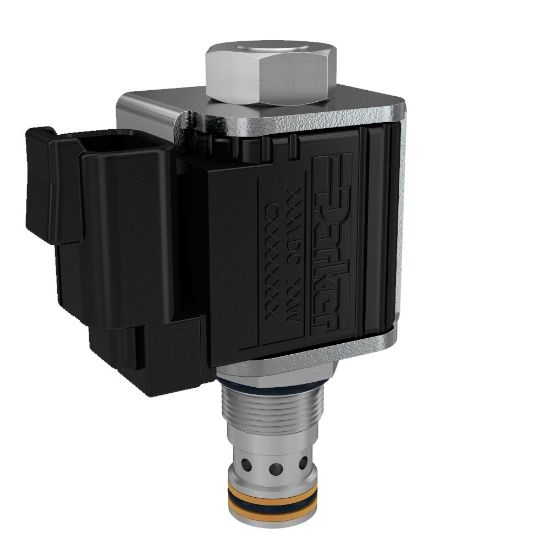

2 Way Flow Control Proportional Valves - HP02C2150V

Name: 2 Way Flow Control Proportional Valves - HP02C2150V
SKU: HP02C2150V

Parker offers an extensive range of 2-way flow control proportional valves through the use of Current Controlled Pulse Width Modulation (PWM) valve drivers with flow capabilities up to 227 lpm (60 gpm) and pressures as high as 210 bar (3000 psi).

Availability:

Backordered

SKU HP02C2150V

POR

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Fluorocarbon	Actuation Type	Electrical, Manual
Flow Rate	2.5, 3.5, 4, 6 GAL/MIN, 9.5, 13.3, 15, 22.8 L/MIN	Configuration	Normally Closed, Partially Pressure Compensated
Connection Size	n/a	Connection Type	n/a
Weight	0.17	Seal Material	Fluorocarbon
Body Material	n/a	Division	Hydraulic Valve Systems Division
Division	Hydraulic Systems Division	Flow Direction	Bi-directional
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-15
Maximum Operating Pressure	3000	Coil Nut Tightening Torque	3
Maximum Inlet Pressure Rating	3000	Actuation Type	Electrical, Manual
Function	Proportional Flow Control/Regulator	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Operation Type	Solenoid operated, Manually operated
Valve Material	All parts steel. All operating parts hardened steel	Wire Mesh Screen Included	No
Variation of Closing Point	N/A	Operating Temperature	-15 to +400
Frequency	100-400	Override Functionality	Infinite Control
Maximum Operating Temperature	+400	Installation Torque	15
Coil Type	1/2" Super Coil	Hysteresis	< 10%
Power Consumption	14, 19	Current	Max: 1.15 @ 12 VDC, 1.58 @ 12 VDC, 0.58 @ 24 VDC, 0.79 @ 24 VDC
Flow Rate	2.5, 3.5, 4, 6	Leak Rate	946 @ 3000 PSI (210 BAR)
Cavity Size	2X	Configuration	Normally Closed, Partially Pressure Compensated
Maximum Flow Rate	2.5, 3.5, 4, 6	Flow Rate Accuracy	Up to 20%
Variation of Opening Point	25% of Input Signal	Minimum Pressure Differential	N/A
